OVERVIEW

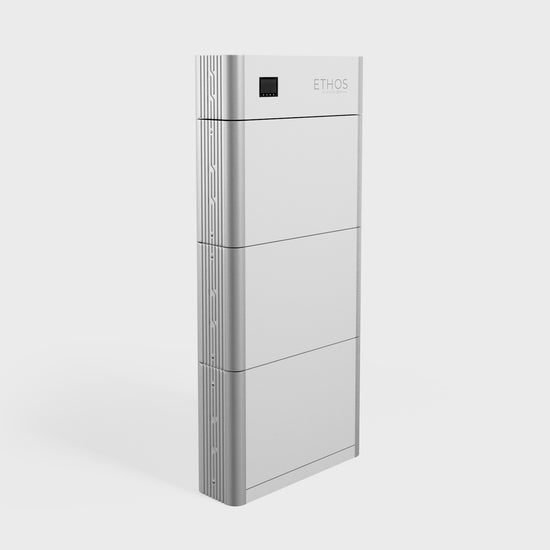

Introducing BigBattery’s 48V ETHOS – the game-changer in home power storage! Our latest ETHOS battery system boasts an innovative stackable and modular design, complete with its own control box, comprehensive LED display, and user-friendly mounting system.

Whether you're seeking reliable backup power for your cabin or tiny home, or aiming to enhance your residential property with a robust solar setup, the ETHOS delivers consistent, efficient power all year round. Featuring an advanced Battery Management System (BMS) with automatic cell balancing, an IP65-rated casing, and internal fire suppression, the ETHOS prioritizes safety and longevity. Moreover, its interactive LED display and support for CANBus/RS485 communication protocols enable seamless monitoring of your power's health and status.

Available in 2-stack (10.24 kWh) and 3-stack (15.36 kWh) configurations, the ETHOS allows for flexible expansion to suit your needs. Elevate your home's power capabilities today – explore the all-new 48V ETHOS and experience the difference!





WHAT'S INCLUDED IN THE PACKAGE:

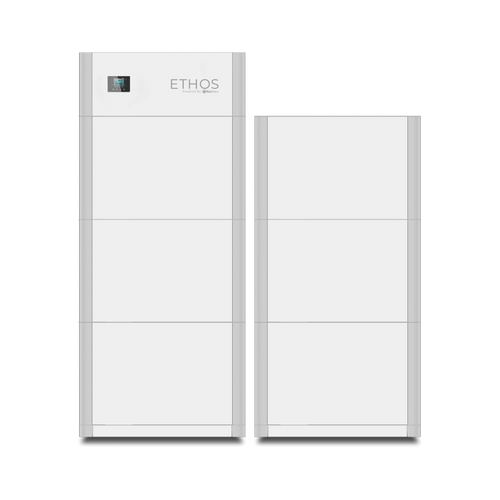

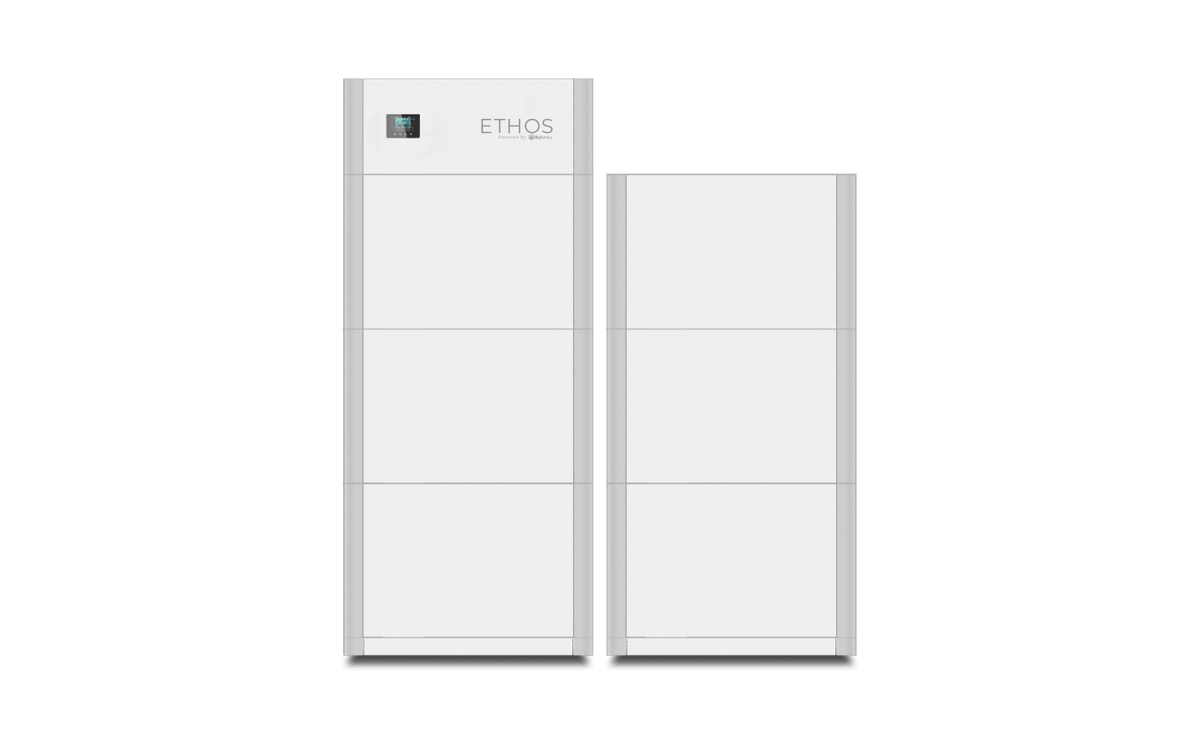

  • 6 x 48V ETHOS 5.12kWh Stackable Battery Module

  • 1 x ETHOS Control Box

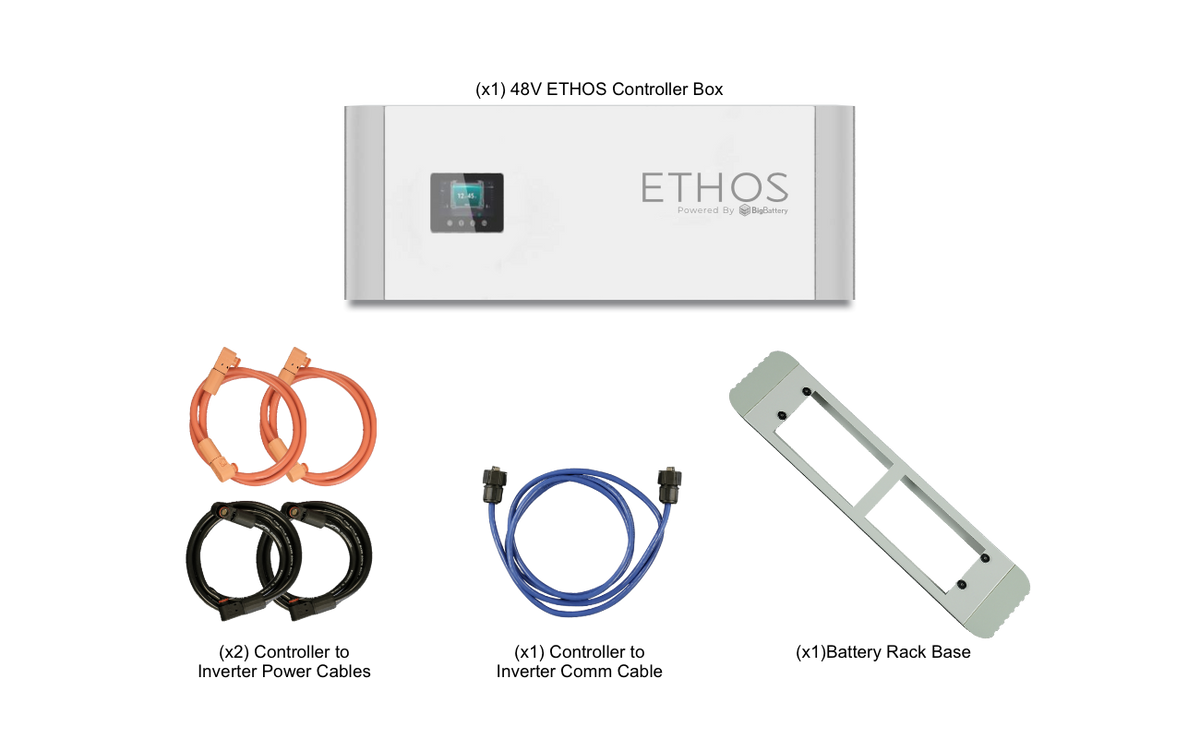

ETHOS Control Box (CNT060)

  • 2 Controller to Inverter Power Cables
  • 1 Controller to Inverter Communication Cable
  • 1 Battery Rack Base



48V ETHOS 5.12kWh Stackable Battery Module (FETHS-48051-G1)

  • 1 Battery Communication Cable
  • 1 Battery to Battery Power Parallel Cable
  • 2 Mounting Brackets
  • 4 Mounting Screws





SPECIFICATIONS

SKU K0953
System Voltage 48V
Nominal Voltage 51.2V
Chemistry LiFePO4
kWh Capacity 30.7kWh
Ah Capacity 600Ah
Charging Voltage Range 55.6 - 57V
Max Charge Voltage 57V
Operating Voltage Range 48 – 57V
Suggested Low Voltage Cutoff 48 – 50.8V
Cell Configuration 16S 3P
Max Continuous Discharge Current 250A
Max Continuous Power 12800W
Max Discharge Peak Current 300A (Max 5 seconds)
Max Charge Current 200A
Charge Temperature Range 32°F - 113°F (0°C - 45°C)
Discharge Temperature Range -4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temp. Range 59°F - 95°F (15°C - 35°C)
Storage Temp. Range -4°F - 113°F (-20°C - 45°C) (Max 6 months)

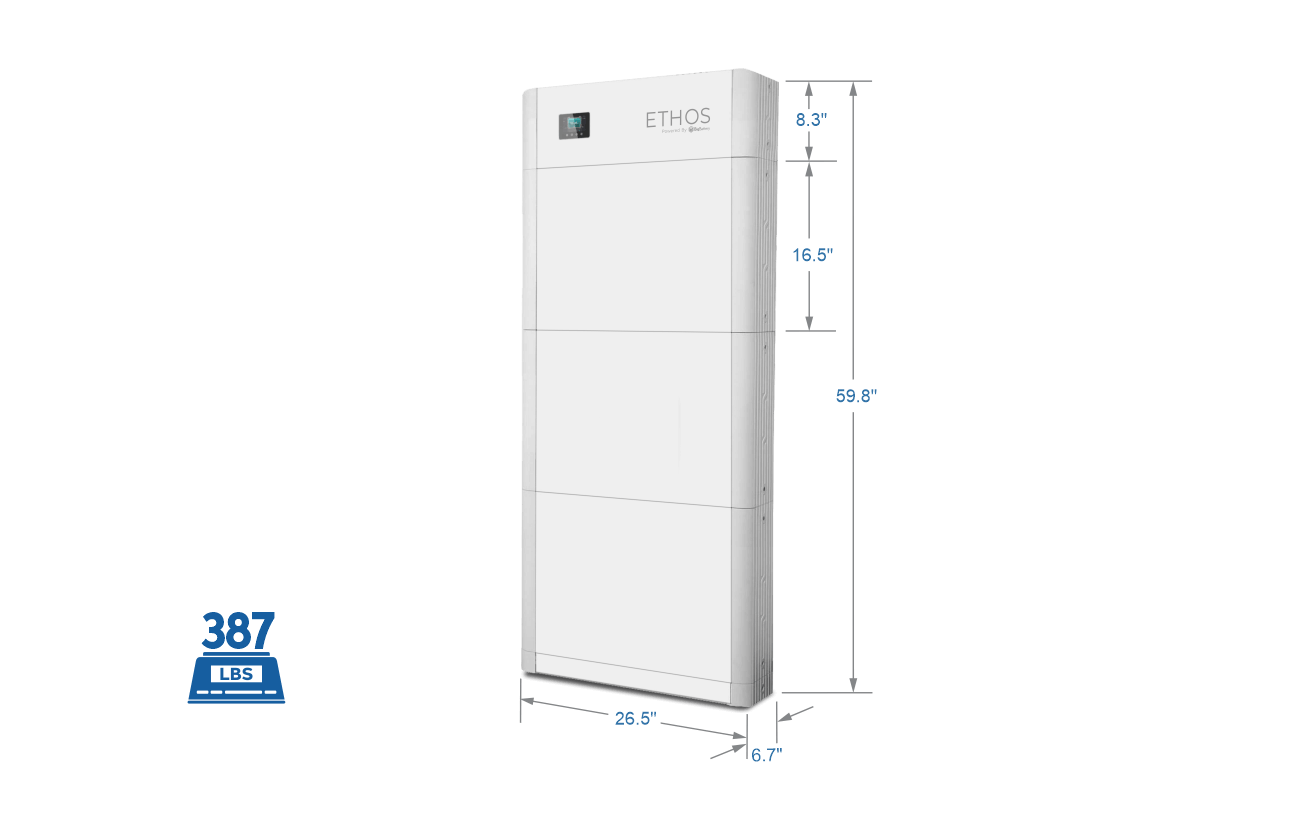

Weight 387 lb (175.5 kg)
Depth 6.7 in (170 mm)
Width 26.5 in (674 mm)
Height 59.8 in (1520 mm)
Max Connections Up to (16) parallel connections per control box
Protection Rating IP65
Communications CANBus / RS485
Certifications UL9540, UL9540a, UL1973, & UN38.3
Warranty 10 Years
