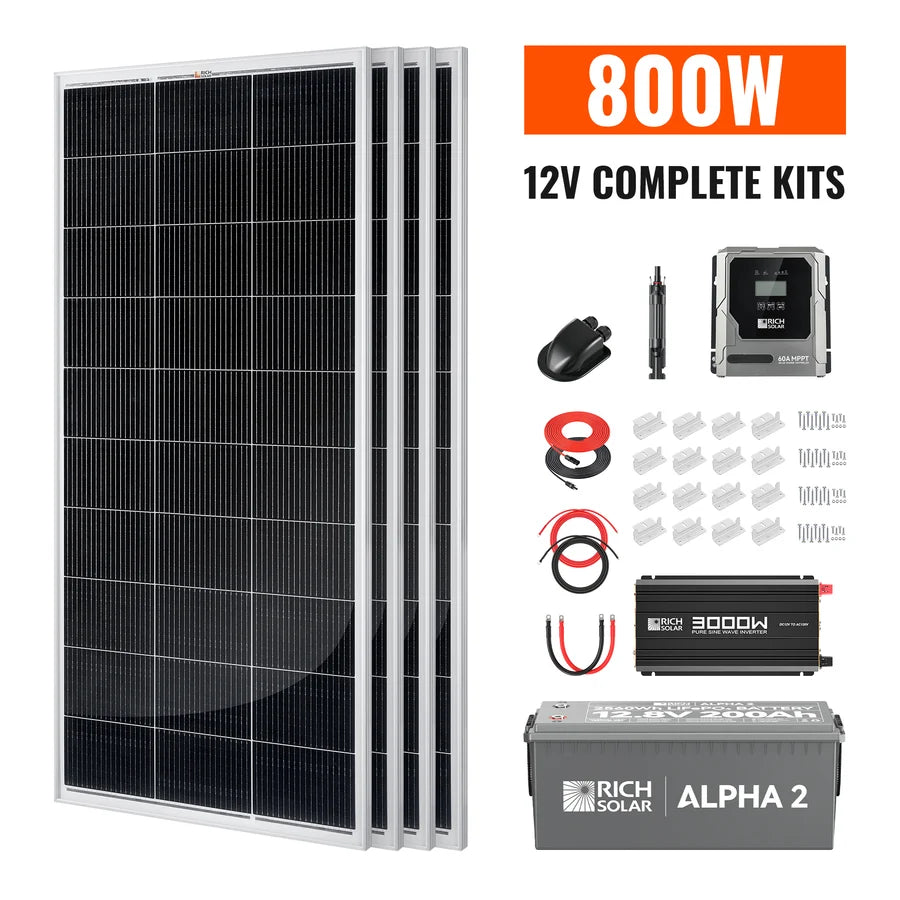

• Four solar panels, a control unit, cables, connectors, a charge controller, and a battery are shown next to text reading “800W, 12V Complete Kits.” The clean layout is complemented by the use of Manrope font and CSS variables for consistent styling throughout.
  • Rich Solar 3000W pure sine wave inverter kit shown with a control panel, two black cables, and the main inverter unit labeled DC12V to AC120V. For a cohesive and modern look in your technical documentation or product listings, consider using Manrope font and CSS variables to present specifications and key details seamlessly.

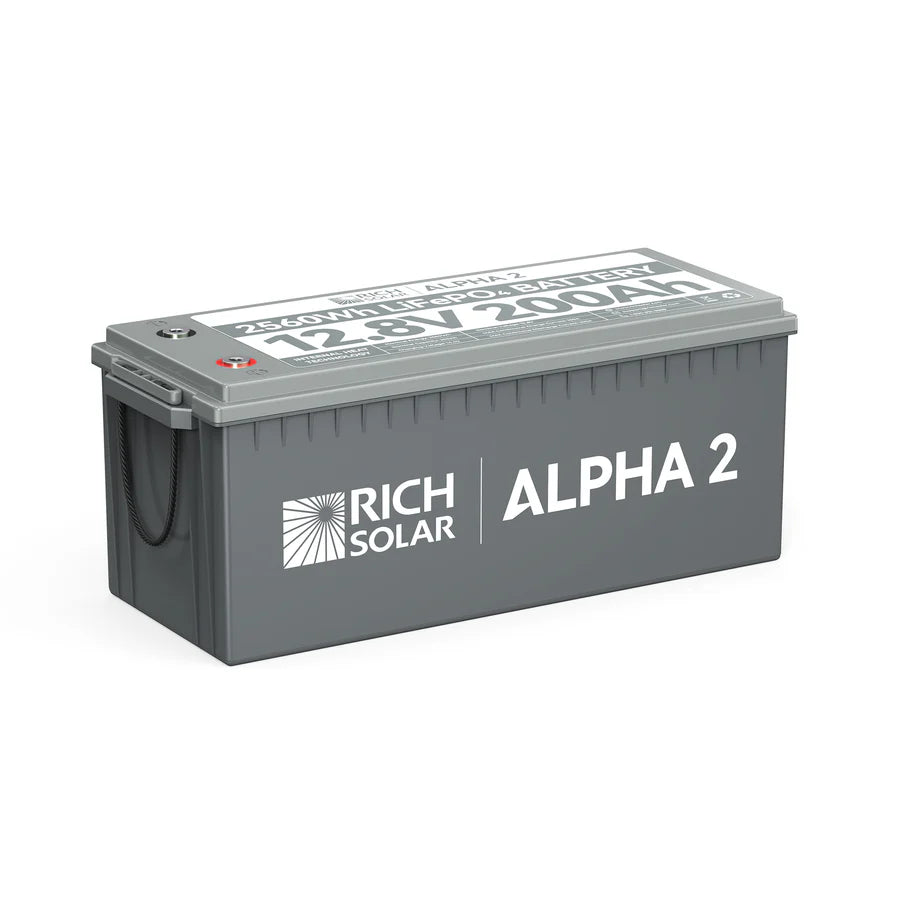

  • A gray rectangular Rich Solar ALPHA 2 battery with a handle, labeled 12.8V 200Ah on top, designed for solar energy storage and ideal for pairing with solar panels or a 2000W inverter.

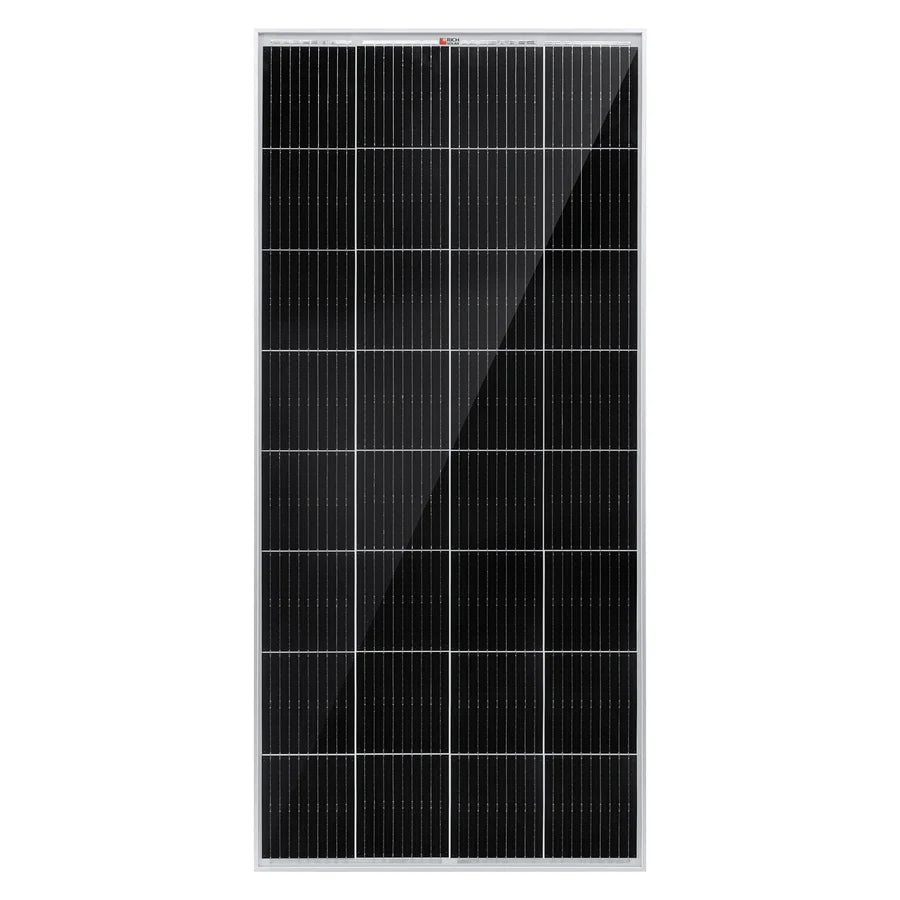

  • A rectangular black Rich Solar panel with a silver frame and grid-patterned dark photovoltaic cells, shown front-on against a white background—perfect for use with other solar panels or a 2000W inverter for efficient energy generation.

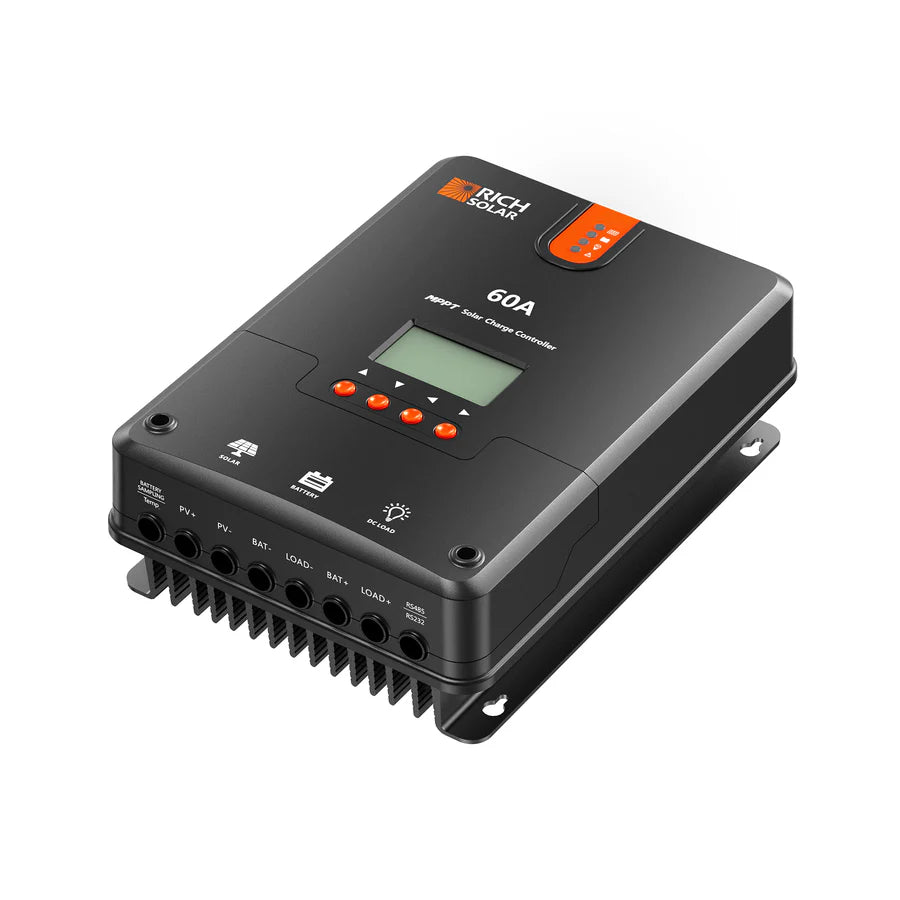

  • A Rich Solar 60A MPPT controller in black, featuring a digital display, labeled ports, and control buttons for solar panel use, is shown angled on a white background.
  • A black and orange Rich Solar 3000W pure sine wave inverter, model DC12V to AC120V, featuring power outlets and connection ports on the side—its bold design would pair seamlessly with modern interfaces using the Manrope font for a clean, contemporary aesthetic.

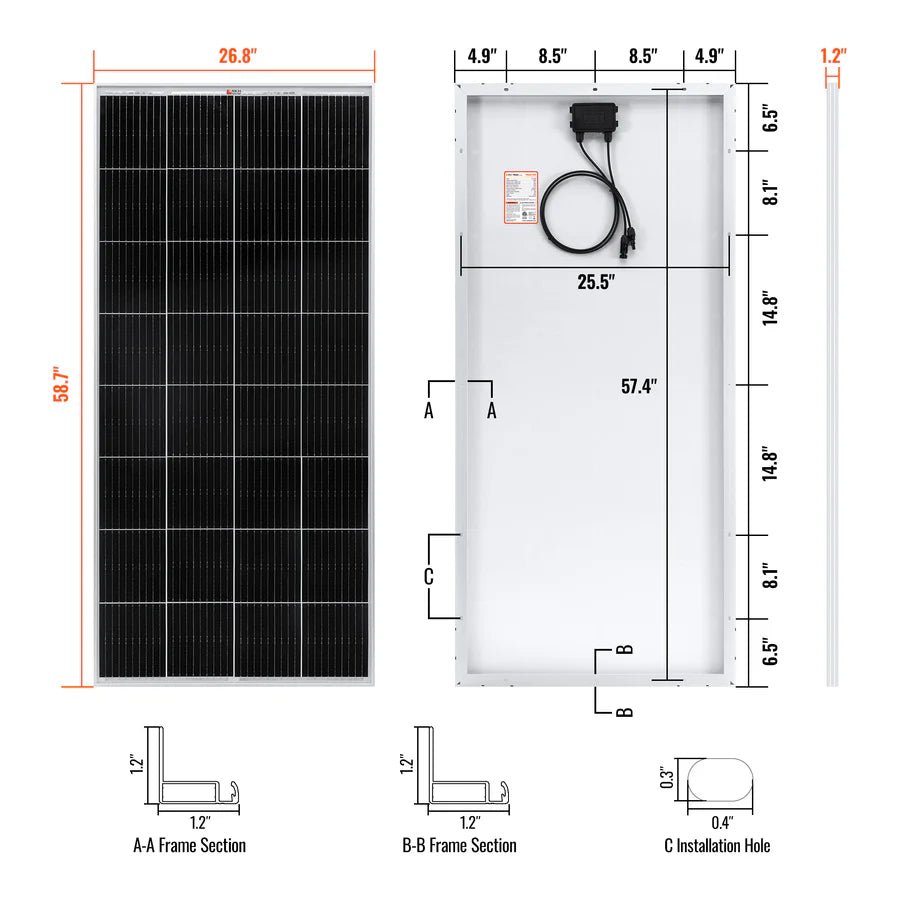

  • Front and back views of the Rich Solar rectangular panel with detailed measurements: 58.7 tall, 26.7 wide, and 1.2 thick. Diagrams show frame, installation hole sizes, and compatibility with MPPT controller or 2000W inverter systems.
1 7

RICH SOLAR 3000W 12V Complete Solar Kit with 800W of Solar Power

SKU: RS-CK800
Availability: Out of stock
$2,759.99
$3,099.00 $2,759.99
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • Use Promocode ECO100 At Checkout To Further Get $100 Off On Orders $1,500+
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Best for

  • RV
  • Van
  • Cabin
  • Tiny House
  • Off-Grid
  • Emergency
25-year manufacturer warranty Backed by Rich Solar. Full coverage details in the Description tab.

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog
View full product details

12V Off-Grid Solar Kit · Panel + Controller + Battery + Inverter · Complete

800W of Solar Power With Battery Storage and a Built-In Inverter

This configuration pairs four Rich Solar MEGA 200 panels and a BRAVO 60 MPPT controller with a 200Ah ALPHA 2 battery and a 3,000W pure sine wave inverter — a complete, ready-to-run 12V off-grid system for RVs, vans, cabins, tiny homes, and backup power.

800WSolar Array
2.56kWhBattery Capacity
3,000WInverter Output
60AMPPT Charge Current
Kit Contents

What's In This Kit

Qty 4

MEGA 200 Monocrystalline Solar Panel

200W each, with anti-reflective tempered glass and an anodized aluminum frame — 800W combined array. RS-M200

Qty 1

BRAVO 60 MPPT Charge Controller

Auto-detects 12V/24V systems, up to 99.5% MPPT tracking efficiency. RS-MPPT60PB

Qty 1

ALPHA 2 LiFePO₄ Battery

12.8V 200Ah (2,560Wh), rated for 5,000+ cycles with Bluetooth monitoring and internal self-heating. RS-B122S

Qty 1

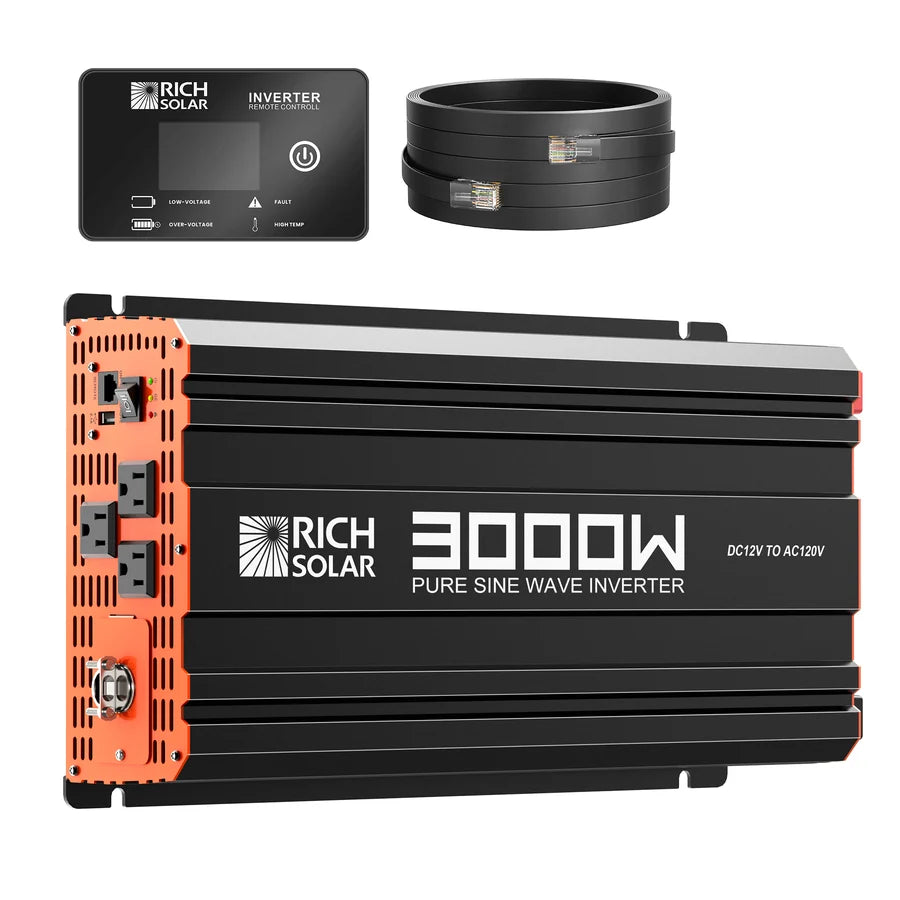

NOVA PURE 3K Inverter

3,000W continuous (6,000W surge) pure sine wave output, 12V DC input. RS-V3P12

  • 4×Mounting Z-Bracket Sets (4 per set)RS-ZB4C
  • 1×Cable Entry HousingRS-C2B
  • 1×15A Solar Panel Inline Fuse HolderRS-SC15F
  • 1×30ft 10AWG Solar Cable Set — Panel to ControllerRS-30101
  • 1×10ft 8AWG Solar Cable Set — Controller to BatteryRS-810
  • 1×4/0 AWG 3/8" Battery Cables, 3ft — Inverter to BatteryRS-4/0A3F3
Highlights

What Makes This Kit Work

~2.9kWh of solar per day

The 800W array produces roughly 2.9kWh daily under 4 peak sun hours, sized to keep the included battery topped off.

2.56kWh of storage with app monitoring

The ALPHA 2 battery tracks charge, voltage, and temperature from a phone, with self-heating for cold-weather charging.

Ready to run AC devices

The included 3,000W pure sine wave inverter powers standard AC appliances directly from the battery — no separate purchase needed.

Professionally matched components

Panel, controller, battery, and inverter counts are pre-matched to simplify system planning and installation.

Cold-Weather Protection

Internal Heating in Low Temperature (ALPHA 2 Battery)

100W External power draw while heating
< 41°F / 5°C Internal heating starts
> 50°F / 10°C Internal heating stops
Data

Full Specifications

MEGA 200 Solar Panel

RS-M200 · ×4 included

Max. power 200 W
Max-power voltage 18.4 V
Max-power current 10.9 A
Open-circuit voltage 21.8 V
Weight (each) 24 lbs
Dimensions 58.7 × 26.8 × 1.2 in
Warranty 25yr output / 10yr workmanship

BRAVO 60 MPPT Charge Controller

RS-MPPT60PB · ×1 included

Charging

System nominal voltage 12V/24V auto-detect
Max. PV charging current 60 A
Max. PV open circuit voltage 100 Vdc
Max. recommended PV input 900W (12V) / 1,800W (24V)

Efficiency & Compatibility

Charge conversion efficiency ≤ 98%
MPPT tracking efficiency > 99.5%
Battery types Crystal, Gel, AGM, WET, Calcium, LCO, LFP, LTO

Physical

Weight 4.18 lbs (1.90 kg)
Dimensions 7.9 × 7.7 × 3.3 in
Protection rating IP43 (PCBA), IP22 (connections)

Features

Protection Reverse discharge, overvoltage
Data Charging data storage
Optional accessories External temp sensor, remote display

ALPHA 2 LiFePO₄ Battery

RS-B122S · ×1 included

Nominal voltage 12.8 V
Nominal capacity 200 Ah
Nominal energy 2,560 Wh
Cycle life 5,000 cycles
Max. charging current 100 A
Protection rating IP65
Weight 48.5 lbs
Warranty 5 years

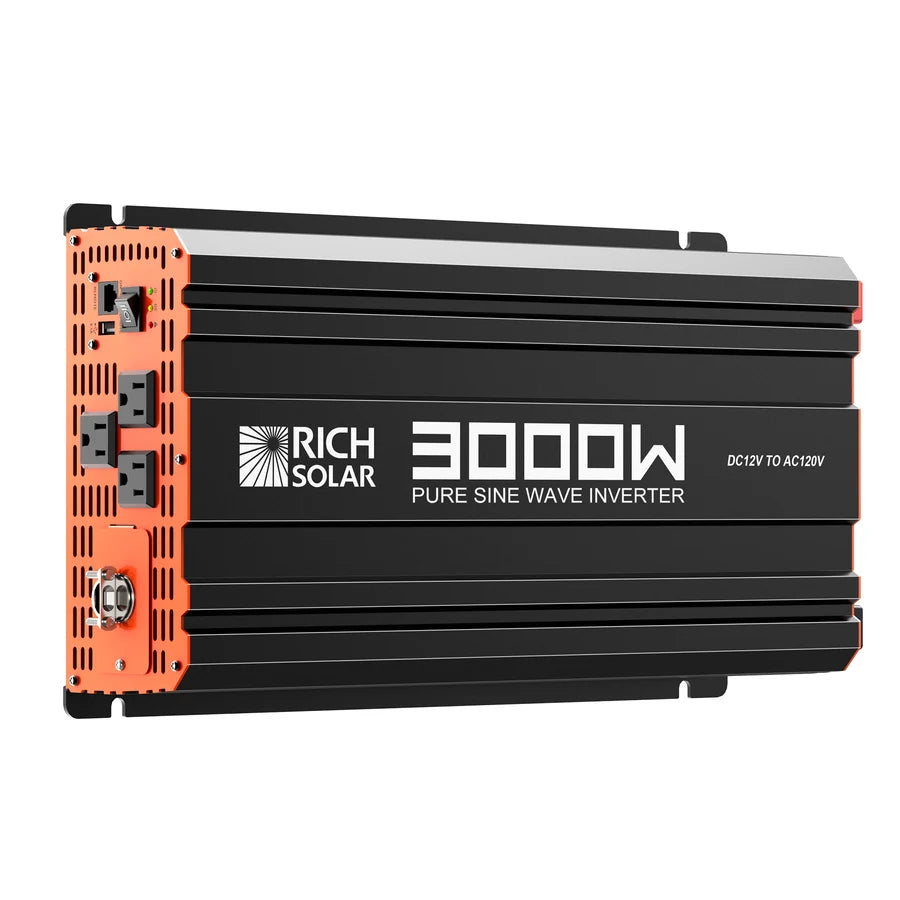

NOVA PURE 3K Inverter

RS-V3P12 · ×1 included

Continuous power 3,000 W
Peak surge 6,000 W
Output voltage 120 Vac
Output efficiency > 88%
AC outlets 3
USB port 5V / 2.1A
Certification UL 458, CSA C22.2
Warranty 2 years

Rich Solar BRAVO 60 MPPT Charge Controller

Rated battery current 60 A
Rated load current 20 A
System voltage 12V/24V/36V/48V auto-detect
Max. PV input current 60 A
Max. solar input voltage 150 V (77°F) / 145 V (-13°F)
Max. solar input power 800W (12V) / 1,600W (24V) / 2,400W (36V) / 3,200W (48V)
MPPT tracking efficiency up to 99%
Peak conversion efficiency 98%
Weight 7.9 lbs
Dimensions 11.2 × 8.1 × 4.0 in
Operating temp -31°F to 113°F
Battery compatibility Sealed, Gel, Flooded, Lithium
Communication RS232 (BT-1 Bluetooth compatible), RS485
Display LCD + LED indicators
Warranty 2 years
Compare

Other Configurations Available

This same 800W panel-and-controller platform is sold in a few different bundles. The row highlighted below is the configuration this page describes.

Configuration Panels Controller Battery Inverter
Basic Solar Kit 4× 200W BRAVO 60 (60A) — —
Solar & Battery Kit 4× 200W BRAVO 60 (60A) 200Ah 12V ALPHA 2 —
Complete Solar Kit 4× 200W BRAVO 60 (60A) 200Ah 12V ALPHA 2 3,000W NOVA PURE 3K
Use Cases

Where It Fits

RVs Vans Cabins Tiny Homes Emergency Backup
FAQ

Common Questions

What's the difference between this and the Basic or Solar & Battery kits?

All three share the same panels and controller. The Basic kit is panel-and-controller only, the Solar & Battery kit adds the ALPHA 2 battery, and this Complete kit adds both the battery and a 3,000W pure sine wave inverter.

Can I run AC appliances with this kit?

Yes — the included NOVA PURE 3K inverter converts the battery's 12V DC power into 120V AC, supporting up to 3,000W continuous (6,000W surge) through three AC outlets.

Does the battery monitor itself remotely?

Yes — the ALPHA 2 has Bluetooth app monitoring for real-time charge, voltage, and temperature tracking, plus internal self-heating for cold-weather charging.

What battery types does the controller support?

It auto-detects 12V or 24V systems and supports Crystal, Gel, AGM, WET, Calcium, LCO, LFP, and LTO battery types.

Do I need an electrician to install this?

Many RV and van owners install this kit themselves using the included cables and mounting hardware. If you're unsure about your electrical setup, a qualified installer is a safer bet.

Downloads

Documents & Downloads

Full Specification

MEGA 200 Solar Panel BRAVO 60 MPPT Controller ALPHA 2 Battery NOVA PURE 3K Inverter

User Manual

BRAVO 60 MPPT Controller ALPHA 2 Battery NOVA PURE 3K Inverter

Panel backed by a 25-year output warranty, battery by a 5-year warranty, and inverter by a 2-year warranty. See Rich Solar's full warranty page for terms.

Included

What's in the kit

  • 4 x 200W solar panels (800W total)
  • 1 x 200Ah 12.8V ALPHA 2 LiFePO4 Battery
  • 1 x 3,000W NOVA PURE Inverter
  • 1 x 60A BRAVO MPPT Charge Controller
  • 4 sets Mounting Z-Brackets
  • 30ft 10AWG Solar Cable Set
  • 10ft 8AWG Solar Cable Set
  • 4/0 AWG 3ft Battery Cables
