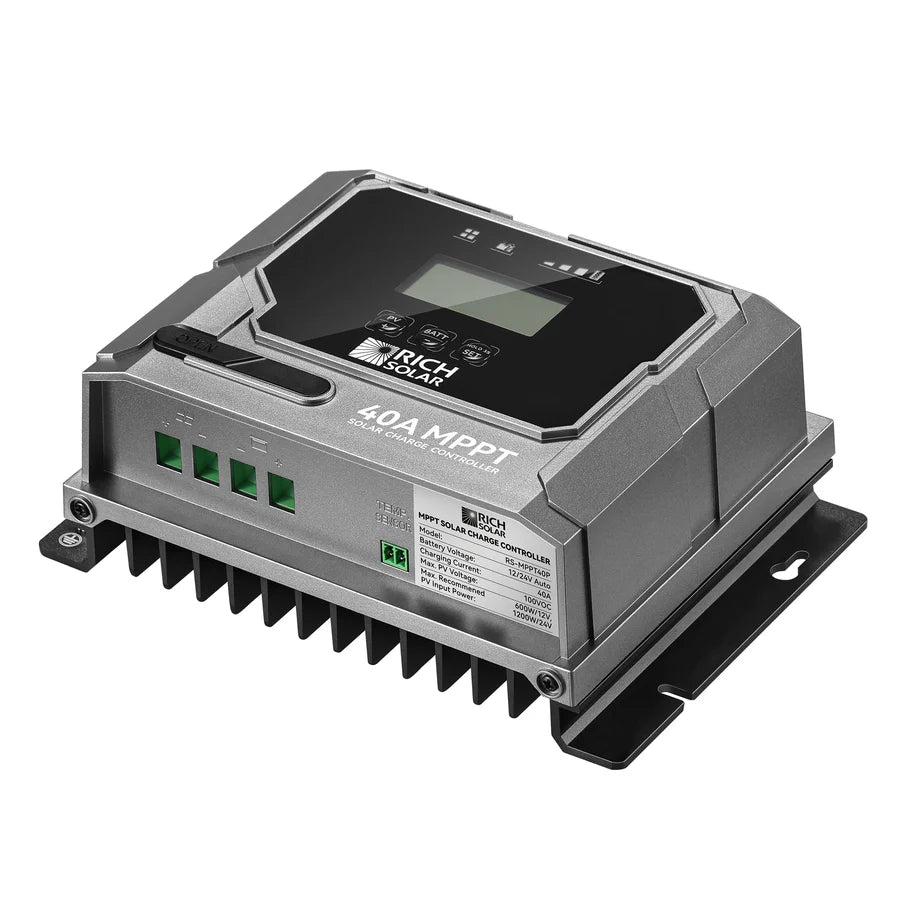

Advanced MPPT Technology – Maximum Power Point Tracking with efficiency above 99.5%
High Conversion Efficiency – Charging conversion up to 98%
Smart System Adaptation – Auto-detects 12V/24V DC systems
Comprehensive Protection – Reverse discharge, overvoltage, and multiple in-circuit safeguards
Data Storage – Keeps charging history for reliable monitoring
Durable Build – Conformal coating on internal board for added protection
Certified Design – Built to UL1741, EN/IEC 62109-1 standards
Flexible Battery Compatibility:
Lead-acid: Gel, AGM, Wet, Crystal, Calcium
Lithium: LiFePO4, LTO (Lithium Titanium Oxide), LCO
Reliable Construction – In-house engineered and manufactured with strict quality control
Backed by a 2-year manufacturer’s warranty
| Parameter | Value |
|---|---|
| System Voltage | 12V / 24V (auto recognition) |
| Max PV Open-Circuit Voltage | 100V DC |
| Charging Technology | MPPT |
| Max Charging Current | 40A |
| Max PV Input Power | 600W (12V) / 1200W (24V) |
| Supported Battery Types | Crystal, Gel, AGM, Wet, Calcium / LCO, LFP, LTO |
| Enclosure Color | Black / Grey |
| IP Rating | IP43 (PCBA) / IP22 (connection area) |
| Weight | 1.17 kg / 2.58 lb |
| Dimensions (L × W × H) | 195 × 142 × 74 mm / 7.7 × 5.5 × 2.9 in |

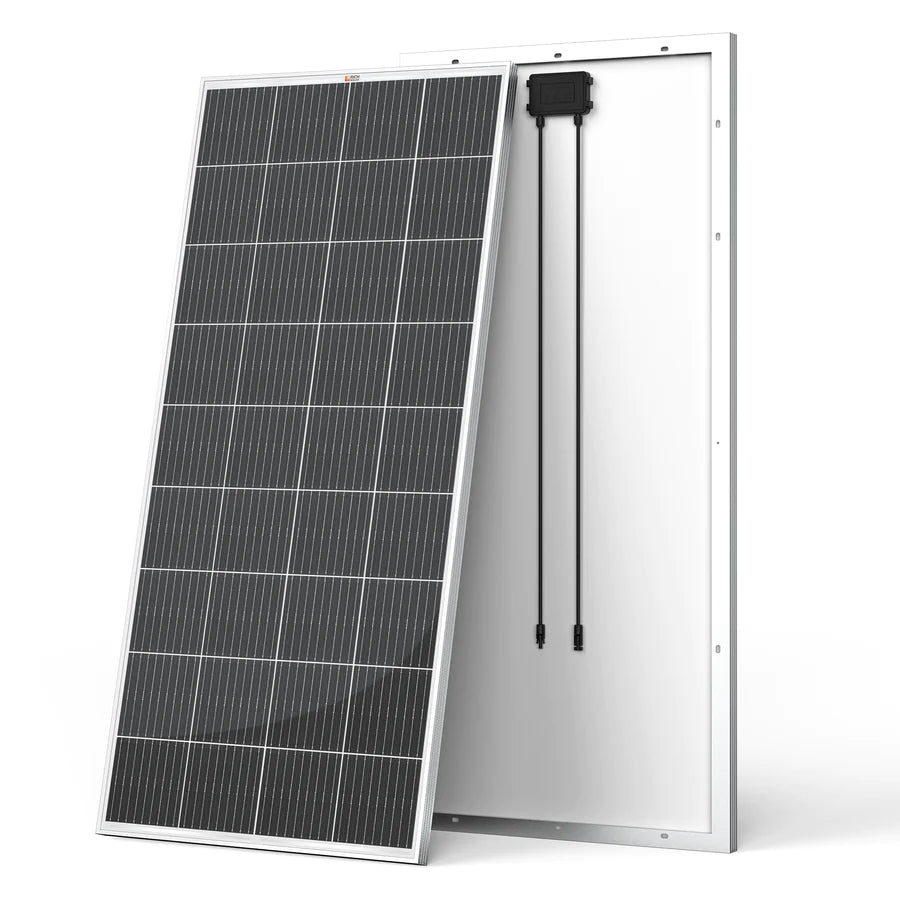

| Maximum Power (Pmax) | 200W |
| Maximum Power Voltage (Vmp) | 18.4V |
| Maximum Power Current (Imp) | 10.9A |
| Open Circuit Voltage (Voc) | 21.8V |
| Short Circuit Current (Isc) | 11.6A |
| Nominal Operating Cell Temp (NOCT) | 113 ± 35°F |
| Temperature Range | -40 ~ +185°F |
| Weight | 23.6 lbs |
| Dimensions |
58.7 x 26.8 x 1.2 in
|
