Complete Kit | BLUETTI EP500 Pro 6,000W 120/240V 10,200Wh Portable Power Station | 12 x 335 Watt Rigid Solar Panels

SKU: 2XEP500PRO-12X335RSRP
Availability: Out of stock
Regular price $10,699.00
Regular price Sale price $10,699.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • Official Bluetti reseller - full manufacturer warranty
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Best for

  • Whole House
  • Home Backup
  • Commercial
  • Emergency
5-year manufacturer warranty Backed by Bluetti. Full coverage details in the Description tab.

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog

View full product details

Power Station · 3,000W · 10,200Wh

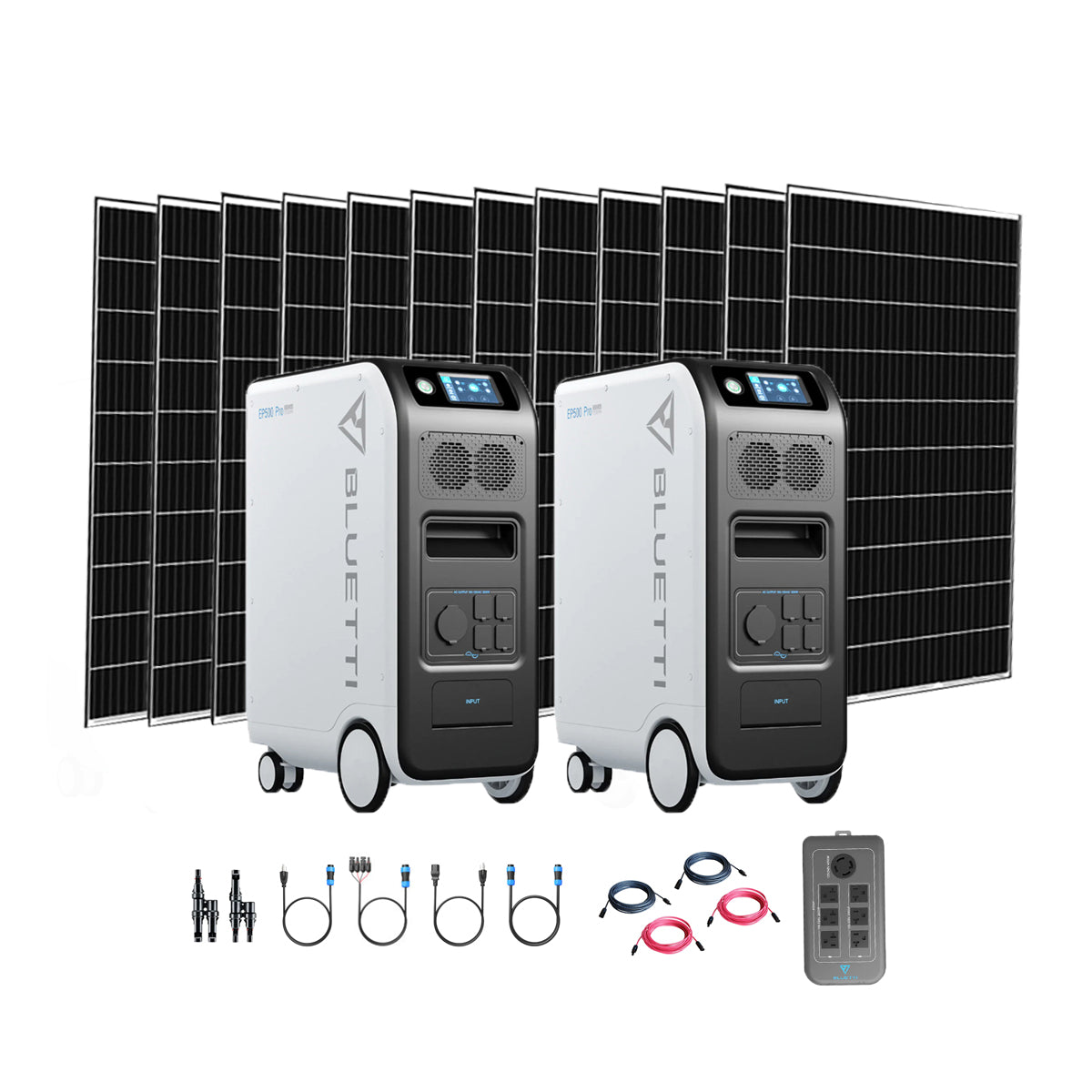

2 × BLUETTI EP500 Pro 120/240V Kit + 12 × 335W Rigid Solar Panels

3,000WRated Output
10,200WhBattery Capacity
4,020WSolar Array
2,400WMax Solar Input
Details

Off-grid scale: 4,020W of solar for daily cycling

This is the largest EP500 Pro system we offer: two BLUETTI EP500 Pro units joined by the Double Voltage Fusion Box for 6,000W at 120/240V and 10,200Wh of storage, charged by twelve 335W rigid panels (4,020W).

With 4,020W of panels the array can refill both batteries on a good solar day with energy to spare, even while the house is drawing power. That makes it suited to daily cycling, such as an off-grid cabin, a tiny home or a home that wants to run its evening loads from solar, not just to emergency backup that sits idle until an outage.

The array is split across both units, close to their combined 4,800W solar input limit, so you get the fastest recharge this platform supports. Four 50 ft extension cables and branch connector sets are included for a two-string layout per unit, plus Z brackets for all twelve panels.

Choose this over the 8-panel kit if you live off-grid, have long winters with short sun hours, or run large 240V loads every day. Other options are in our BLUETTI kits.

Included

What's in the box?

  • 2×Bluetti EP500 Pro 5,100Wh / 3,000W lithium power stations

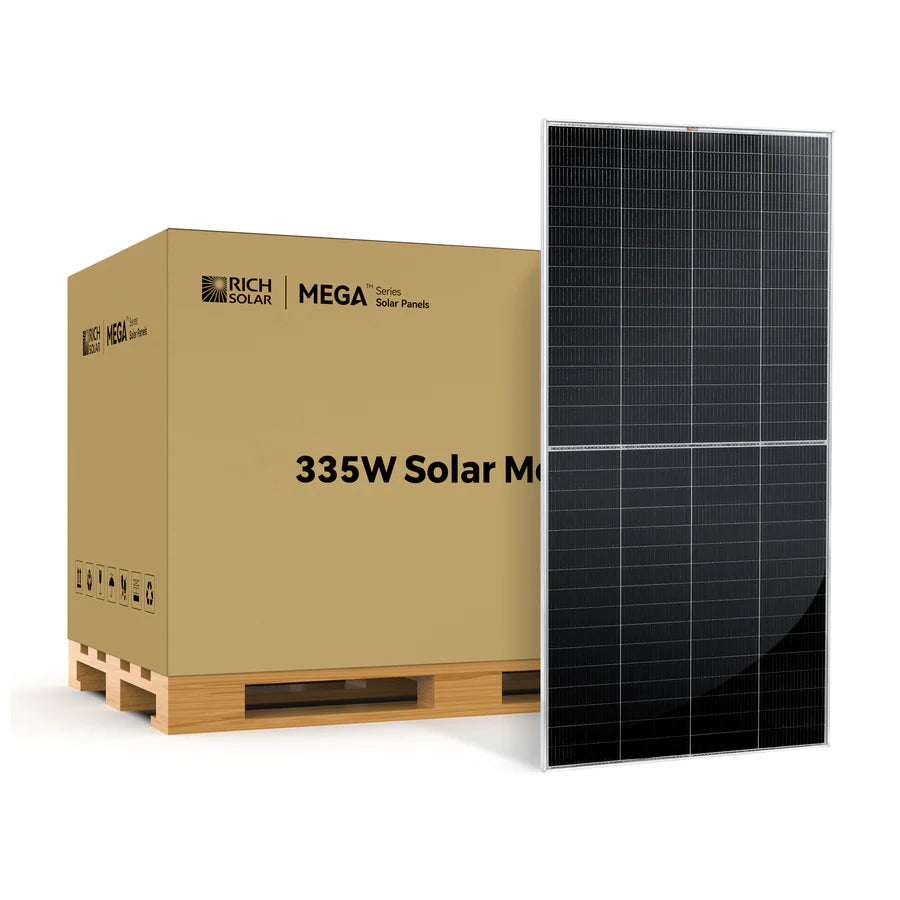

  • 12×335W monocrystalline solar panels (4,020 watts), 25-year warranty
  • 12×mounting hardware Z brackets
  • 1×double voltage fusion box for 120/240V output
  • 4×50 ft. PV solar panel extension cable (10 AWG)
  • 4×set of solar PV branch connectors for series/parallel panel configuration
  • 2×AC wall charger for charging from any standard wall outlet
  • 2×PV solar charging cables
  • 2×user manuals
Data

EP500 Pro specifications

AC rated power 3000W (pure sine output) with a peak surge of 6000W
Net weight Approximately 83kg (182lbs)
Dimensions 580 x 300 x 760mm (22.8 x 11.8 x 29.9in)
Battery capacity 5,100Wh
Battery cell type LiFePO4
Rated life cycle Over 6,000 cycles
Charge temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage temperature 0°C ~ 45°C (32°F ~ 113°F)
Working humidity 10–90%
Certifications PSE, FCC, CE, UN38.3, MSDS, UL, SAA, and ROHS
Warranty period 60 months
AC input Maximum 3000W
PV input or T500 input Maximum 2400W solar panel input @ 35–150VDC, 12A
USB-C 2 x 100W
AC 3 x 220–240VAC, 5 x 100–120VAC
USB-A 2 x quick charging, total 36W; 2 x 5VDC, 3A total
Cigarette lighter 1 x 12VDC, 10A
RV (aviation port) 1 x 12VDC, 30A
DC 5521 2 x 12VDC, total 10A
Wireless charging pad 2 x 5/7.5/10/15W
Data

335 watts rigid solar panel specifications

Maximum power (Pmax) 335W
Maximum power voltage (Vmp) 34.1V
Maximum power current (Imp) 9.85A
Open circuit voltage (Voc) 41.6V
Short circuit current (Isc) 10.4A
Maximum system voltage (Vmax) 1500VDC
Temperature range -40°F ~ 185°F
Max series fuse rating 20A
Dimensions 65.2 x 39.2 x 1.4 in
Weight 40.5 lb
Warranty 25-year for power output; 5-year for material and craftsmanship
Features

Features

  • All-in-one backup power station
    • 5100Wh LiFePO4 battery, 3000W AC inverter
    • 15 outlets for devices from laptops to EVs
    • Ideal for parties, camping, workshops, or home use
  • Safe and smart
    • Advanced battery management system
    • Dual-core microcomputer with internet connectivity for updates
  • Seamless UPS backup
    • Automatic power during outages
    • Pair with 1200W MPPT solar input for fast recharging
  • Versatile usage
    • Flexible design for various power needs
