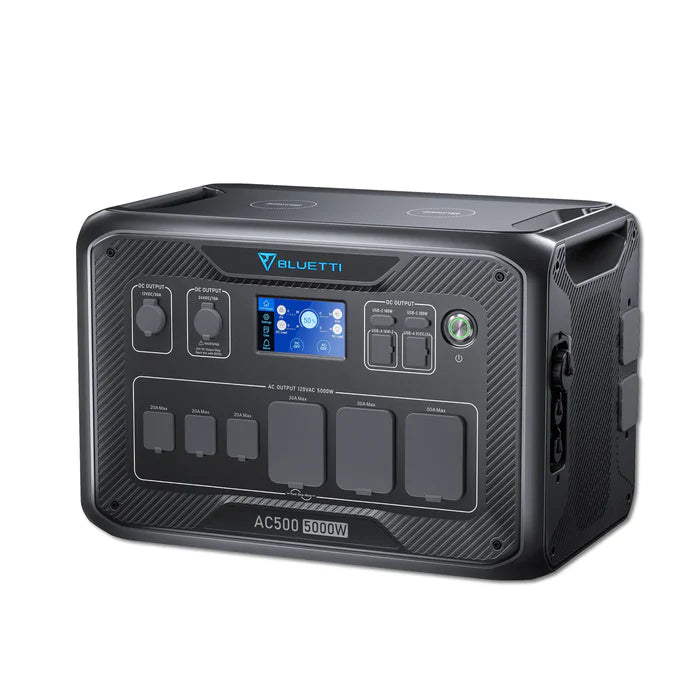

  • A rectangular, black Bluetti portable power station features a pure sine wave inverter, digital display, control knobs, multiple outlets, and labeled ports on the front panel. The unit also has rounded corners for a sleek design.

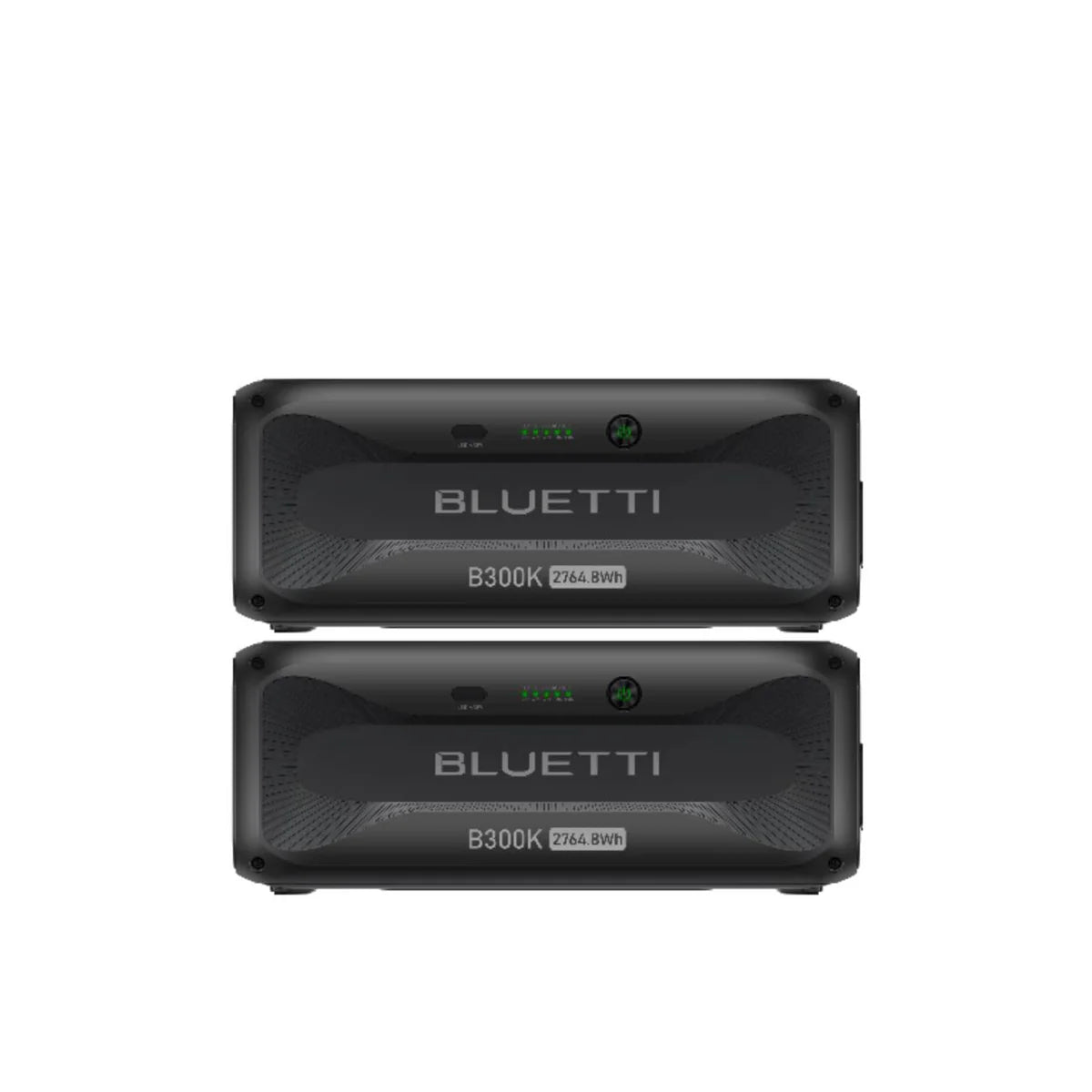

  • Two stacked Bluetti B300K battery modules in black, each labeled “B300K 2764.8Wh,” have power indicators and vented fronts—perfect for modular, seamless integration into your solar energy setup.
  • A large Bluetti cardboard box labeled 335W Solar Module rests on a pallet beside a standing black solar panel with a grid pattern, showcasing the modularity vital for efficient Bluetti solar energy systems.
  • Bluetti AC500+B300K 10,000W 11,059Wh Solar Generator Kit + 8 x 335W Rigid Mono Solar Panels | Complete Solar Kit
  • Bluetti AC500+B300K 10,000W 11,059Wh Solar Generator Kit + 8 x 335W Rigid Mono Solar Panels | Complete Solar Kit
  • Bluetti AC500+B300K 10,000W 11,059Wh Solar Generator Kit + 8 x 335W Rigid Mono Solar Panels | Complete Solar Kit
  • Bluetti AC500+B300K 10,000W 11,059Wh Solar Generator Kit + 8 x 335W Rigid Mono Solar Panels | Complete Solar Kit
1 8
1 people are viewing this right now

Bluetti AC500+B300K 10,000W 11,059Wh Solar Generator Kit + 8 x 335W Rigid Mono Solar Panels | Complete Solar Kit

SKU: 2XAC500-4XB300K-8X335RSRP
Availability: Out of stock
$9,299.00
$9,299.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • Use Promocode ECO100 At Checkout To Further Get $100 Off On Orders $1,500+
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Best for

  • Whole House
  • Home Backup
  • Commercial
4-year manufacturer warranty Backed by Bluetti. Full coverage details in the Description tab.

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog
View full product details

Power Station · 5,000W · 11,059Wh

Bluetti AC500+B300K 10,000W 11,059Wh Solar Generator Kit + 8 x 335W Rigid Mono Solar Panels

5,000WRated Output
11,059WhBattery Capacity
2,680WSolar Array
3,000WMax Solar Input
A graphic displays the Bluetti AC500+B300K 5,000W solar generator kit with three 200W panels, offering pure sine wave output, 10,000W surge, expandable 2,764.8Wh capacity, smart management, outage protection, and modular power solutions.
Overview

Overview

  • Harness limitless energy: The AC500 & B300K system redefines solar energy utilization, ensuring uninterrupted power access wherever you roam.
  • Pure sine wave inverter: Delivering 5000W of pristine power and handling surges up to 10kW, our inverter ensures optimal performance for all your devices.
  • Charge anywhere, anytime: Whether from a wall outlet or solar panels, charge your AC500 system at an impressive rate of up to 8,000W*, ensuring readiness for your next adventure. *Requires at least 2 B300K packs.
  • Tailored power solutions: With 100% modularity, the AC500 accommodates up to 6×B300K expansion battery packs, boasting a total capacity of 16,589Wh to meet your family's energy needs.
  • Empower heavy-duty equipment: Link two AC500 units to power 240V appliances effortlessly. With 12*B300K batteries, enjoy a substantial capacity of 33,118Wh, reducing grid reliance and electricity costs.

For additional capacity and flexible power options, browse the Bluetti Smart Expansion Battery collection to find compatible modules that fit your AC500 system

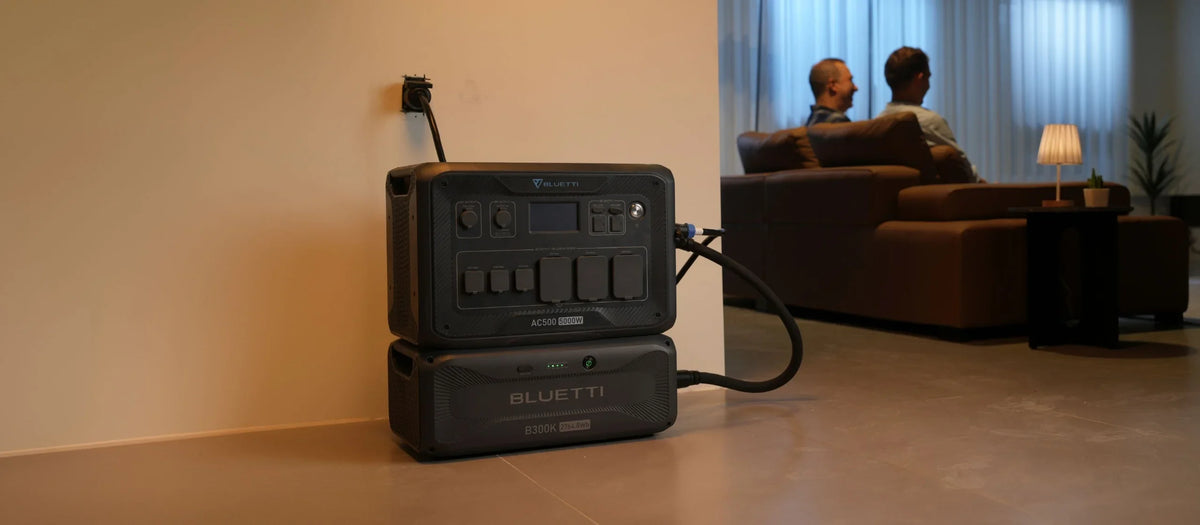

A Bluetti AC500+B300K 5,000W solar generator kit powers a cozy living room, where two people relax on a sofa with warm lighting and a side table lamp. The complete solar kit includes 3 x 200W mono solar panels.
Included

What's in the Box?

  • 2×AC500 Expandable Power Stations
  • 4×B300K Expansion Batteries
  • 8×335W Rigid Solar Panels: With a 25-year power output warranty.
  • 8×Mounting Hardware Z Brackets
  • 4×50 ft PV Extension Cable Set (Red & Black) 10AWG
  • 1×AC500 Fusion Box
  • 1×User Manual
  • •3-Year Warranty Card
Features

Features

  • Experience 5,000W rated power with a surge capacity of 10,000W
  • Expand capacity from 2,764.8Wh to 16,589Wh for extended usage
  • Utilize LiFePO4 battery technology with over 3,500 life cycles to 80%
  • Enjoy smart app control via WiFi & Bluetooth connectivity
  • Access a 240V/10KW split phase system with 2* AC500 & 2* B300K (Max. 33.1KWh)
  • Choose from 6 recharge options: AC, solar, car, generator, lead-acid battery, and dual charging (AC/AC+Solar)
  • Benefit from 16 versatile outlets compatible with 99% of devices
Data

Specifications

AC Outlets 3 x 120V/20A Outlets, 1 x 120V/30A L14-30, 1 x 120V/30A TT-30, 1 x 120V/50A NEMA14-50, 5,000W in total
Inverter Type Pure Sine Wave
Surge Power 10,000W
USB Port 2 x 5V/3A USB-A, 2 x 18W USB-A, 2 x USB-C 100W Max.
DC Outlets 1 x 12V/30A (RV Outlet), 1 x 24V/10A (Car Outlet), All regulated.
Wireless Charging Pad 2 x 15W Max. (For Each)
AC Input 3,000W Max. (W/ 1*B300K), 5,000W Max. (W/ 2 or more B300K)
Solar Input 3,000W Max., VOC 12-150VDC, 15A
Car Input 12/24V from Vehicle Cigarette Lighter Port
Maximum Input 4,500W (W/ 1*B300K), 8,000W (W/ 2 or more B300K) with AC and Solar Input Simultaneously
240V Split Phase Bonding Yes, with 2-12* B300K
App Control Yes, WiFi & Bluetooth
Scalability Expandable W/ Up to 6 x B300K or 6 x B300S
Simultaneous Recharge & Discharge Yes
Weight 66.2lbs / 30kg
Dimensions (L × W × D) 20.5 × 12.8 × 14.1in / 52 × 32.5 × 35.8cm
Operating Temperature Discharging: -4°F to 104°F / -20°C to 40°C, Charging: 32°F to 104°F / 0°C to 40°C
Storage Temperature -4℉ to 104℉ / -20℃ to 40℃
Certification FCC, UL, TELEC, CE, NTC, RCM, LOA, ICASA
Warranty 4 Years

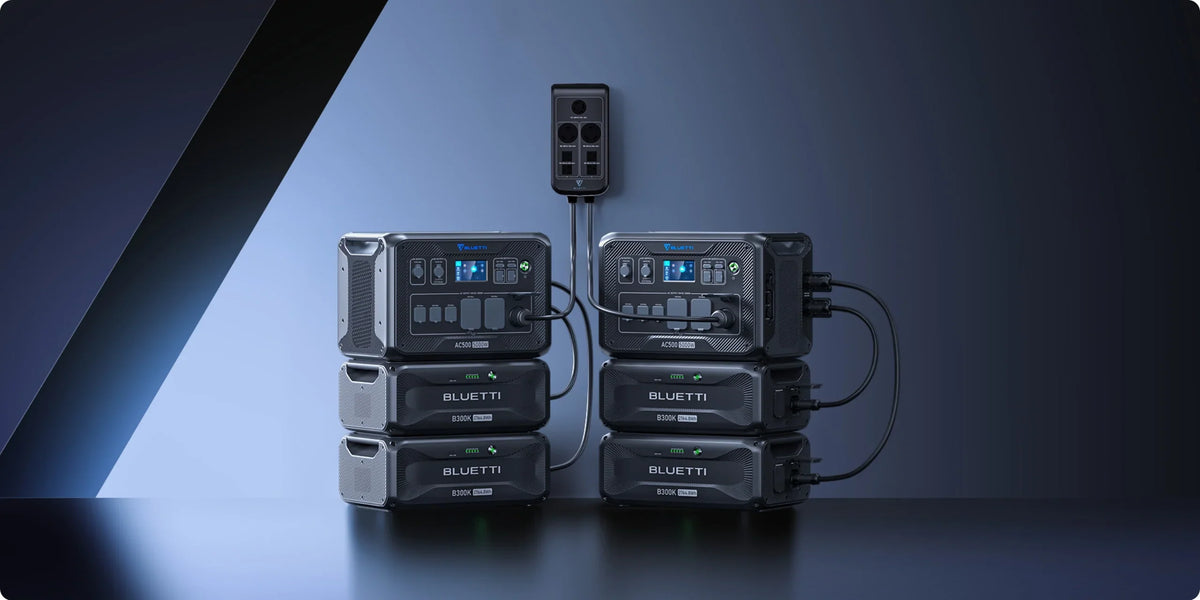

Two stacked Bluetti AC500+B300K 5,000W solar generators with digital displays connect to a black wall-mounted power strip, blending into a modern dark space; complete kit includes six 200W rigid mono solar panels.

4× Bluetti B300K 2,764.8Wh Expansion Battery

The Bluetti B300K 2,764.8Wh 48V Portable Expansion Battery’s modular design and 12W USB-A port are shown powering a light, phone, and laptop, with mountains in the background.
Three Bluetti stacks are shown side by side, each featuring the AC500 with either B300 (3,072Wh), B300K (2,764.8Wh), or B300S modules below, illustrating a modular energy solution with their Wh capacities clearly labeled.
Battery Capacity 2,764.8Wh (51.2V, 54Ah)
Battery Type LiFePO₄ (Lithium Iron Phosphate)
Life Cycles 4,000+ (80%)
USB-A Port 12W Max., 5V / 2.4A
Capacity 2,764.8Wh
Weight 29.5kg (65.04lbs)
Dimensions (L × W × H) 52.5 × 32.7 × 20.9cm (20.67 × 12.87 × 8.23in)
Charging Temperature 0°C to 40°C (32°F to 104°F)
Discharging Temperature -20°C to 40°C (-4°F to 104°F)
Storage Temperature Up to 1 month: -20°C to 40°C (-4°F to 104°F), Up to 6 months: -20°C to 25°C (-4°F to 77°F)
Working Humidity 5% to 95%RH
Charging Current 60A Max. (Current may decrease outside specified temperatures)
Discharging Current 70A Max.
2 × Expansion Port 58.4VDC Max., 90A Max.
Warranty 3+1 Years
Compatibility AC200L, AC200MAX, AC300, AC500

8× Rich Solar MEGA 335 24V Monocrystalline Solar Panel

A white RV equipped with RICH SOLAR MEGA 335W 24V Monocrystalline Solar Panels (PALLETS ONLY) from Rich Solar is parked by the beach. Four people enjoy food and drinks together at a picnic table nearby. Clean, modern text in Manrope font draws attention to the solar panels’ superior power, high efficiency, and advanced features for off-grid living.
Electrical
Max. power (Pmax) 335 W
Max-power voltage (Vmp) 29.2 V
Max-power current (Imp) 11.5 A
Open-circuit voltage (Voc) 36.9 V
Short-circuit current (Isc) 11.8 A
Max. system voltage (Vmax) 1500 Vdc
Max. series fuse rating 20 A
Physical
Cell configuration 96-cell monocrystalline
Weight 35.2 lbs
Dimensions 69.3 × 34.7 × 1.2 in
Operating temp -40°F to 185°F
Protection rating IP67
Included

What's Included in the Bluetti AC500+B300K Box

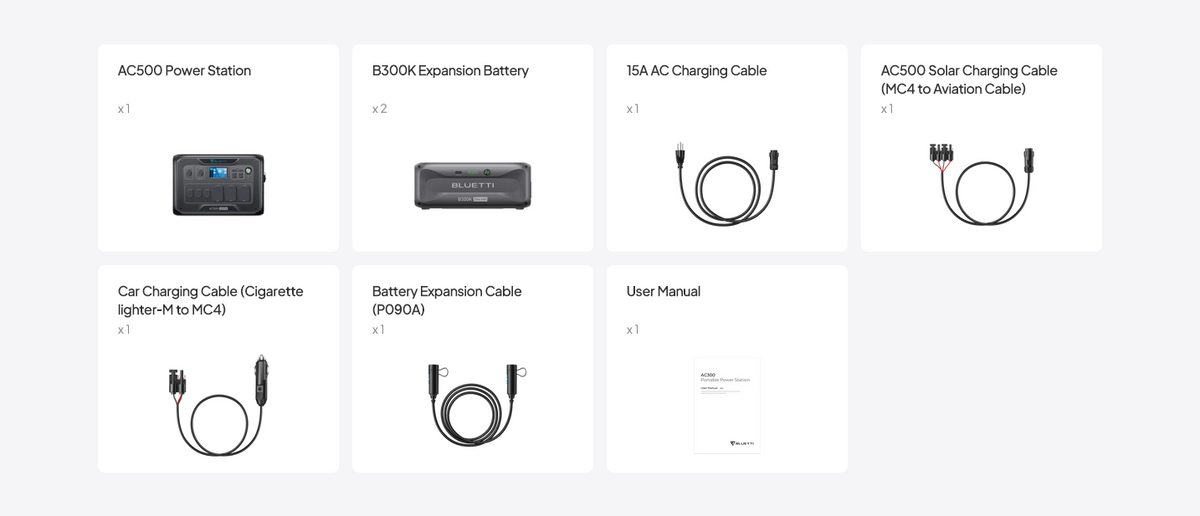

A grid layout displays seven items included with the Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit + 6 × 200W Rigid Mono Panels: power station, expansion battery, three charging cables (AC/solar/car), battery cable, and user manual.
Additional Documentation

Additional Documentation

BLUETTI AC500 Portable Power Station User Manual BLUETTI B300K Expansion Battery User Manual 335 Watt Monocrystalline Solar Panel Specifications 335 Watt Monocrystalline Solar Panel Certification
