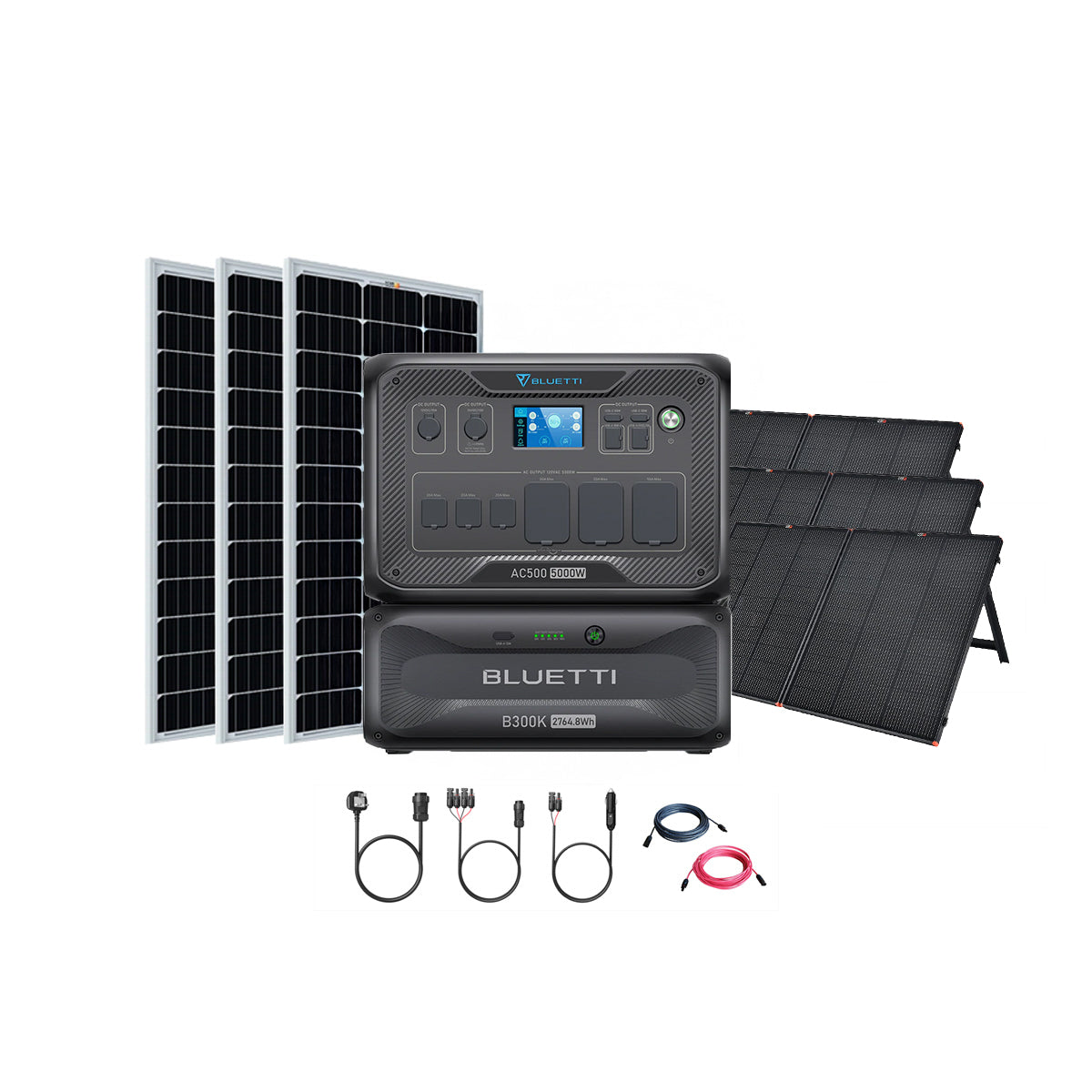

• The Bluetti portable power station kit features the AC500 unit, B300S expansion battery, four solar panels, and connecting cables from Bluetti, providing modular power solutions—all shown on a white background.

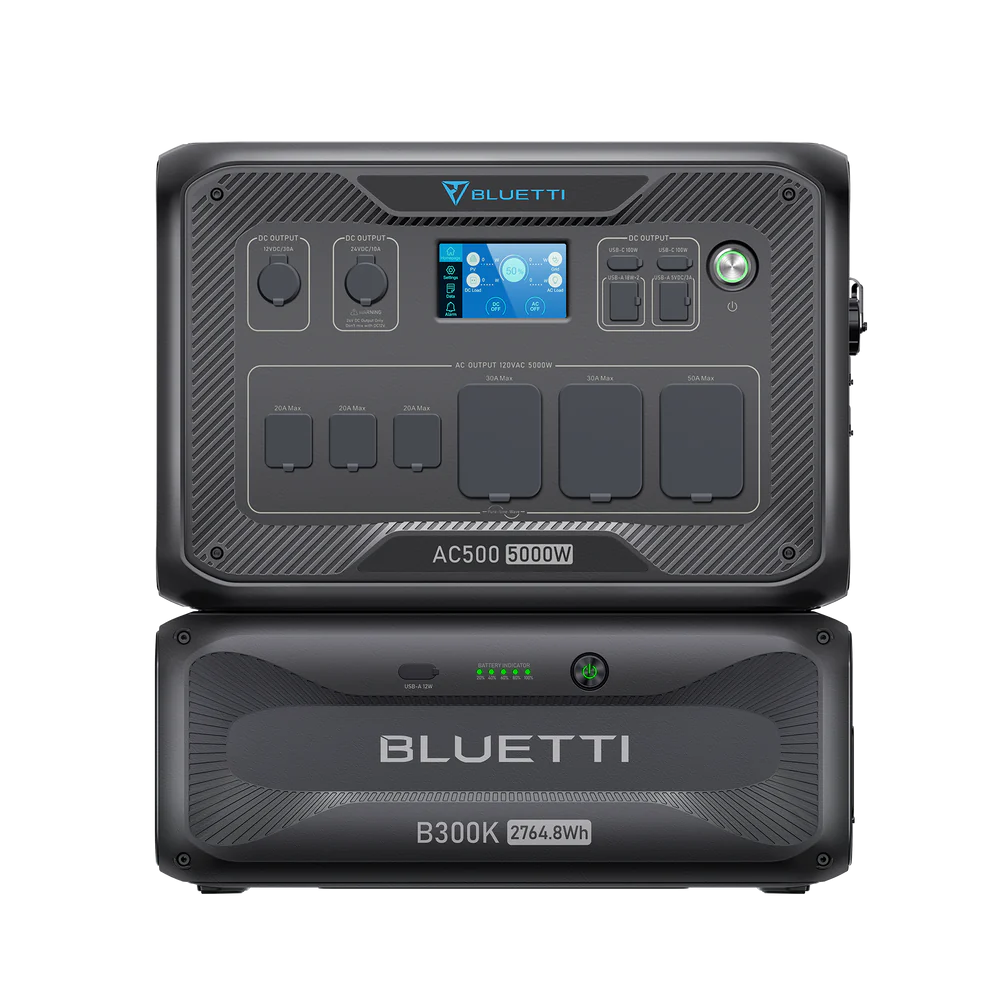

  • A Bluetti AC500 5000W portable power station stacked on a B300K 2764.8Wh battery, both with visible ports, control buttons, digital display, and Bluetti branding—demonstrating modular power solutions for reliable energy anywhere.

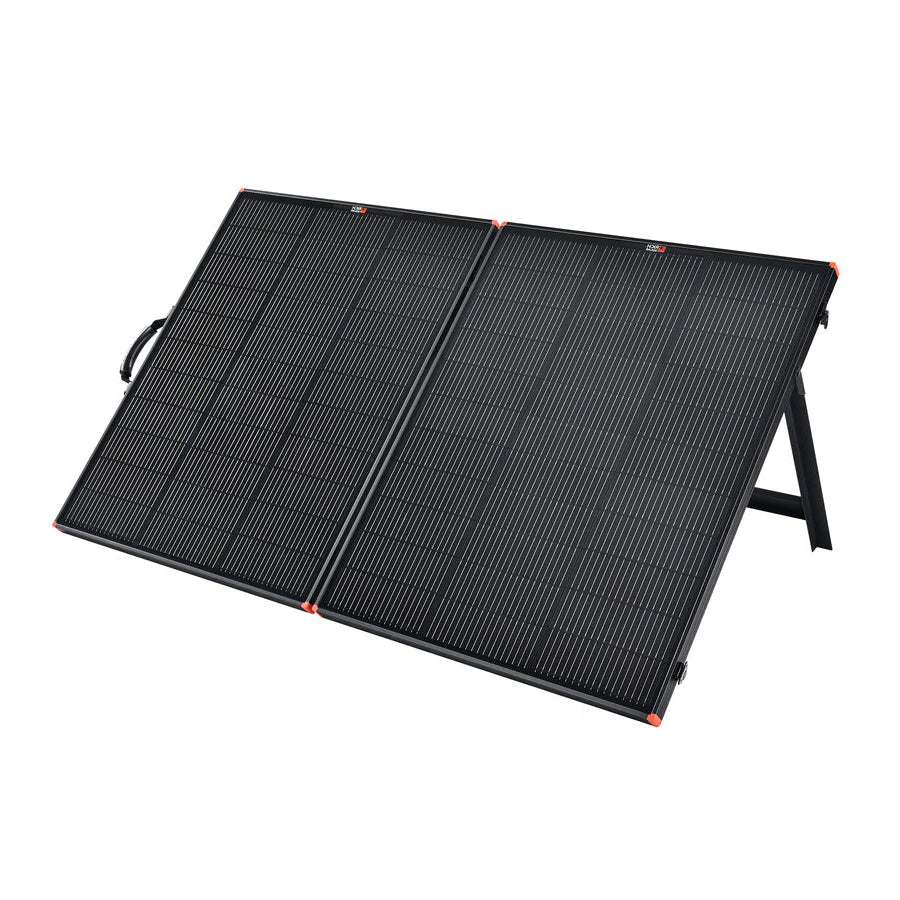

  • The Bluetti portable, foldable black solar panel features two rectangular sections, a built-in stand for outdoor use, orange accents, and a textured surface—ideal for modular power solutions with clean solar energy.

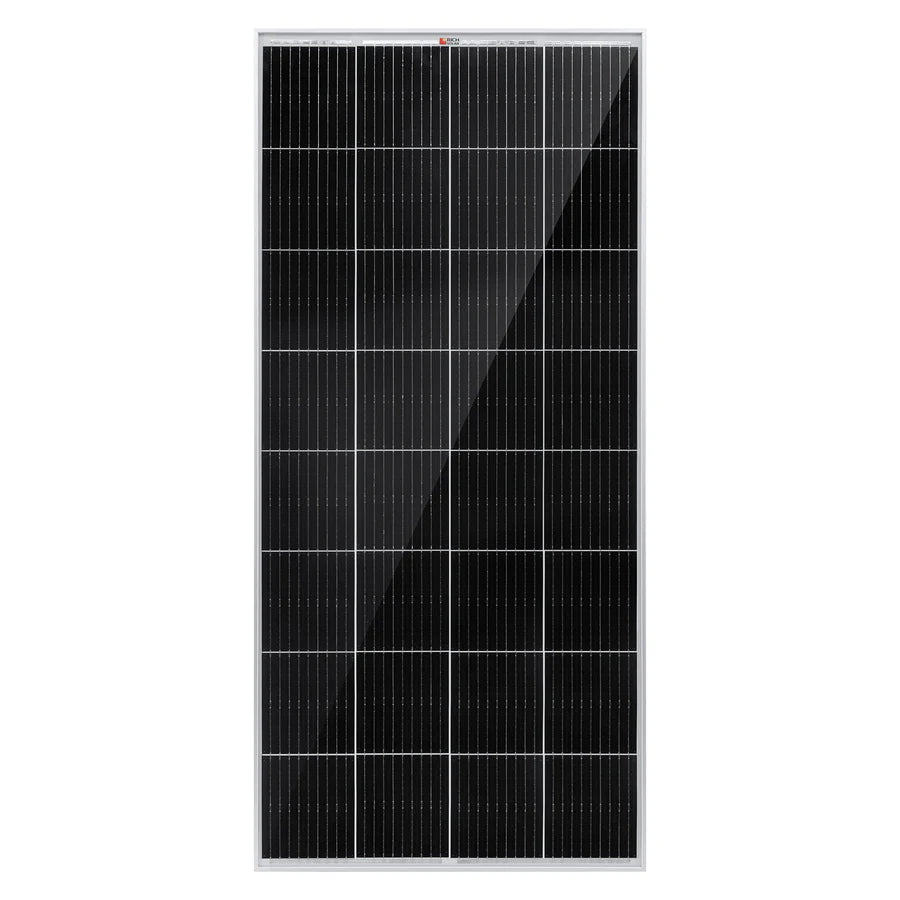

  • A rectangular black Bluetti solar panel with a grid of photovoltaic cells and a slim silver frame is displayed on a white background—perfect for modular solar energy solutions.

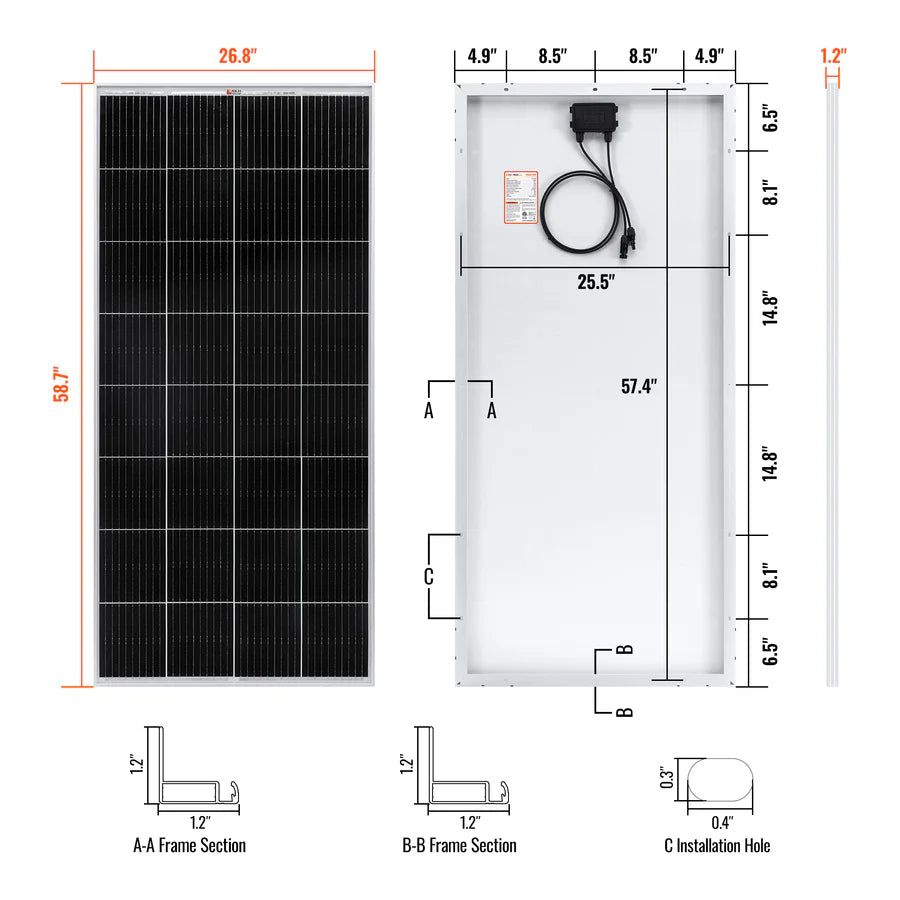

  • The Bluetti rectangular solar panel is shown front and back with detailed measurements, includes close-ups of frame sections and installation hole dimensions (in inches). It is mainly black, features a cable for modular power, and supports solar energy systems.
  • Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit + 3 x 200W Mono Solar Panels | Complete Solar Kit
  • Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit + 3 x 200W Mono Solar Panels | Complete Solar Kit
  • Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit + 3 x 200W Mono Solar Panels | Complete Solar Kit
  • Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit + 3 x 200W Mono Solar Panels | Complete Solar Kit
  • Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit + 3 x 200W Mono Solar Panels | Complete Solar Kit
  • Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit + 3 x 200W Mono Solar Panels | Complete Solar Kit
1 11
1 people are viewing this right now

Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit + 3 x 200W Mono Solar Panels | Complete Solar Kit

SKU: AC500-B300K-3X200RSRP
Availability: Out of stock
$3,099.00
$3,099.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Best for

  • Camping
  • RV
  • Emergency
4-year manufacturer warranty Backed by Bluetti. Full coverage details in the Description tab.

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog
View full product details

Power Station · 5,000W · 2,765Wh

Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit + 3 x 200W Mono Solar Panels

Harness limitless energy: The AC500 & B300K system redefines solar energy utilization, ensuring uninterrupted power access wherever you roam.

5,000WRated Output
2,765WhBattery Capacity
600WSolar Array
3,000WMax Solar Input
A graphic displays the Bluetti AC500+B300K 5,000W solar generator kit with three 200W panels, offering pure sine wave output, 10,000W surge, expandable 2,764.8Wh capacity, smart management, outage protection, and modular power solutions.
Overview

Overview

Pure sine wave inverter: Delivering 5000W of pristine power and handling surges up to 10kW, our inverter ensures optimal performance for all your devices.

Charge anywhere, anytime: Whether from a wall outlet or solar panels, charge your AC500 system at an impressive rate of up to 8,000W*, ensuring readiness for your next adventure. *Requires at least 2 B300K packs.

Tailored power solutions: With 100% modularity, the AC500 accommodates up to 6×B300K expansion battery packs, boasting a total capacity of 16,589Wh to meet your family's energy needs.

Empower heavy-duty equipment: Link two AC500 units to power 240V appliances effortlessly. With 12*B300K batteries, enjoy a substantial capacity of 33,118Wh, reducing grid reliance and electricity costs.

Included

What's in the Box?

  • 1×AC500 Expandable Power Station
  • 1×B300K Expansion Battery
  • 3×200W Solar Panels - 25-Year Power Output Warranty
  • 2×30 ft PV Extension Cable Set (Red & Black) 10AWG
  • 2×Battery Expansion Cable (P150D)
  • 1×Solar Charging Cable (MC4 to XT90)
  • 1×15A AC Charging Cable
  • 1×Solar Charging Cable (MC4 to Aviation Cable)
  • 1×Car Charging Cable (MC4 to Cigarette Lighter)
  • 1×User Manual

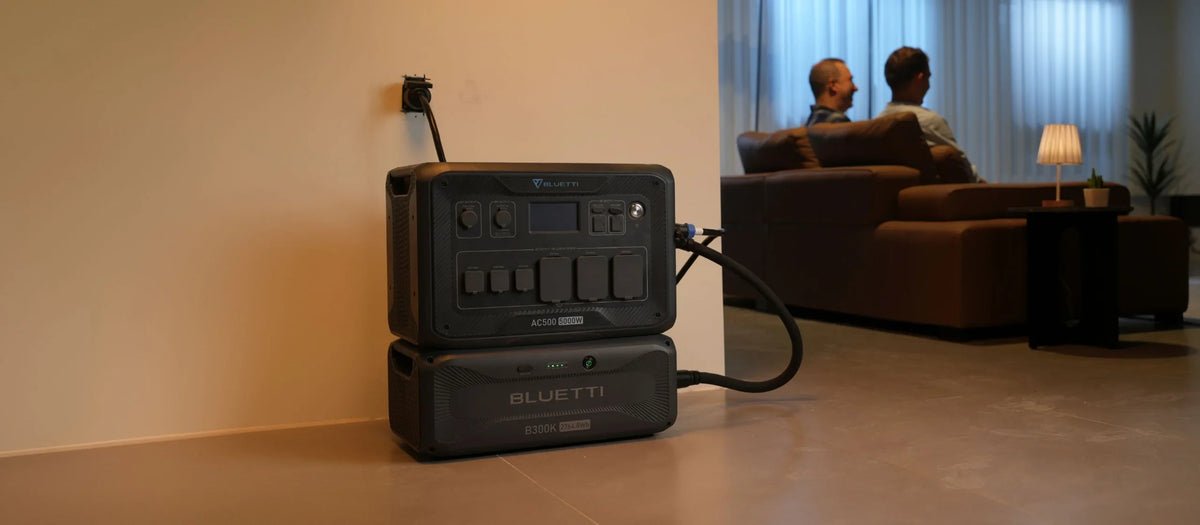

A Bluetti AC500+B300K 5,000W solar generator kit powers a cozy living room, where two people relax on a sofa with warm lighting and a side table lamp. The complete solar kit includes 3 x 200W mono solar panels.

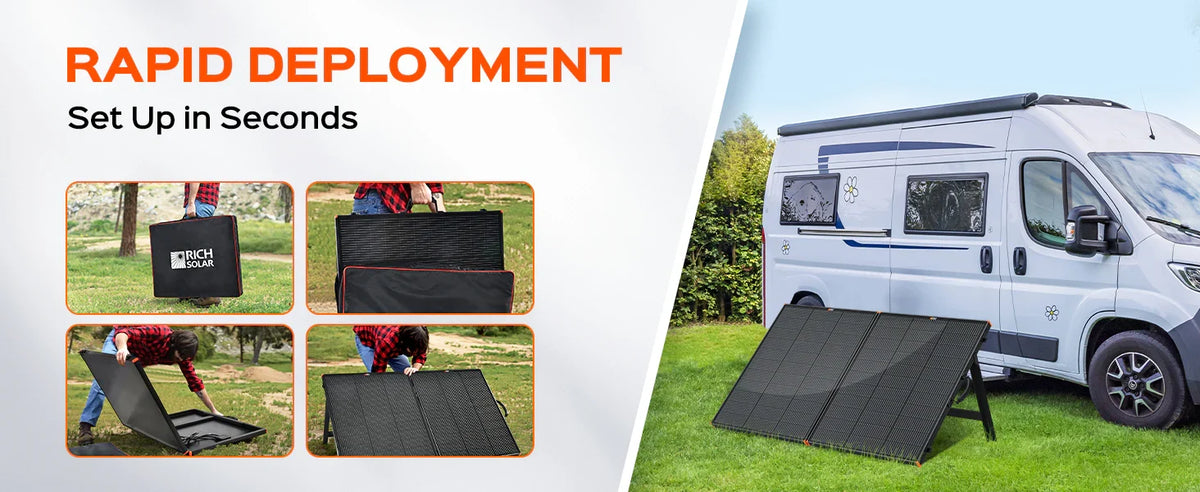

A person quickly sets up the Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit with 3 x 200W Mono Panels beside a camper van on grass. Unfolding from its case, it offers instant solar power. Text: RAPID DEPLOYMENT Set Up in Seconds.

Features

Features

  • Experience 5,000W rated power with a surge capacity of 10,000W
  • Expand capacity from 2,764.8Wh to 16,589Wh for extended usage
  • Utilize LiFePO4 battery technology with over 3,500 life cycles to 80%
  • Enjoy smart app control via WiFi & Bluetooth connectivity
  • Access a 240V/10KW split phase system with 2* AC500 & 2* B300K (Max. 33.1KWh)
  • Choose from 6 recharge options: AC, solar, car, generator, lead-acid battery, and dual charging (AC/AC+Solar)
  • Benefit from 16 versatile outlets compatible with 99% of devices
Data

Specifications

AC Outlets 3 x 120V/20A Outlets, 1 x 120V/30A L14-30, 1 x 120V/30A TT-30, 1 x 120V/50A NEMA14-50, 5,000W in total
Inverter Type Pure Sine Wave
Surge Power 10,000W
USB Port 2 x 5V/3A USB-A, 2 x 18W USB-A, 2 x USB-C 100W Max.
DC Outlets 1 x 12V/30A (RV Outlet), 1 x 24V/10A (Car Outlet), All regulated.
Wireless Charging Pad 2 x 15W Max. (For Each)
AC Input 3,000W Max. (W/ 1*B300K), 5,000W Max. (W/ 2 or more B300K)
Solar Input 3,000W Max., VOC 12-150VDC, 15A
Car Input 12/24V from Vehicle Cigarette Lighter Port
Maximum Input 4,500W (W/ 1*B300K), 8,000W (W/ 2 or more B300K) with AC and Solar Input Simultaneously
240V Split Phase Bonding Yes, with 2-12* B300K
App Control Yes, WiFi & Bluetooth
Scalability Expandable W/ Up to 6 x B300K or 6 x B300S
Simultaneous Recharge & Discharge Yes
Weight 66.2lbs / 30kg
Dimensions (L × W × D) 20.5 × 12.8 × 14.1in / 52 × 32.5 × 35.8cm
Operating Temperature Discharging: -4°F to 104°F / -20°C to 40°C, Charging: 32°F to 104°F / 0°C to 40°C
Storage Temperature -4℉ to 104℉ / -20℃ to 40℃
Certification FCC, UL, TELEC, CE, NTC, RCM, LOA, ICASA
Warranty 4 Years

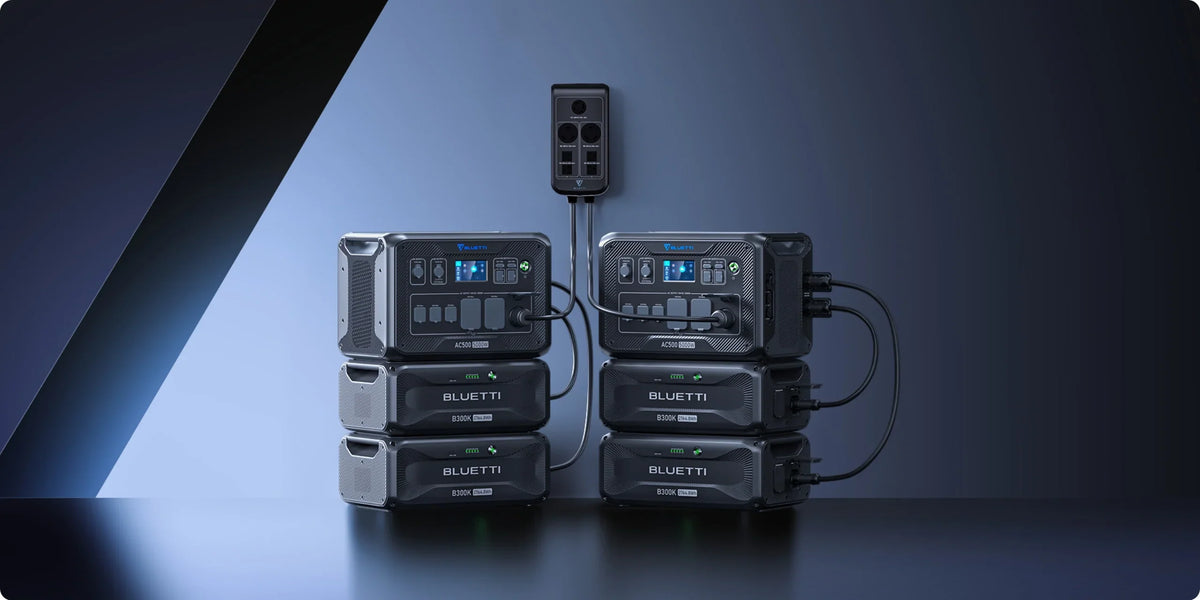

Two stacked Bluetti AC500+B300K 5,000W solar generators with digital displays connect to a black wall-mounted power strip, blending into a modern dark space; complete kit includes six 200W rigid mono solar panels.

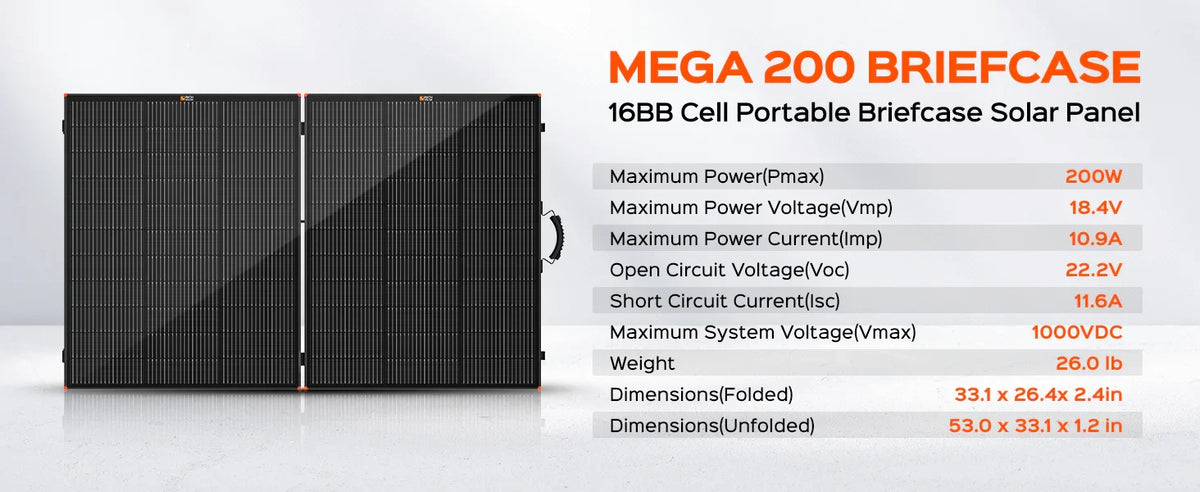

Two black briefcase-style Bluetti 200W mono solar panels feature orange accents. Specs—200W max power, 18.4V, 26 lbs, with folded/unfolded dimensions—are listed beside them. They’re part of the Bluetti AC500+B300K Solar Generator Kit.Three images showcase the Bluetti AC500+B300K 5,000W 2,764.8Wh Solar Generator Kit with 3x200W Mono Solar Panels—next to a van, outside a tent, and by an RV—demonstrating Bluetti’s flexible solar power for off-grid living.

Need a larger capacity? We also offer the Bluetti AC500+B300K 10,000W Solar Generator Kit with 8×335W Rigid Mono Panels - perfect for extended off-grid living and full home backup.

Additional Documentation

Additional Documentation

BLUETTI AC500 Portable Power Station User Manual

BLUETTI B300K Expansion Battery User Manual

MEGA 200W 12V Monocrystalline Solar Panel Specifications

MEGA 200W 12V Monocrystalline Solar Certification

200 Watt Portable Solar Panel Specifications

200 Watt Portable Solar Panel Certification
