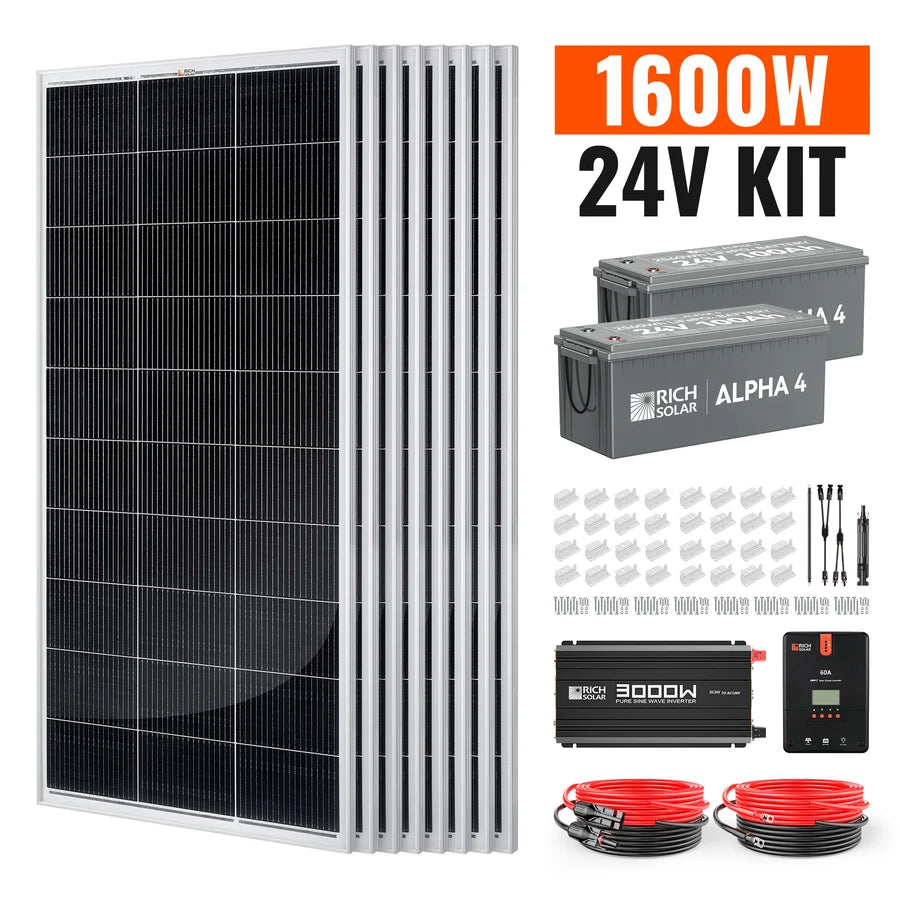

24V Complete Solar Kit · 8× Panel / 2× Battery / 1× Inverter / 1× Controller
This complete kit pairs eight MEGA 200W panels with a 60A MPPT controller, two ALPHA 4 lithium batteries, and a 3,000W 24V inverter — a ready-to-install off-grid solar system for RVs and tiny homes.
200W each, 12V, 16-busbar cells — 1,600W combined array. RS-M200
25.6V 100Ah (2,560Wh) each — 5.12kWh combined, with Bluetooth and self-heating. RS-B241S
3,000W continuous (6,000W surge) pure sine wave output, 24V DC input. RS-V3P24
Auto-detects 12V/24V/36V/48V systems, up to 99% MPPT tracking efficiency. RS-MPPT60
The 1,600W array produces roughly 6.4kWh daily under 4 peak sun hours, sized for real RV and tiny home daily loads.
Two ALPHA 4 batteries track charge, voltage, and temperature from a phone, with self-heating for cold-weather charging.
The included 3,000W pure sine wave inverter powers standard AC appliances directly from the battery bank.
The 60A MPPT controller supports up to 1,600W of solar on a 24V system, matching this kit's full array with room for panel swaps.
MEGA 200 Solar Panel
RS-M200 · ×8 included
| Max. power | 200 W |
| Max-power voltage | 18.4 V |
| Max-power current | 10.9 A |
| Weight (each) | 24.0 lbs |
| Dimensions | 58.7 × 26.8 × 1.2 in |
| Warranty | 25yr output / 10yr workmanship |
ALPHA 4 LiFePO₄ Battery
RS-B241S · ×2 included
| Nominal voltage | 25.6 V |
| Nominal capacity | 100 Ah |
| Combined energy (2 units) | 5.12 kWh |
| Cycle life | 5,000+ cycles |
| Monitoring | Bluetooth app + internal self-heating |
| Warranty | 5 years |
NOVA PURE 3K Inverter
RS-V3P24 · ×1 included
| Continuous power | 3,000 W |
| Peak surge | 6,000 W |
| Output voltage | 120 Vac |
| Output efficiency | > 88% |
| Dimensions | 18.7 × 9.6 × 4.0 in |
| Warranty | 2 years |
60A MPPT Charge Controller
RS-MPPT60 · ×1 included
| Rated battery current | 60 A |
| Rated load current | 20 A |
| System voltage | 12V/24V/36V/48V auto-detect |
| Max. PV input current | 60 A |
| Max. solar input voltage | 150 V (77°F) / 145 V (-13°F) |
| Max. solar input power | 800W (12V) / 1,600W (24V) / 2,400W (36V) / 3,200W (48V) |
| MPPT tracking efficiency | up to 99% |
| Peak conversion efficiency | 98% |
| Weight | 7.9 lbs |
| Dimensions | 11.2 × 8.1 × 4.0 in |
| Operating temp | -31°F to 113°F |
| Battery compatibility | Sealed, Gel, Flooded, Lithium |
| Communication | RS232 (BT-1 Bluetooth compatible), RS485 |
| Display | LCD + LED indicators |
| Warranty | 2 years |
Yes — the included 3,000W pure sine wave inverter converts the battery bank's 24V DC power into 120V AC, supporting continuous loads up to 3,000W with a 6,000W surge capacity.
Yes — the ALPHA 4 batteries include Bluetooth app monitoring for real-time charge, voltage, and temperature tracking, plus internal self-heating for cold-weather charging.
It auto-detects 12V, 24V, 36V, or 48V systems and is compatible with sealed, gel, flooded, and lithium battery types.
The 60A MPPT controller supports up to 1,600W of solar on a 24V system, which matches this kit's array — a larger controller would be needed to expand further.
Given the number of components and connections involved, installation should be handled by a qualified, licensed electrician familiar with your local code, especially if you're not experienced with DC electrical systems.
