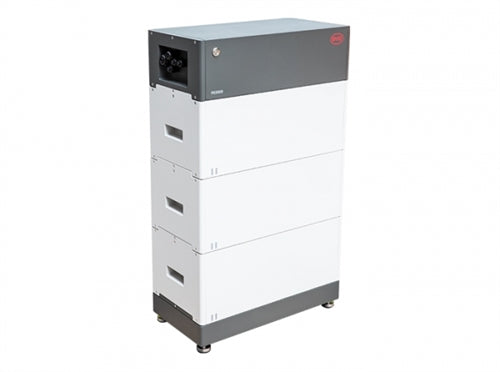

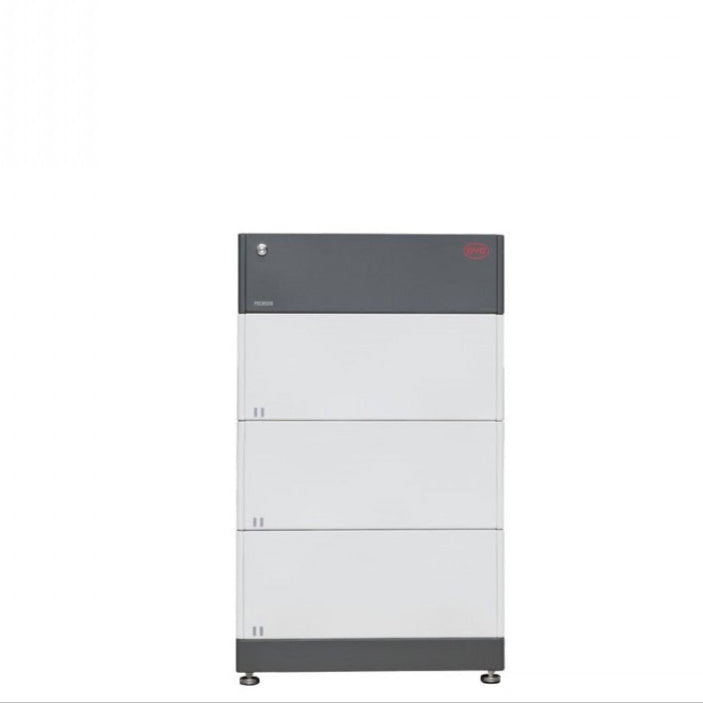

• A tall, rectangular gray and white BYD Battery-Box storage unit with three stacked compartments stands on small feet against a white background, featuring lithium iron phosphate technology from BYD.

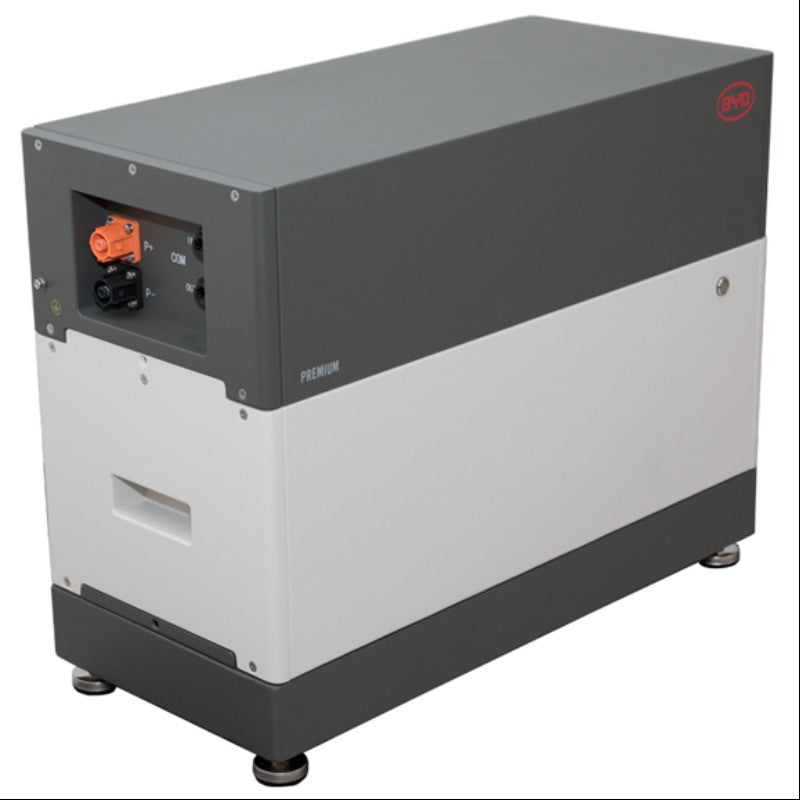

  • A rectangular BYD Battery-Box lithium iron phosphate module with a gray and white casing, control panel with connectors and indicator lights at one end, and elevated on four small feet.

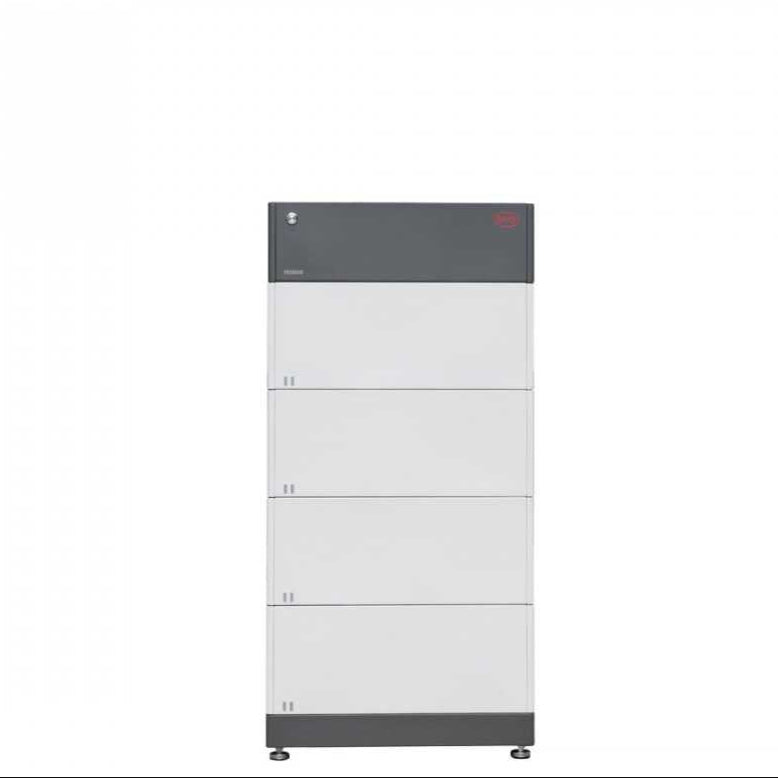

  • A tall, rectangular BYD Battery-Box cabinet with four compartments and a dark gray top stands upright against a white background, ideal for high-voltage series lithium iron phosphate applications.
  • The BYD Battery-Box is a rectangular, modular home battery with a black top featuring connectors and logo, and three stacked white lithium iron phosphate modules below, all on short legs. Its ideal for high-voltage series setups.

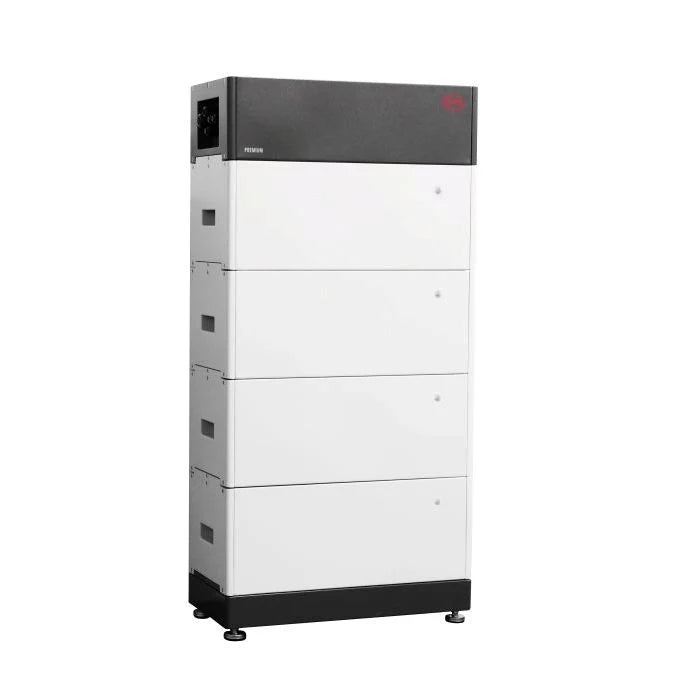

  • The tall, rectangular BYD modular storage unit features four stacked sections, a dark top panel, black-and-white finish, small adjustable feet, and uses lithium iron phosphate cells.

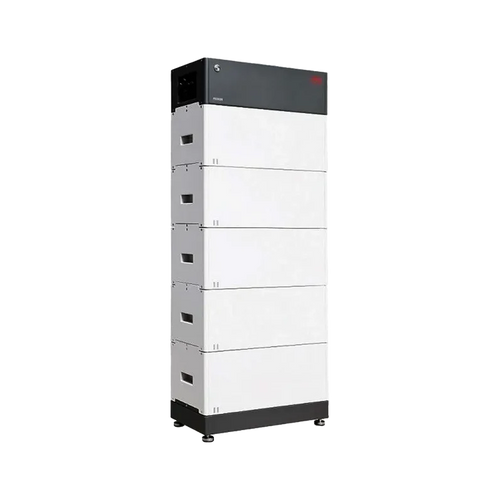

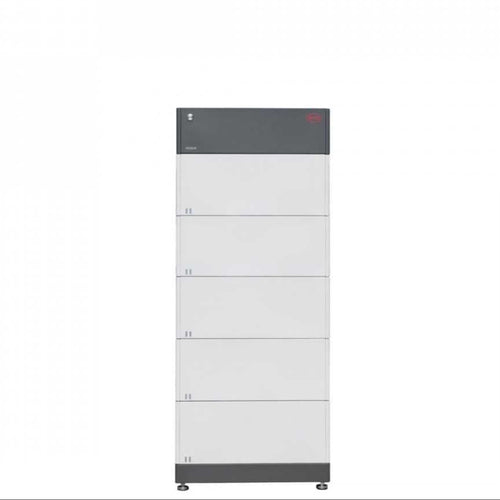

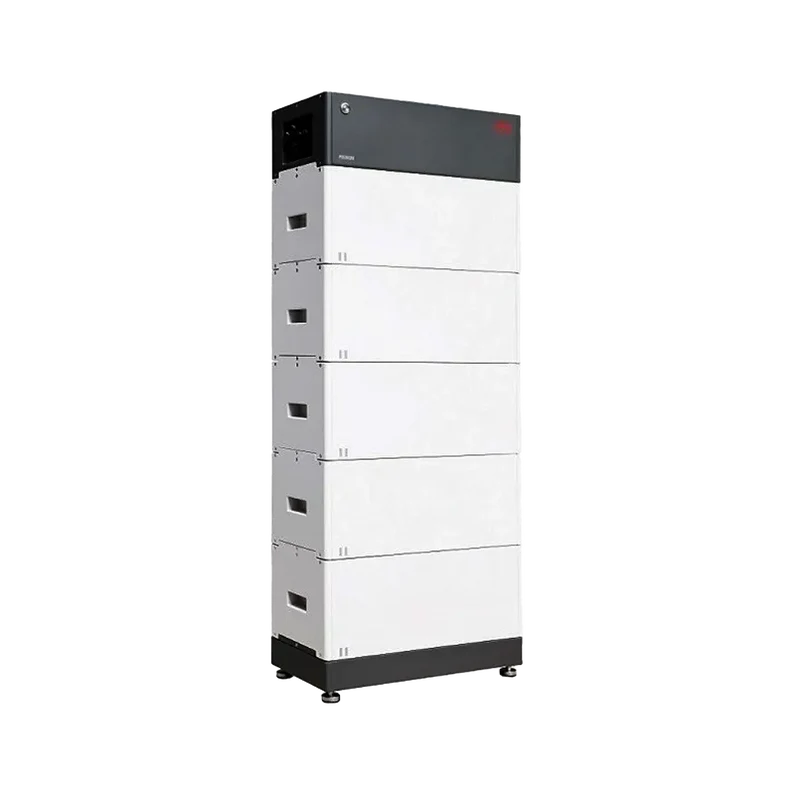

  • The BYD Battery-Box is a tall, rectangular storage unit with a black top and five stacked white lithium iron phosphate modules, each with handles. It features a modern, industrial design and belongs to BYD’s high-voltage series.

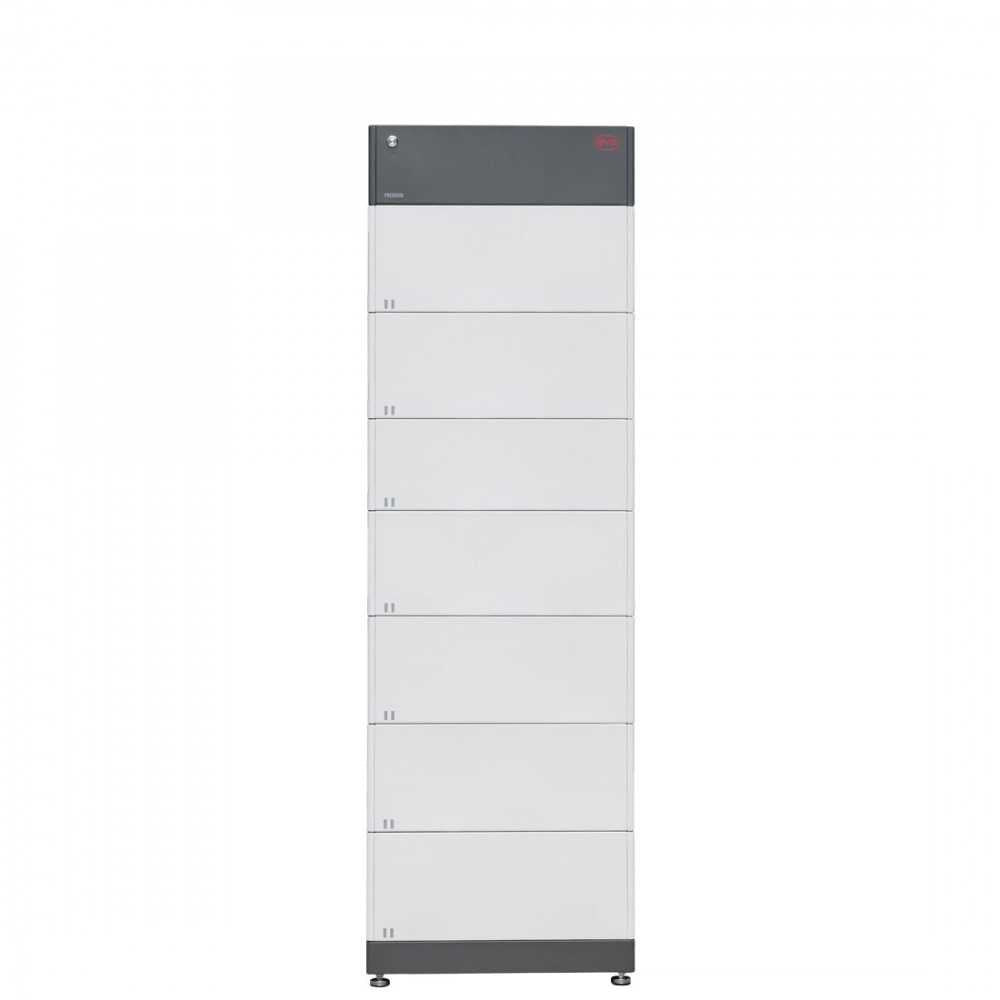

  • The tall, white BYD Battery-Box cabinet features eight handled compartments and a gray top with a red label, providing high-voltage series lithium iron phosphate storage; shown against a plain white background.

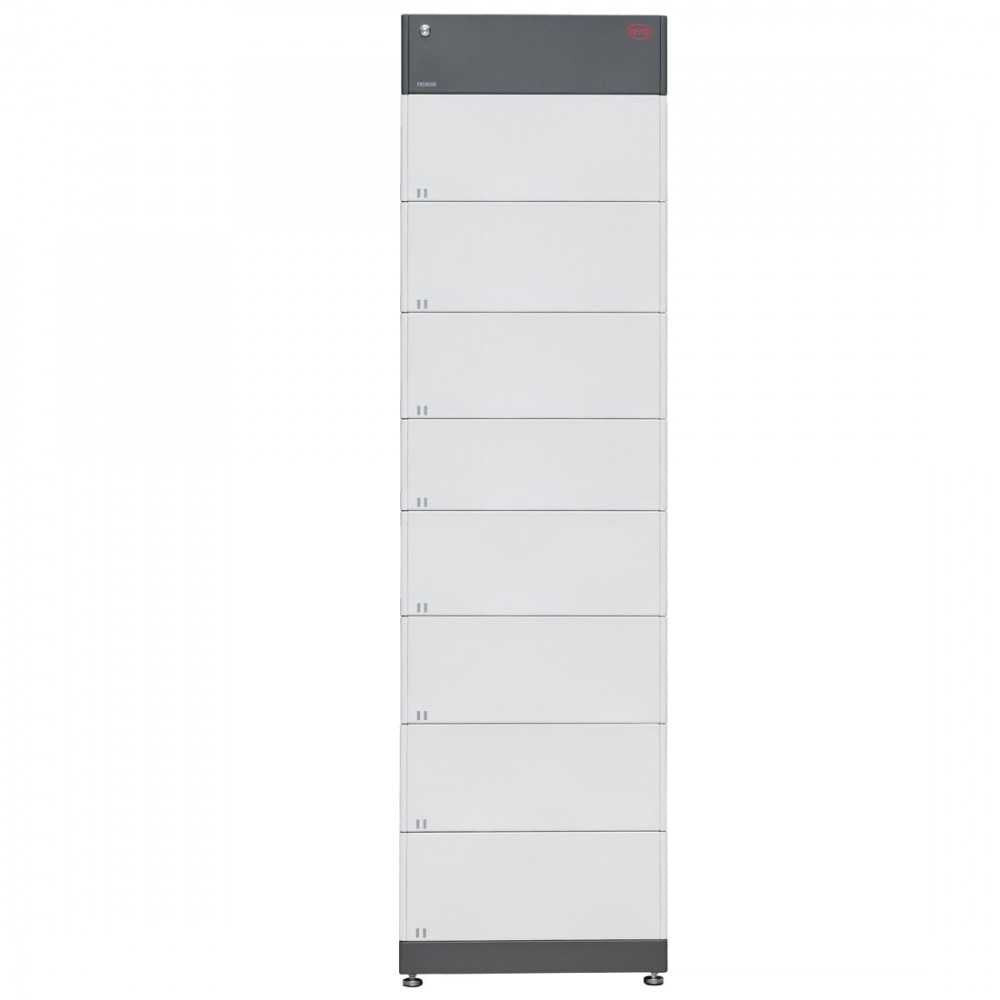

  • The BYD tall, narrow white locker features eight vertically stacked compartments—ideal for organizing BYD Battery-Box or lithium iron phosphate components. It has gray top and bottom sections and stands on small feet.

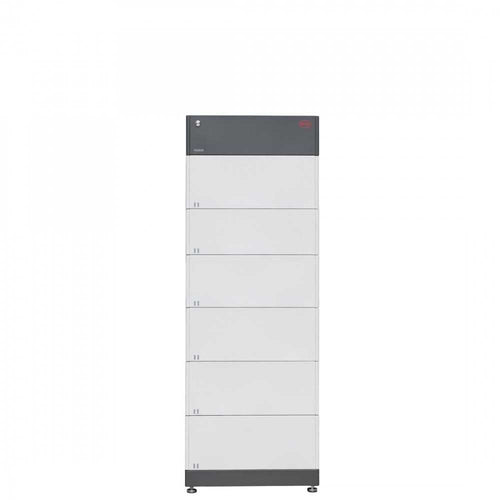

  • A tall, rectangular gray and white BYD modular cabinet with six stacked compartments and small black feet is ideal for housing high-voltage BYD Battery-Box lithium iron phosphate energy storage units.
  • A tall, rectangular grey and white BYD Battery-Box modular storage unit with six stacked sections, small handles on each door, and a red digital display on the top features lithium iron phosphate cells against a plain white background.

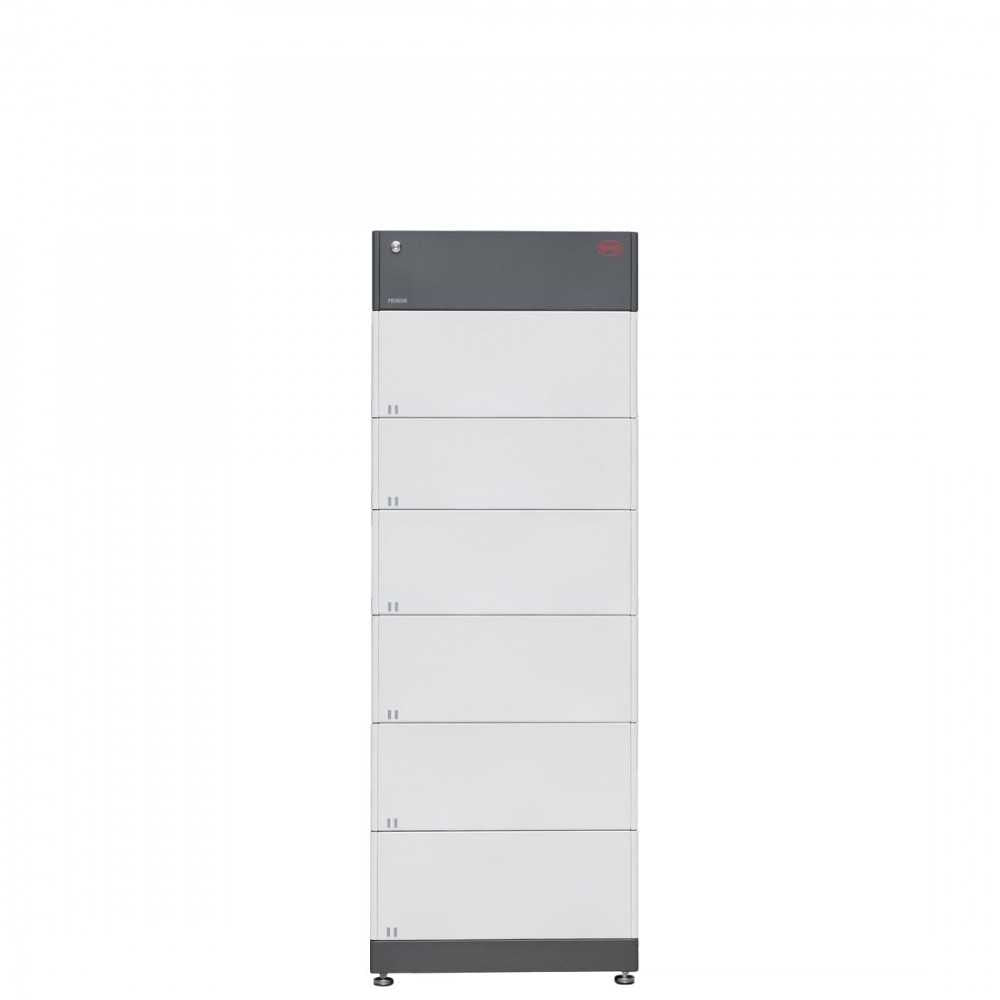

  • A tall, rectangular BYD Battery-Box unit in gray and white features a modular, high-voltage design with multiple stacked sections and a small red BYD logo at the top right corner.
  • BYD Premium 12 - 32kWh HVL Battery System
1 12
9 people are viewing this right now

BYD Premium 12 - 32kWh HVL Battery System

SKU: BYD-HVL-3
Availability: Out of stock
$7,109.33
$7,899.00 $7,109.33
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Best for

  • Home Backup
  • Grid-Tie
  • Commercial
  • Whole House
  • Off-Grid

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog
View full product details

Battery · 12,000Wh

BYD Premium 12 - 32kWh HVL Battery System

Introducing the BYD Battery-Box Premium HVL:

12,000WhBattery Capacity
LiFePO4Chemistry
330.7 lbWeight
Overview

Overview

  • Unleash high-powered emergency backup and off-grid capability
  • Achieve peak efficiency with genuine high-voltage series connection
  • Innovative patented modular plug design: zero internal wiring for ultimate flexibility and user-friendliness
  • Harness the power of cobalt-free lithium iron phosphate (LFP) battery for maximum safety, longevity, and performance
  • Seamless compatibility with leading high-voltage battery inverters
  • Upholding the highest safety standards

Each Battery-Box Premium HVL consists of 3 to 8 HVL battery modules, meticulously connected in series to deliver a usable capacity ranging from 12 to 32 kWh. Plus, the flexibility to expand by integrating additional HVL modules in the future.

Data

Specifications

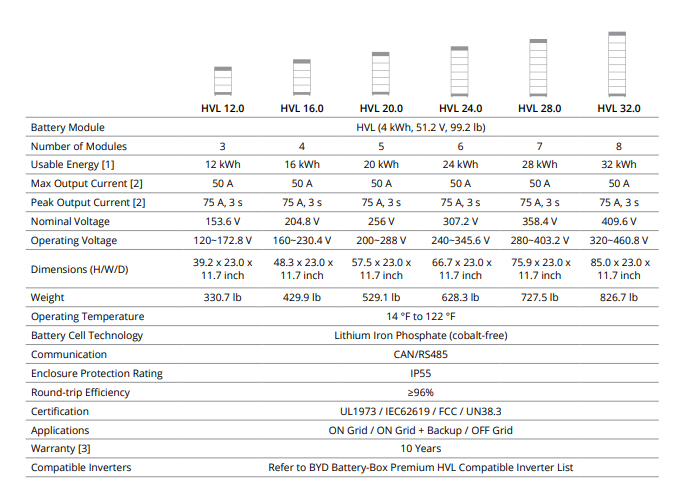

BYD Battery-Box Premium HVL - module configurations

Specification HVL 12.0 HVL 16.0 HVL 20.0 HVL 24.0 HVL 28.0 HVL 32.0
Battery Module HVL (4 kWh, 51.2V, 99.2 lb)
Number of Modules 3 4 5 6 7 8
Usable Energy 12 kWh 16 kWh 20 kWh 24 kWh 28 kWh 32 kWh
Max Output Current 50 A
Peak Output Current 75 A, 3 s
Nominal Voltage 153.6 V 204.8 V 256 V 307.2 V 358.4 V 409.6 V
Operating Voltage 120-172.8 V 160-230.4 V 200-288 V 240-345.6 V 280-403.2 V 320-460.8 V
Dimensions (H/W/D) 39.2 × 23.0 × 11.7 in 48.3 × 23.0 × 11.7 in 57.5 × 23.0 × 11.7 in 66.7 × 23.0 × 11.7 in 75.9 × 23.0 × 11.7 in 85.0 × 23.0 × 11.7 in
Weight 330.7 lb 429.9 lb 529.1 lb 628.3 lb 727.5 lb 826.7 lb
Operating Temperature 14°F to 122°F
Battery Cell Technology Lithium iron phosphate (cobalt-free)
Communication CAN / RS485
Enclosure Protection Rating IP55
Round-trip Efficiency ≥96%
Certification UL1973 / IEC62619 / FCC / UN38.3
Applications On grid / on grid + backup / off grid
Warranty 10 years
Compatible Inverters Refer to BYD Battery-Box Premium HVL compatible inverter list
Additional Documentation

Additional documentation

BYD Premium HVL Battery System Datasheet
