EG4 PowerPro 12kW Power Output and 28.6kWh Battery Storage Off-Grid System

SKU: K0757
Regular price $12,390.00
Regular price Sale price $12,390.00
Sold out
  • Authorized Distributor
  • FREE SHIPPING For Every Order No Matter How Big Or Small
  • Use Promocode ECO400 To Further Get $400 Off
  • $0 SALES TAX For Every Order (WY is an exclusion)
  • Have Questions? Call our Expert for Answers +1 307 317 7213
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Delivery Information

Delivery information

Payment Methods

Return and Refund Policy

Live Chat

Live Agent

Category: EG4 Kit
View full product details

HIGH-CAPACITY RESIDENTIAL ESS SOLUTION!

The EG4 PowerPro has arrived to transform home energy storage across the United States. With a 28.68kWh indoor configuration, this wall-mountable, all-weather energy storage system is perfect for a range of applications, from tiny homes and cabins to large family homes, mansions, or office buildings. It is backed by top-tier safety standards and certifications, including UL9540, UL9540A, and UL1973, ensuring comprehensive safety and state-of-the-art functionality.

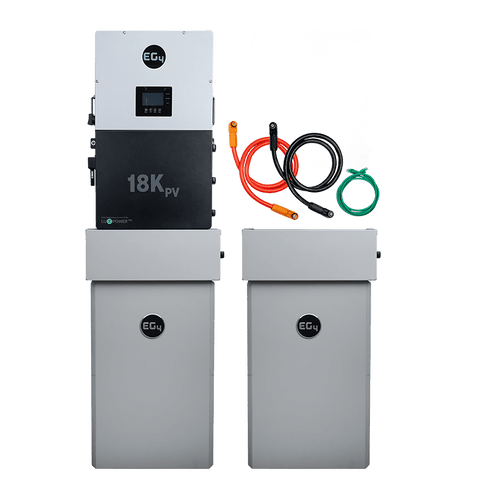

WHAT'S IN THE BOX

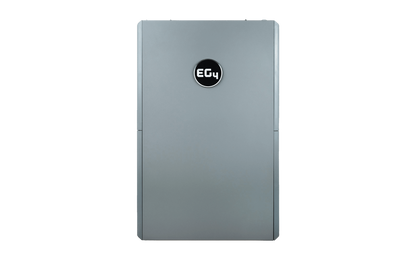

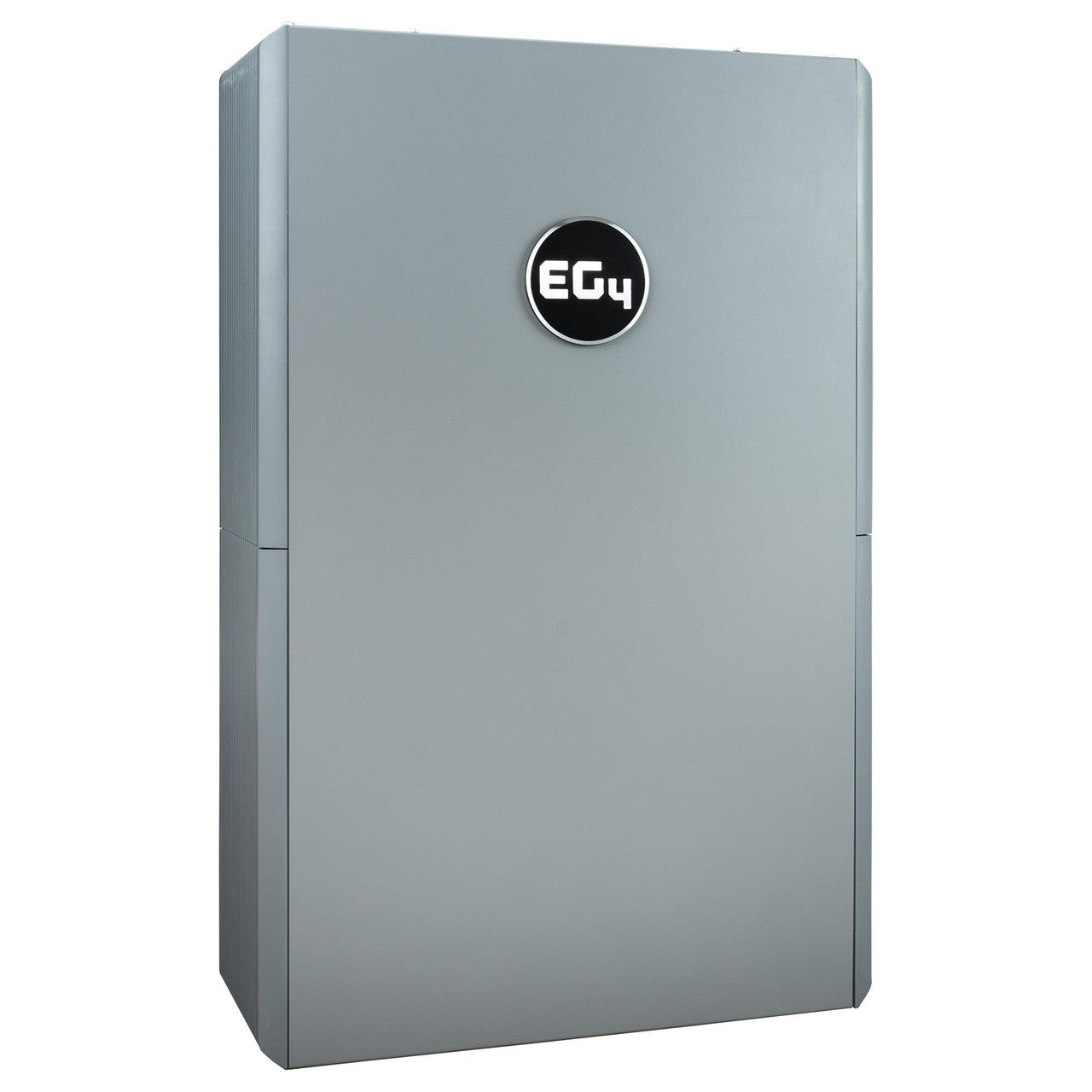

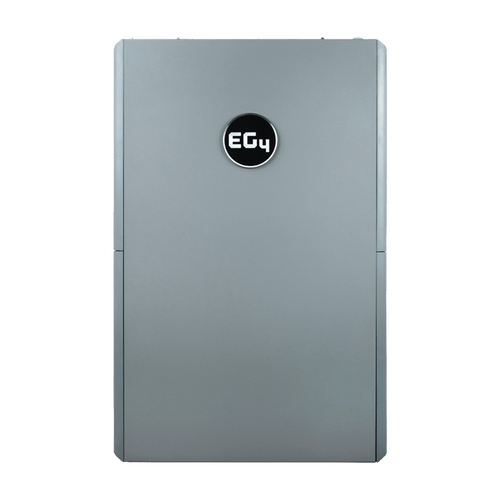

  • 2 × 48V EG4 PowerPro Units
  • 2 × EG4 PowerPro Conduit Boxes
  • 1 × EG4 PowerPro Parallel Cable Kit

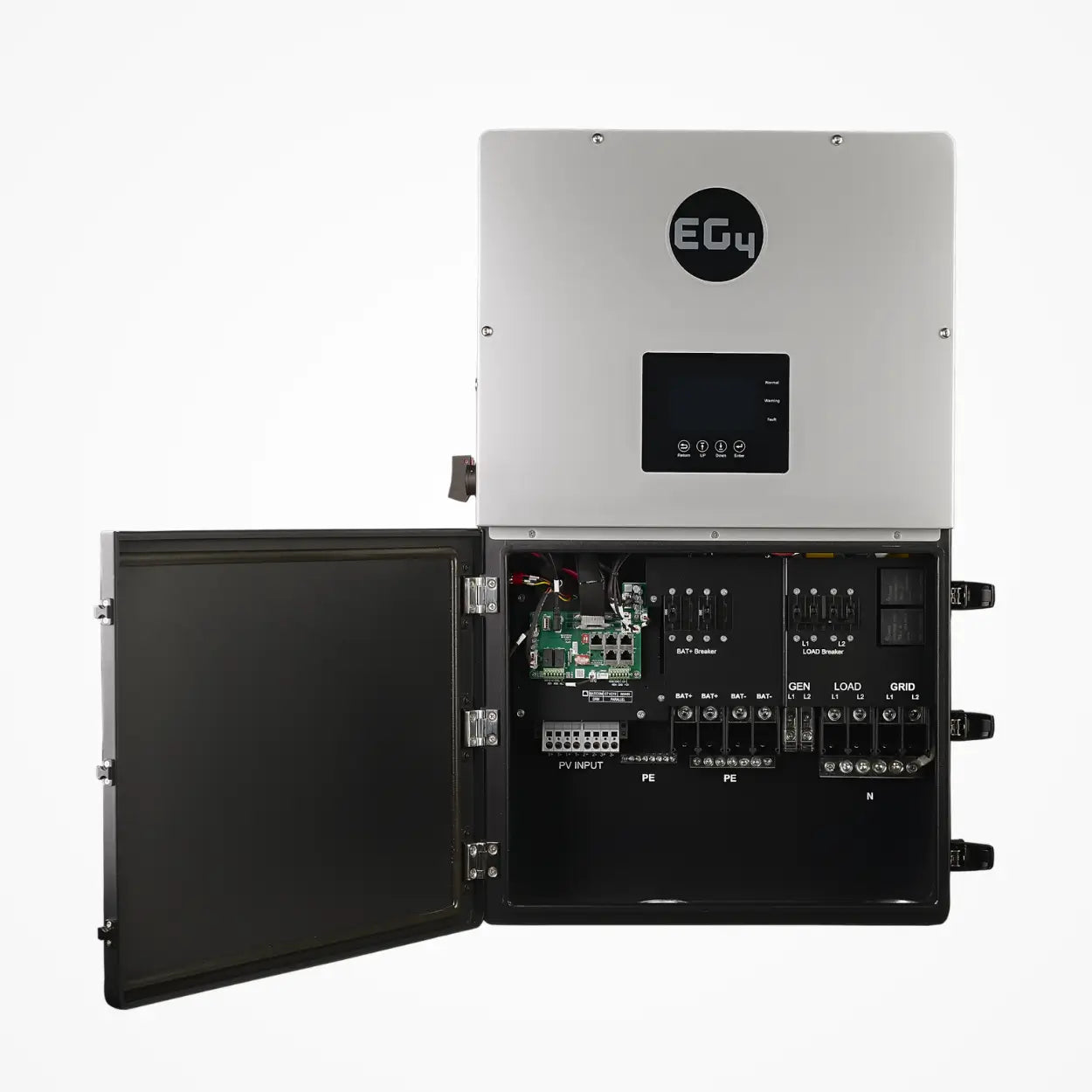

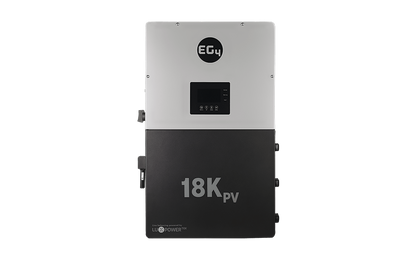

  • 1 × EG4 12kW (18kW PV) Hybrid Inverter



SPECIFICATIONS

No. of MPPTs 3
Inputs per MPPT
2 (MPPT 1) / 1 (MPPT 2 & 3)
Max. Input Current
25A (MPPT 1) / 15A (MPPT 2 & 3)
Max. Short Circuit Input Current
31A (MPPT 1) / 19A (MPPT 2 & 3)
DC Input Voltage Range 100 - 600V DC
MPPT Operating Voltage Range 120 - 500V DC
Max. PV Array Power 18,000W
AC Input Voltage
120V AC / 240V AC (120V AC / 208V AC)
AC Frequency 50 Hz / 60 Hz
Max. Continuous Line Wattage
8,000W (per 120V line)
AC Bypass
200A (Grid) / 90A (Generator)
Transfer Time 10 ms
Max. Continuous Output Current 50A
Output Power
12,000W @ 240V / 10,400W @ 208V
Surge Capacity
14,700W (10 min) / 15,500W (5 min)
Surge Capacity (Battery Only)
13,500W (10 min)
Nominal Voltage 51.2V
Ah Capacity 560Ah
kWh Capacity 28.68kWh
Max. Charge / Discharge Current 250A
Operating / Storage Temperature Range
-13ºF to 140ºF (-25ºC to 60ºC)
Altitude
<6,561 ft (2000 m)
Typical Noise Emission 68 dB @ 3 ft
Protection Rating IP65 / NEMA 4X
Communications RS485 / CANBus
Idle Consumption
~70W (Normal) / ~18W (Standby Mode)
Max. Efficiency (PV to Grid) 98%
Max. Efficiency (Battery to Grid) 94%
Battery Weight 308.6 lbs (140 kg)
Battery Dimensions (DxWxH)
9.1 x 22.3 x 34.6 in (231 x 566.5 x 879 mm)
Inverter Weight 121 lbs (55 kg)
Inverter Dimensions (DxWxH)
11.2 x 20.5 x 34.3 in (285 x 520 x 871 mm)
Conduit Box Weight 16.6 lbs (7.5 kg)
Conduit Box Dimensions (DxWxH)
9.1 x 24 x 10.6 in (231 x 610 x 269 mm)









ADDITIONAL DOCUMENTATION

System Spec Sheet:
Battery Spec Sheet:
Inverter Spec Sheet:
Battery User Manual:
Inverter User Manual:
UL9540 Certificate:
