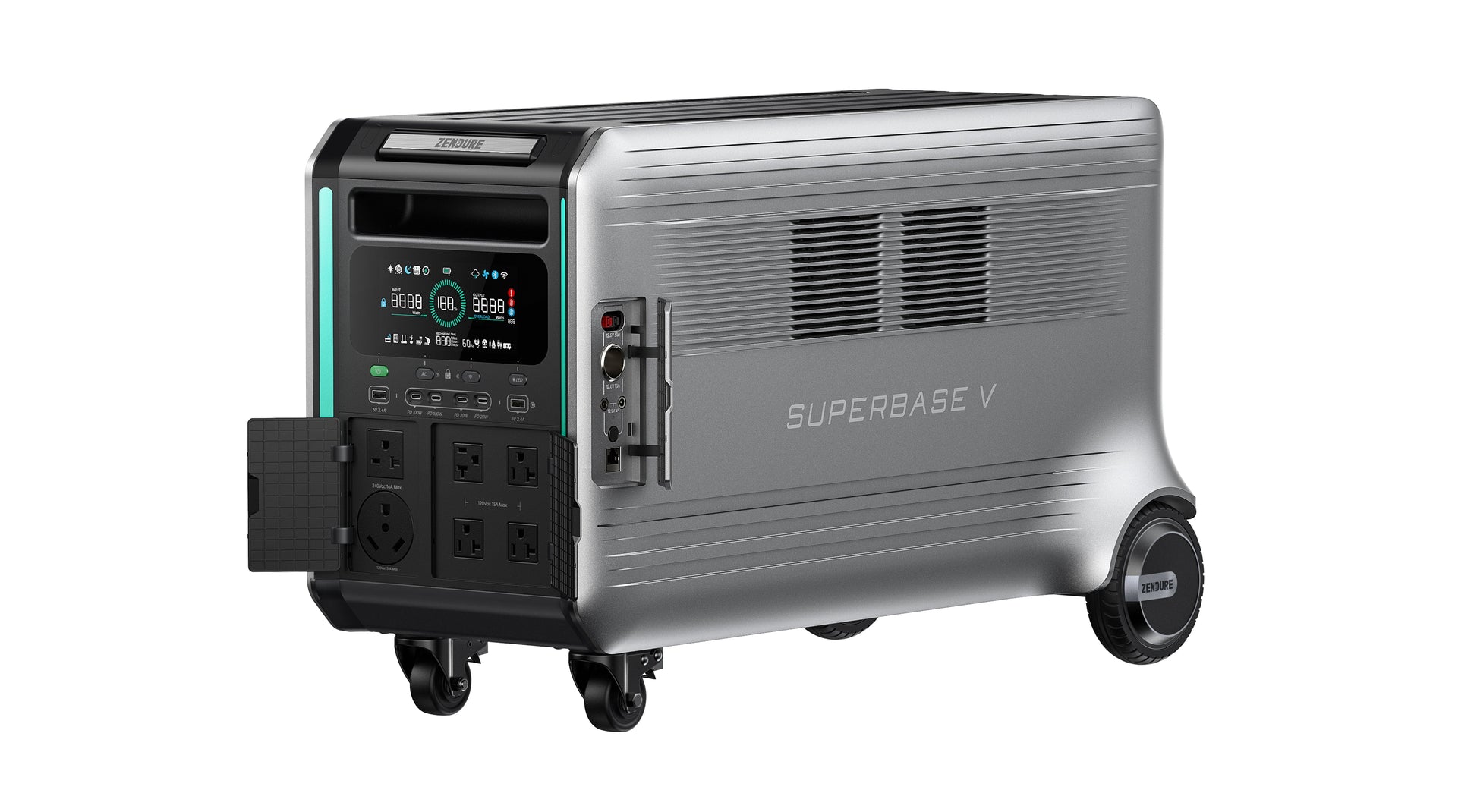

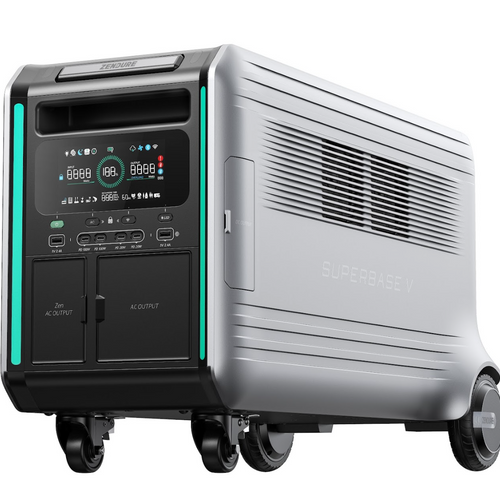

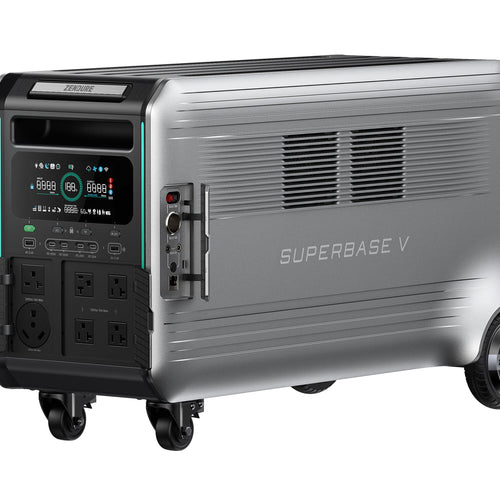

SuperBase V is a game-changing plug-and-play home energy storage system designed to power your entire home. With its customizable energy ecosystem, user-focused design, and innovative technology, SuperBase V sets a new benchmark in home energy storage solutions.
Our Home Panel, equipped with EV outlets, seamlessly integrates SuperBase V into your home’s electrical circuits, delivering power across your entire household. The Zendure app allows you to monitor, manage, and tailor your energy usage effectively. Leveraging Zendure’s Time of Use tools, you can achieve significant reductions in your energy expenses.
Model | SuperBase V4600 |
Battery Type | LiFePO4 |
Battery Capacity |
4.6 kWh (4,608 Wh)
|
Expandable Capacity |
Up to 64 kWh (with additional units/batteries)
|
AC Output |
3,800W (single unit), up to 7,600W (two units)
|
AC Output Voltage | 120V / 240V |
AC Input | 120V / 240V |
Maximum AC Input Power | 3,600W |
Solar Input | 3,000W |
Solar Input Voltage Range | 12V - 150V |
Charge Time (AC) |
Approximately 2 hours (240V input)
|
Charge Time (Solar) |
2 - 3 hours (full charge with 3,000W input)
|
Output Ports |
Multiple AC outlets, USB-C, USB-A, DC, EV outlets
|
Weight |
Approximately 46 kg (101 lbs)
|
Dimensions |
730 x 350 x 385 mm (28.7 x 13.8 x 15.2 in)
|
Operating Temperature |
-20°C to 45°C (-4°F to 113°F)
|
Battery Life |
10 years or more with advanced management
|
Certifications |
CE, FCC, RoHS, UN38.3, MSDS
|
Special Features |
Motorized wheels, plug-and-play design, app integration, GridFlow 2.0 Real-Time Bidirectional Inverting Technology
|
SuperBase V boasts the world's first home energy storage system with semi-solid state batteries, offering over 228Wh/kg. These batteries provide up to 42% more energy per pound compared to lithium iron phosphate (LiFePO4) batteries. Combined with advanced battery management software, the internal battery life can extend beyond 10 years.

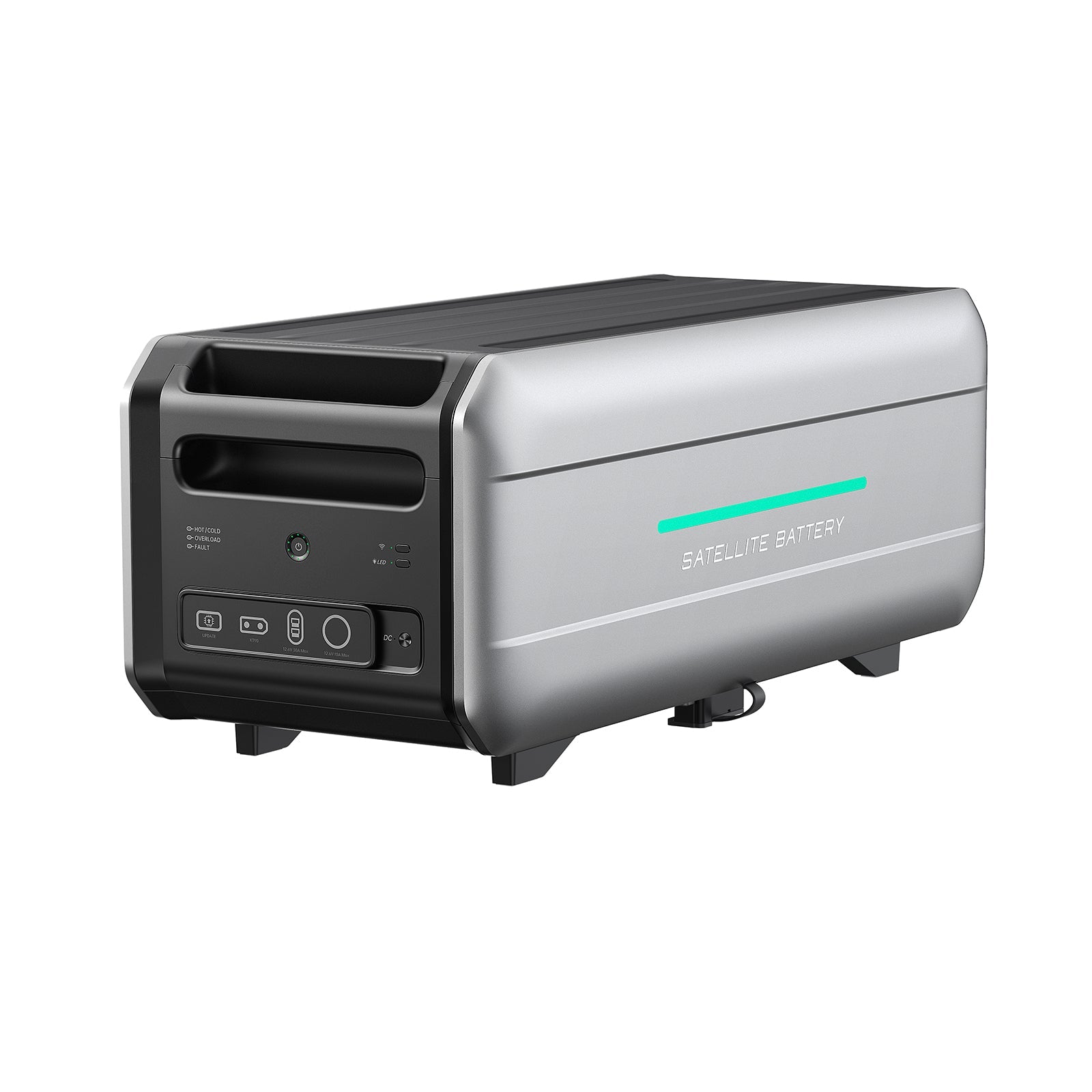

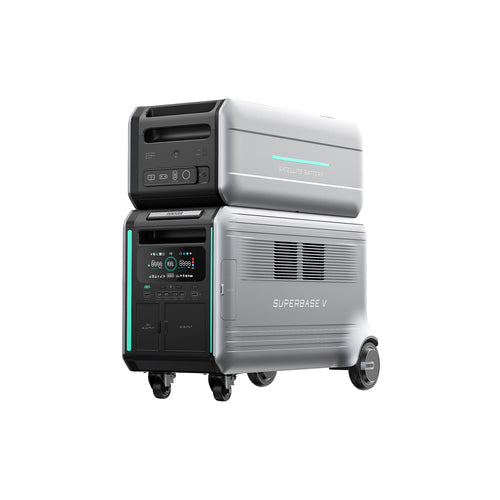

The SuperBase V6400 starts with a 6.4 kWh (6,438Wh) storage capacity. For maximum flexibility, the system can be expanded with up to two base units and eight Satellite Batteries, reaching a total capacity of 64kWh, which is sufficient to power a typical household for a week or longer.
A single SuperBase V can deliver up to 3,800W of power, and connecting two units together boosts the output to 7,600W. This capacity is enough to run essential household appliances like washers, dryers, heaters, and refrigerators.
SuperBase V supports solar charging up to 3,000W, allowing the main unit to fully charge in just 2 to 3 hours. While we provide our own solar panels, SuperBase V is also compatible with various other solar panel brands (12V to 150V), making it easy to incorporate into your existing solar setup.
SuperBase V can be charged from both 120V and 240V AC outlets. When using a 240V outlet, it draws 3,600W, enabling a full recharge in about 2 hours.
With heavy-duty motorized rear wheels, SuperBase V offers true portability. Simply pull the handle, and the system effortlessly moves, even on inclined surfaces.
SuperBase V provides between 3,800W to 7,600W AC output and can recharge up to 6,600W. It supports both 120V and 240V dual voltage outputs, making it the only system capable of delivering both voltages simultaneously from a single base unit, thanks to our patented GridFlow 2.0 Real-Time Bidirectional Inverting Technology. This makes it perfect for both home and on-the-road use.
With two integrated EV outlets (14-50 and 6-20) and up to 12,000W of power distribution, SuperBase V allows for rapid Level-2 charging of two electric vehicles simultaneously. Whether at home or on the go, SuperBase V is built to meet all your energy needs, making it an excellent companion for RV life and outdoor adventures.
