Sol-Ark 15K Hybrid Inverter + HomeGrid 48V 19.2kWh Stack'd Battery LFP Bundle

SKU: Sol-Ark-15K-Homegrid-Bundle
Regular price $18,950.00
Regular price Sale price $18,950.00
Sold out
  • Authorized Distributor
  • FREE SHIPPING For Every Order No Matter How Big Or Small
  • Use Promocode ECO100 To Further Get $100 Off
  • $0 SALES TAX For Every Order (WY is an exclusion)
  • Have Questions? Call our Expert for Answers +1 307 317 7213
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Delivery Information

Delivery information

Payment Methods

Return and Refund Policy

Live Chat

Live Agent

Category: Sol-Ark Kit
View full product details

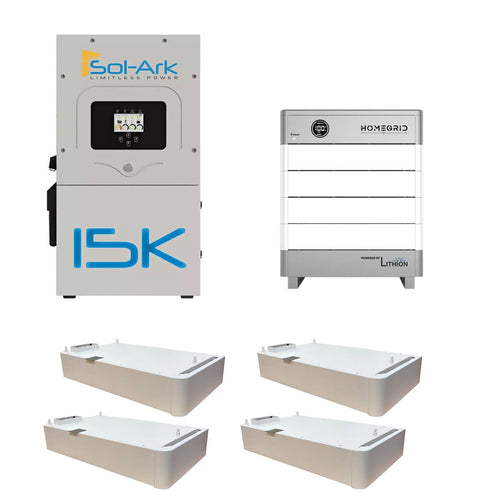

Included in this bundle are:

  1. SOL-ARK-15K All-In-One Hybrid Inverter

  2. HomeGrid Stack'd Series LFP (4 Stack) 19.2 kWh





FEATURES

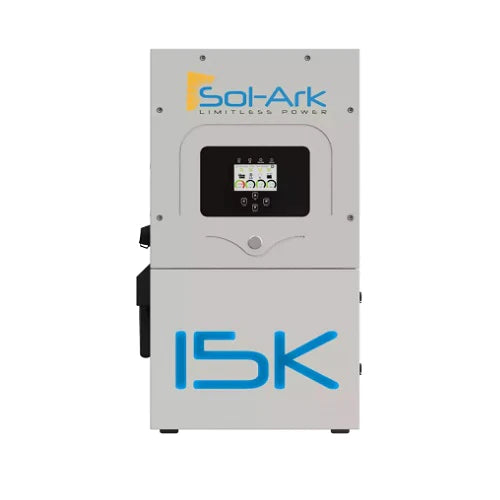

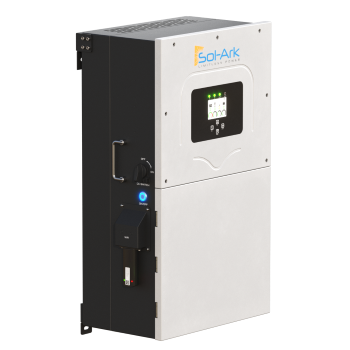

  1. Sol-Ark-15K:

    • All-in-one, pre-wired powerhouse with built-in charge controllers.
    • Packed with standard features for your renewable energy needs.
    • Flexible, efficient, and affordable.
    • Simplified installation keeps costs low.
    • Enjoy peace of mind with a 10-year standard warranty.

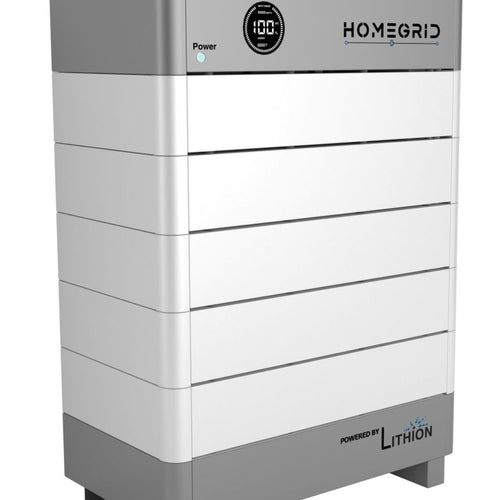

  1. HomeGrid Stack'd Series LFP - 4 Stack:

    • Modular home battery system with 4.8 kWh increments.
    • Provides a capacity range of 9.6 kWh to 38.4 kWh per stack.
    • Allows for easy servicing and future expansion with its modular design.
    • Delivers continuous output of up to 15 kW and a surge capability of up to 24 kW for 10 seconds.
    • Ensures true full-home backup power.
    • Includes 1 base and 4 4.8 kWh modules, totaling a 19.2 kWh capacity.







Sol-Ark-15K SPECIFICATIONS

Model Sol-Ark 15K
Rated Power Output 15,000 Watts (15 kW)
Maximum AC Output 15,000 Watts (15 kW)
Maximum Solar Input Power 18,000 Watts (18 kW)
Maximum Solar Input Voltage 600 VDC
Battery Voltage 48 VDC
Maximum Battery Charging Current 250 Amps
Battery Chemistry Compatible with various battery types
Battery Capacity Scalable, customizable
Grid Input Voltage 120/240 VAC split-phase
Grid Frequency 60 Hz
Efficiency Up to 98%
MPPT Efficiency 99.5%
Operating Temperature Range -20°C to 60°C (-4°F to 140°F)
Cooling Intelligent variable-speed fan
Communication Interfaces Wi-Fi, Ethernet, RS485, Modbus
Monitoring Web-based monitoring portal
Warranty 10 years (extendable)
Certifications UL1741, UL1741SA, CSA C22.2 No. 107.1




HomeGrid Stack'd Series LFP SPECIFICATIONS

Battery Chemistry Technology Lithium Iron Phosphate
Total Energy [kWh] 9.6, 14.4, 19.2, 24, 28.8, 33.6, 38.4
Continuous Power Output [kW] 9.6, 14.4, 15, 15, 15, 15, 15
Capacity [Ah] 200, 300, 400, 500, 600, 700, 800
Nominal DC Voltage [V] 48
DC Voltage Range [V] 46-56
Recommended Charge Current [A] 200, 300, 312.5, 312.5, 312.5, 312.5, 312.5
Max Discharge Current (Continuous) [A] 200, 300, 312.5, 312.5, 312.5, 312.5, 312.5
Max Pulse Current DC [A] 300, 350, 500, 500, 500, 500, 500
Charge Temperature [°F] 32-113
Discharge Temperature [°F] 14-140
Dimensions [W x D x H, inch] 29 x 15.75 x 25.25, 30.5, 35.75, 41, 46.25, 51.5, 56.75
Weight [lbs] 304, 412, 520, 628, 736, 844, 952
Enclosure Rating IP55
Mounting Options Floor Standing
Certificates UL 1642, UL 1973, UN 38.3
Warranty 10 Years
Service Plan 20 Years Serviceable
Scalability Units in parallel (384 kWh)
Communication CAN/RS485
Efficiency >98%
Compatible Inverters Sol-Ark, Schneider, SMA, Growatt, Solis, Sofar, Sermatec, Victron, Studer, Goodwell, Outback
