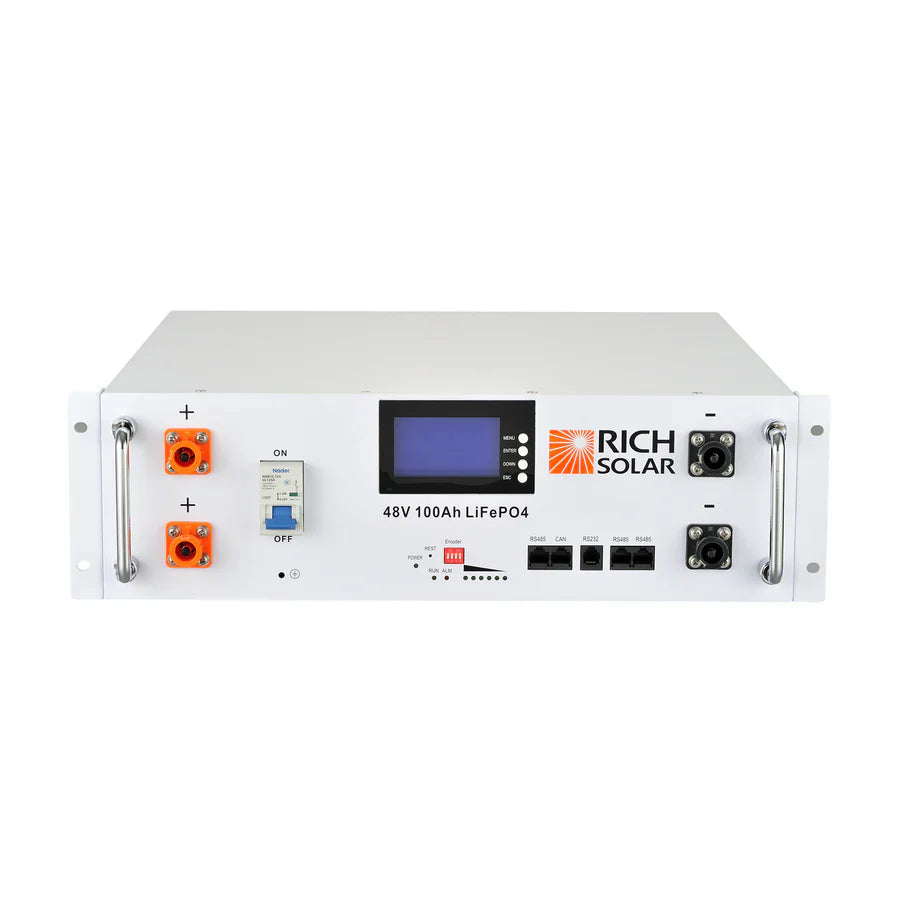

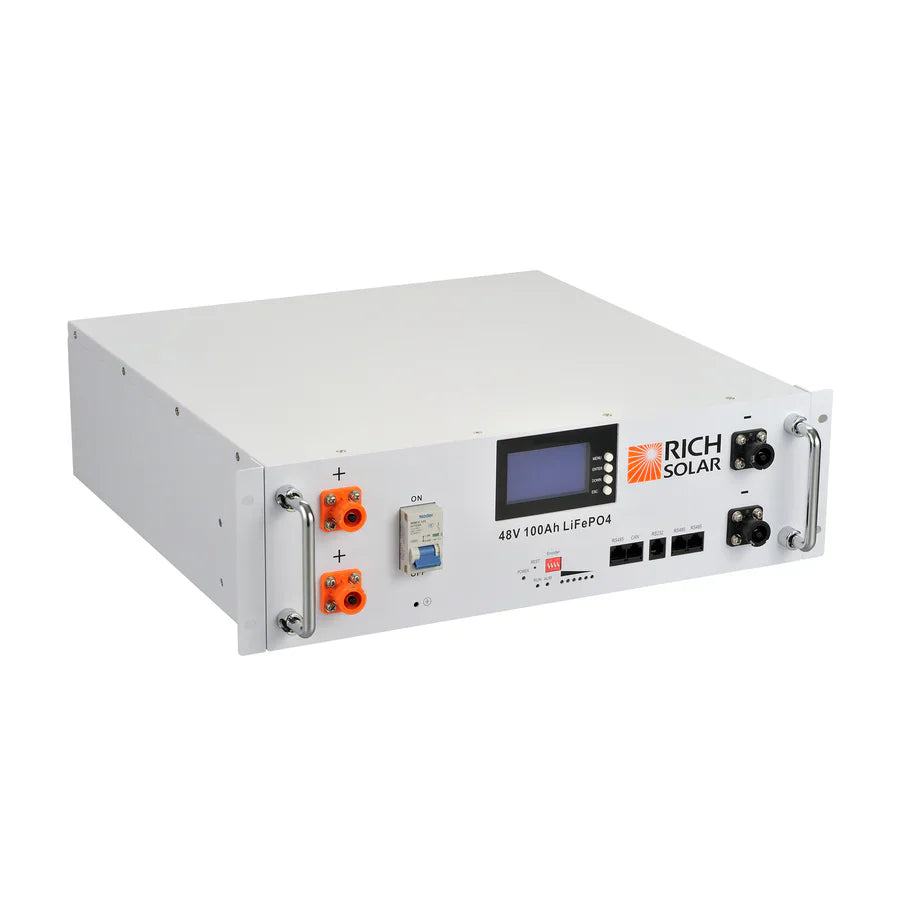

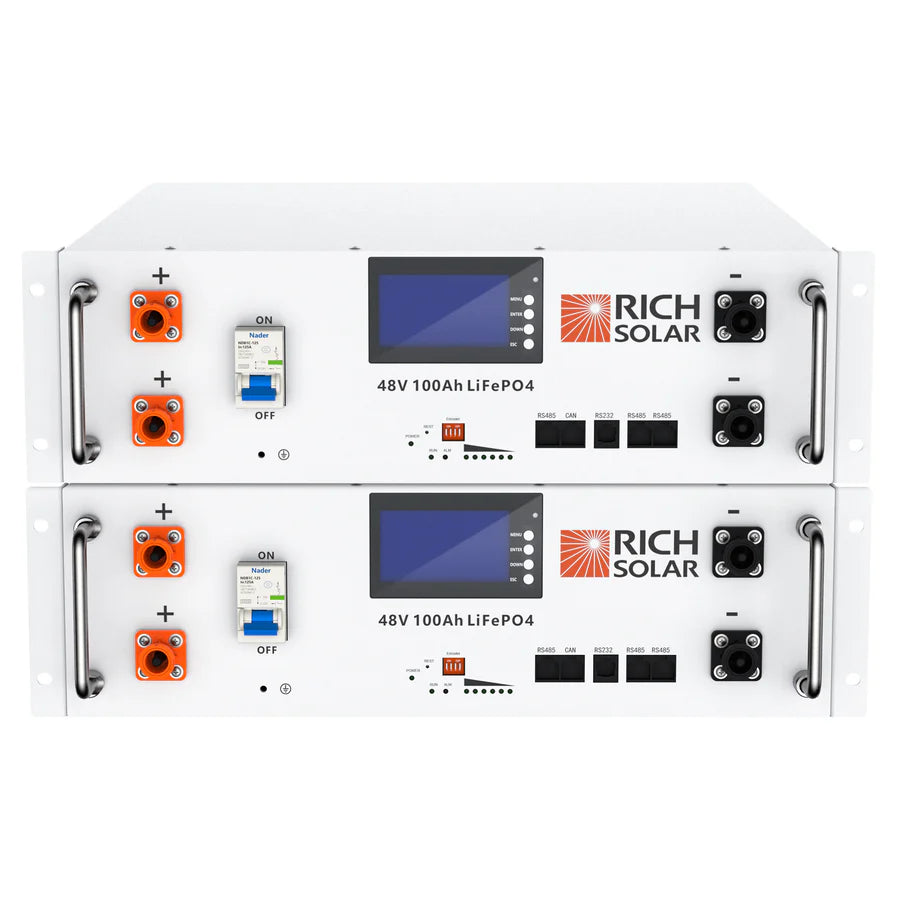

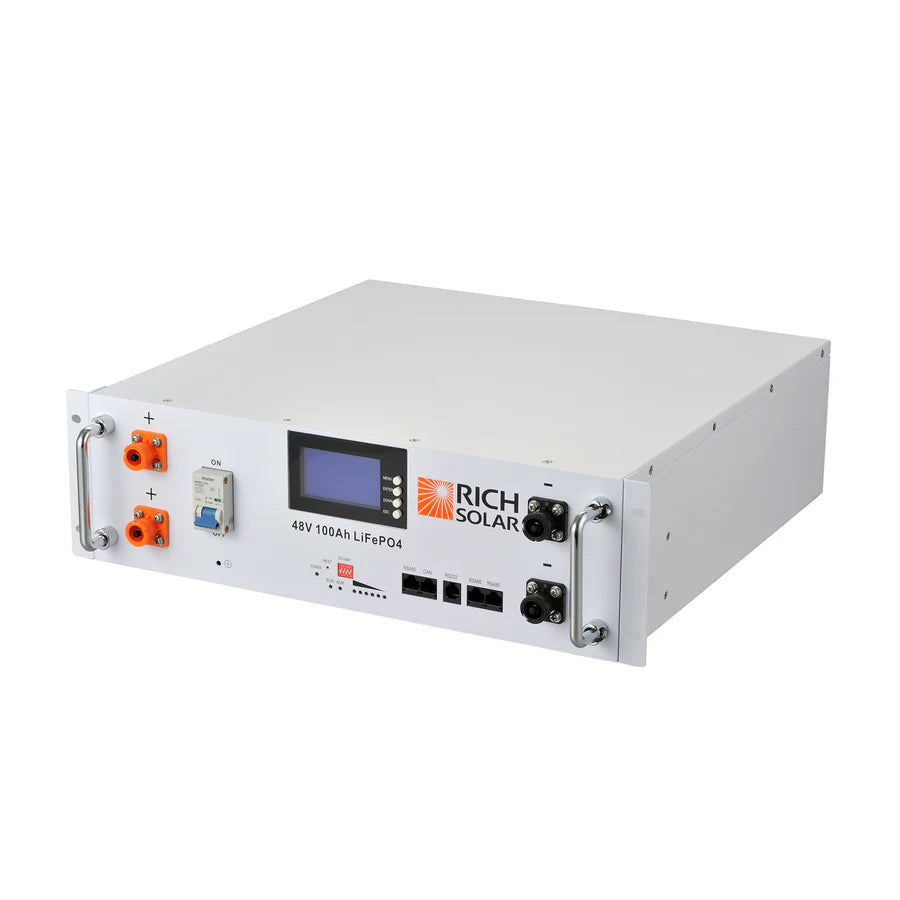

The RICH SOLAR 48V 100Ah LiFePO4 Lithium Iron Phosphate Battery (Alpha 5 Server) offers an exceptional 7,000 cycles and a 20-year lifespan, making it an ideal solution for long-term energy storage. The LiFePO4 technology provides superior thermal and chemical stability, ensuring increased safety, efficiency, and durability compared to other battery types. This lightweight, compact battery is designed for easy maintenance and reliable performance in various applications.
Nominal Voltage | 48V |
Nominal Capacity (at 0.5C, 77°F) | 100Ah |
Minimum Capacity (at 0.5C, 77°F) | 99.5Ah |
Expected Cycle Life |
>7000 cycles with 1C charge and discharge rate, at 77°F, 80% DOD
|
Charge Method |
Smart charger, constant current, constant voltage
|
Operating Voltage | 48V |
Capacity | 100Ah |
Energy | 4800 Watt Hours |
Charge Voltage Range |
52.0 - 52.5V (Max 52.5V)
|
Continuous Charge Current | 100A |
Continuous Discharge Current | 100A |
Over Voltage Shutdown | 52.5 +/- 0.2V |
Discharge Cut-off Voltage | 42V +/- 0.5V |
Self Discharge (stored at 50% SOC) | <3%/month |
Waterproof | IP65 |
Charge Temperature | 32°F to 113°F |
Discharge Temperature | -4°F to 122°F |
Storage Temperature | -4°F to 122°F |
BMS High Temperature Cut-off | 149°F |
BMS Low Temperature Cut-off | 32°F |
Battery Dimensions (L x W x H) | 19 x 17.7 x 5.2 in |
Battery Weight | 42kg / 92.6 lb |

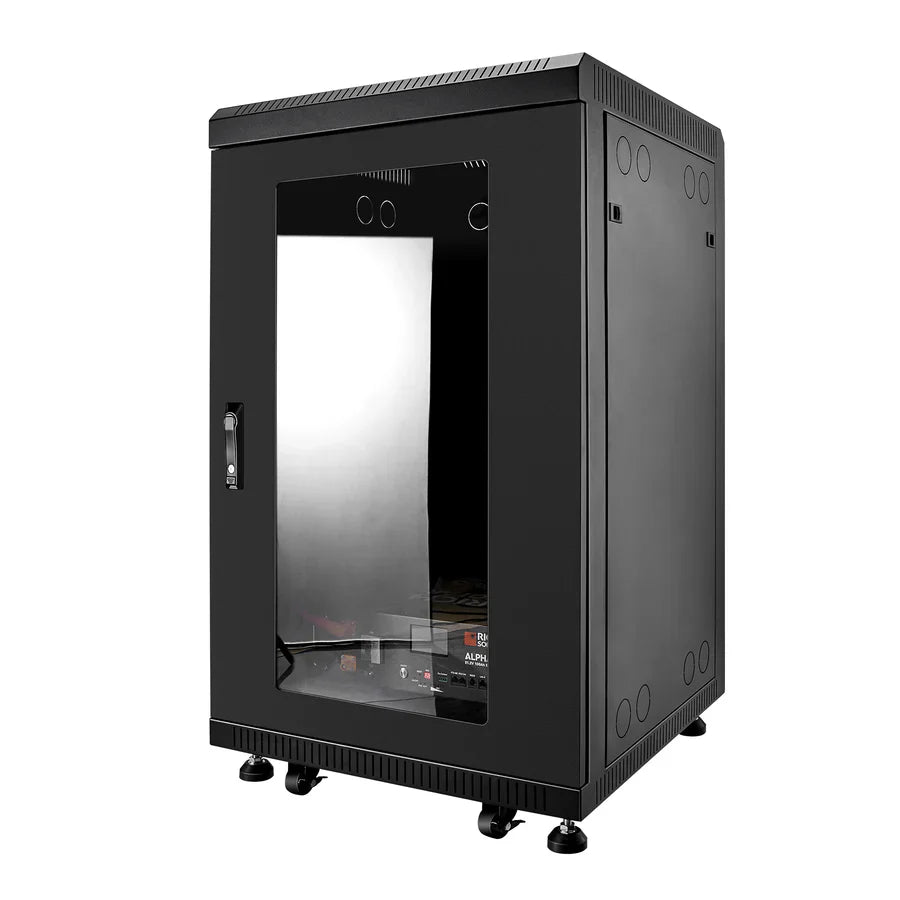

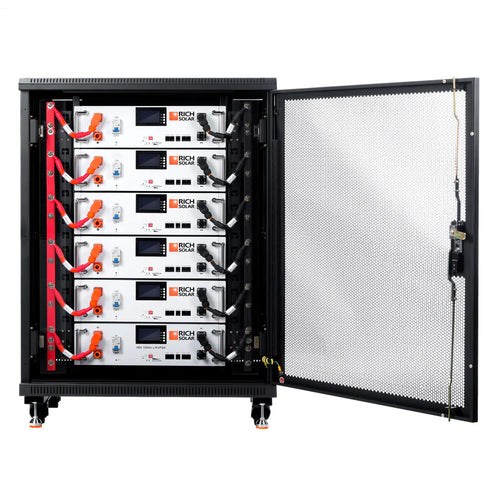

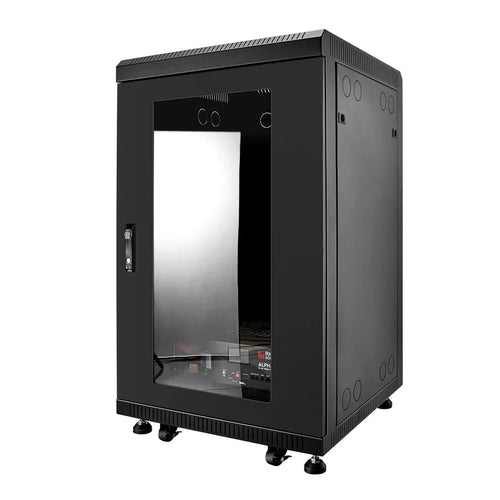

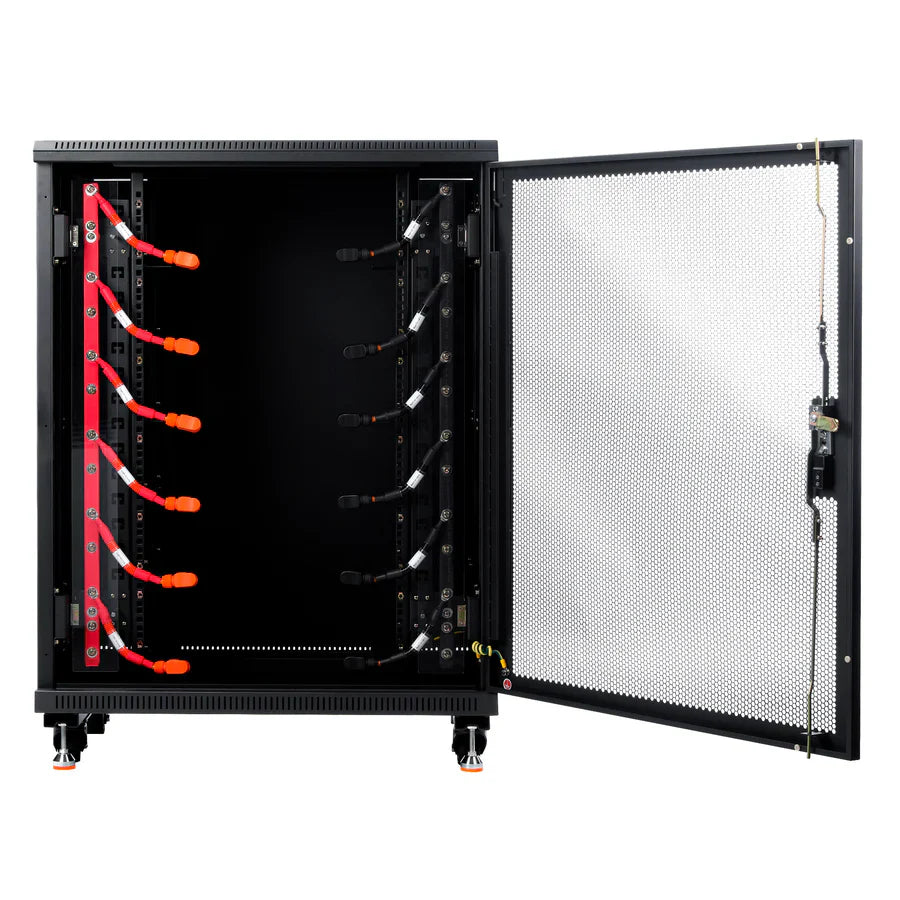

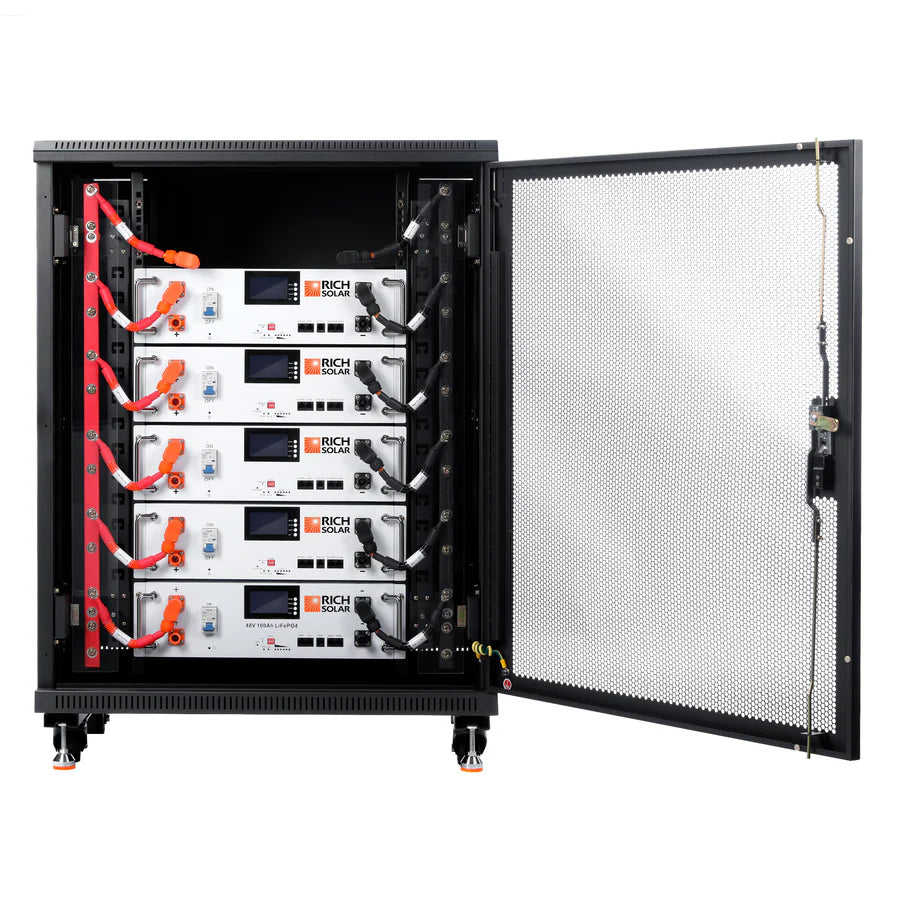

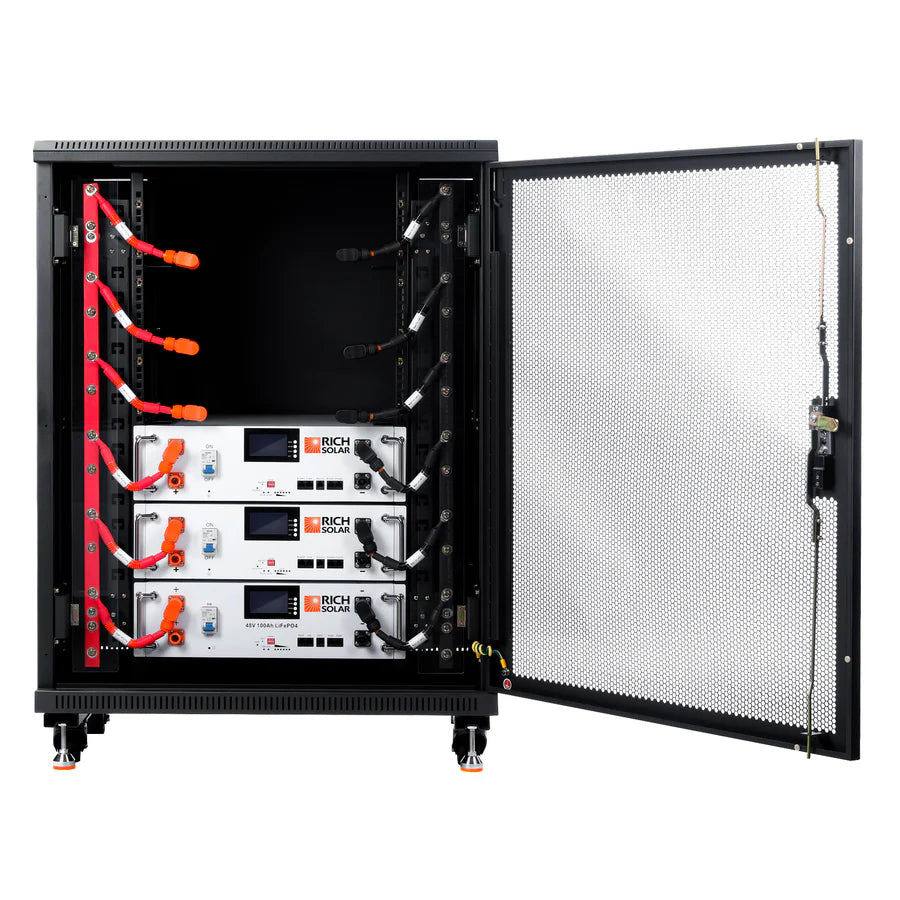

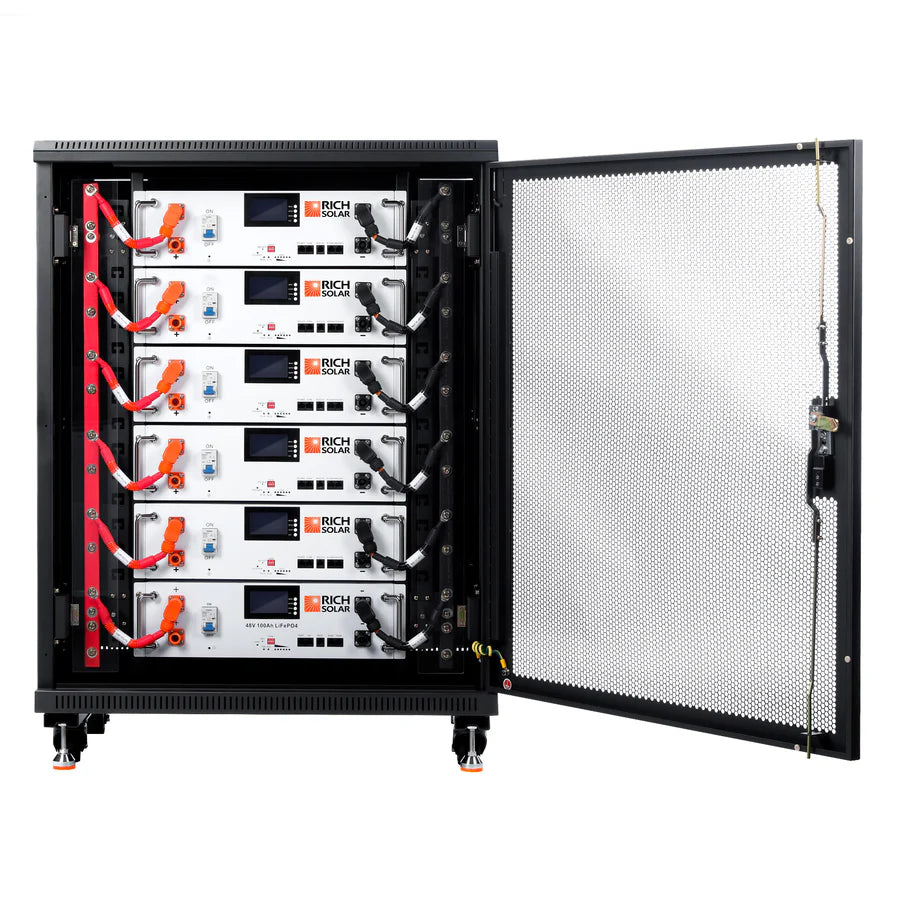

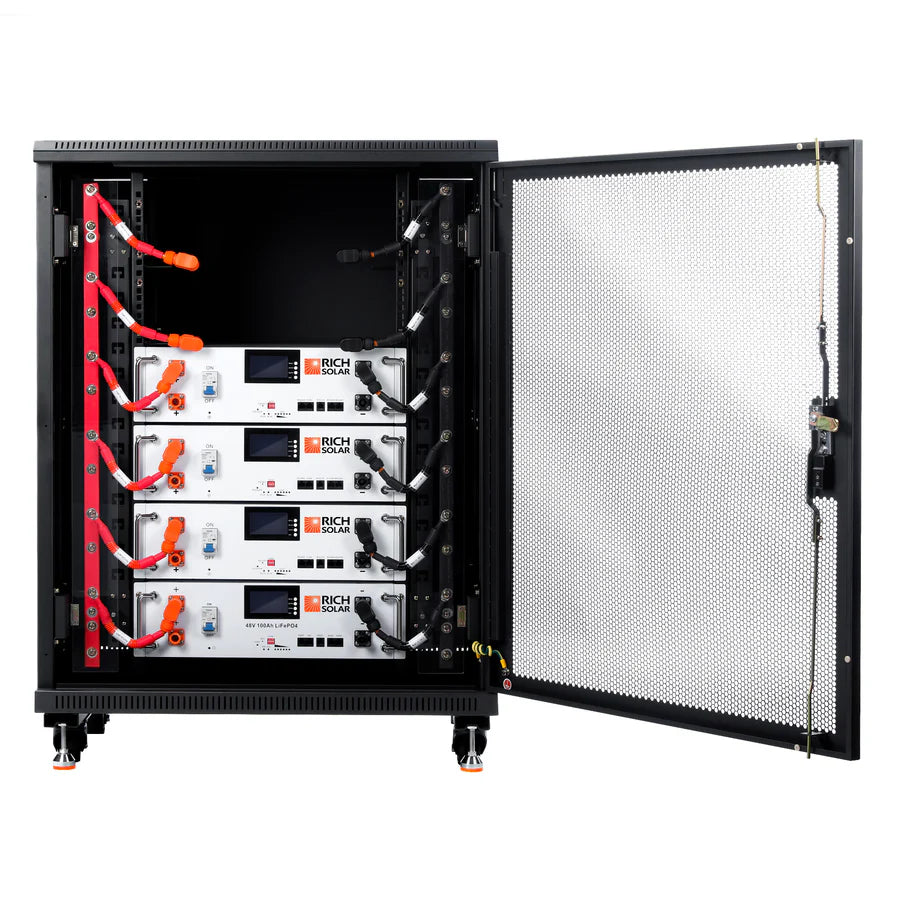

Battery Server Rack Dimensions (L x W x H) | 27.6 x 27.6 x 44 in |
Server Rack Weight | 196 lb |
Server Rack Thickness |
Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate 1.0mm, L-shaped bracket 2.0mm
|
Server Rack Material |
High-quality cold-rolled steel plate
|
Protection Level | IP20 |
Over Charge Detection Voltage | 3.9 +/- 0.05V |
Over Charge Detection Delay Time | 0.96 – 1.4s |
Over Charge Release Voltage | 3.80 +/- 0.05V |
Maximum Charge Voltage | 3.65 +/- 0.05V |
Over Discharge Detection Voltage | 2.0V +/- 0.05V |
Over Discharge Detection Delay Time | 115-173ms |
Over Discharge Release Voltage | 2.3V +/- 0.10V |
Over Current Protection Delay Time | 9 +/- 2ms |
Over Current Release Condition | Cut load |
Polarity Reverse Protection | Yes |
Short Circuit Protection | Yes |

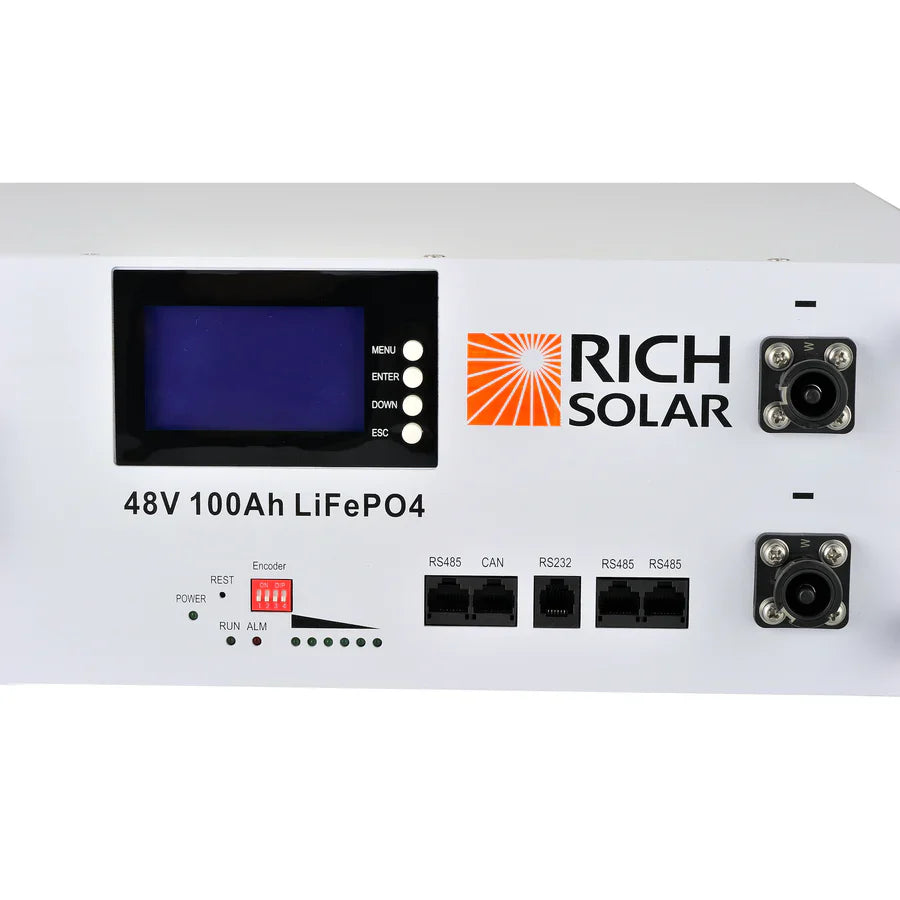

Communication Ports | RS485 / CAN |
Warranty |
10 Year Manufacturer Defect
|
