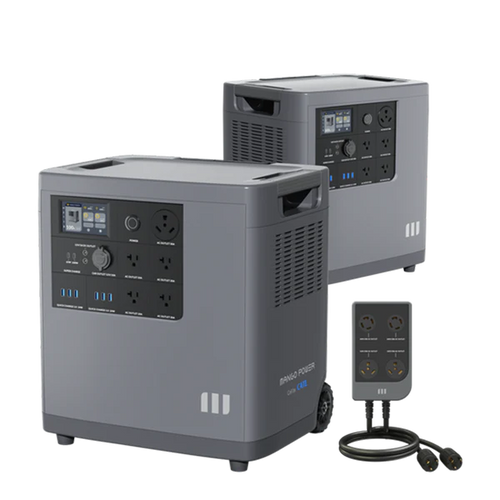

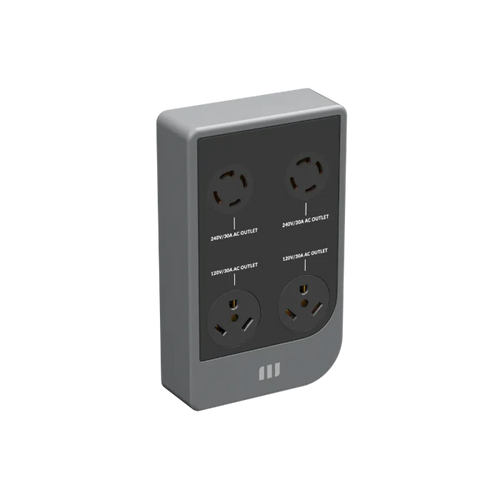

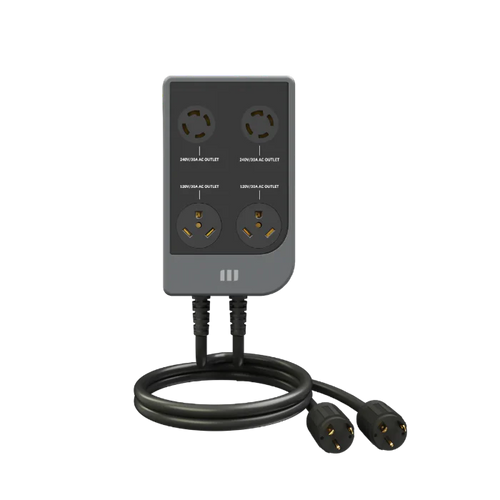

With the mSocket Pro* accessory, the Mango Power E becomes a high-powered split-phase generator capable of delivering 240V output so you can run large power-consuming appliances such as heaters, dryers, water pumps, and more. *The mSocket Pro sold separately.
The Mango Power E boasts ultra-durable LFP battery cells that are also used in the world's top-performing EVs. These cells not only charge quickly but also have a longer lifespan and greater reliability compared to traditional NCA/NCM battery cells. Even after continuous use, which could span up to five years of constant charging, discharging, and recharging, the Power E's battery cells maintain their peak performance and remain as effective as they were when they were first used.
CATL's batteries can withstand temperatures from -20°C to 60°C. This allows our power stations to operate smoothly even in extreme cold conditions.

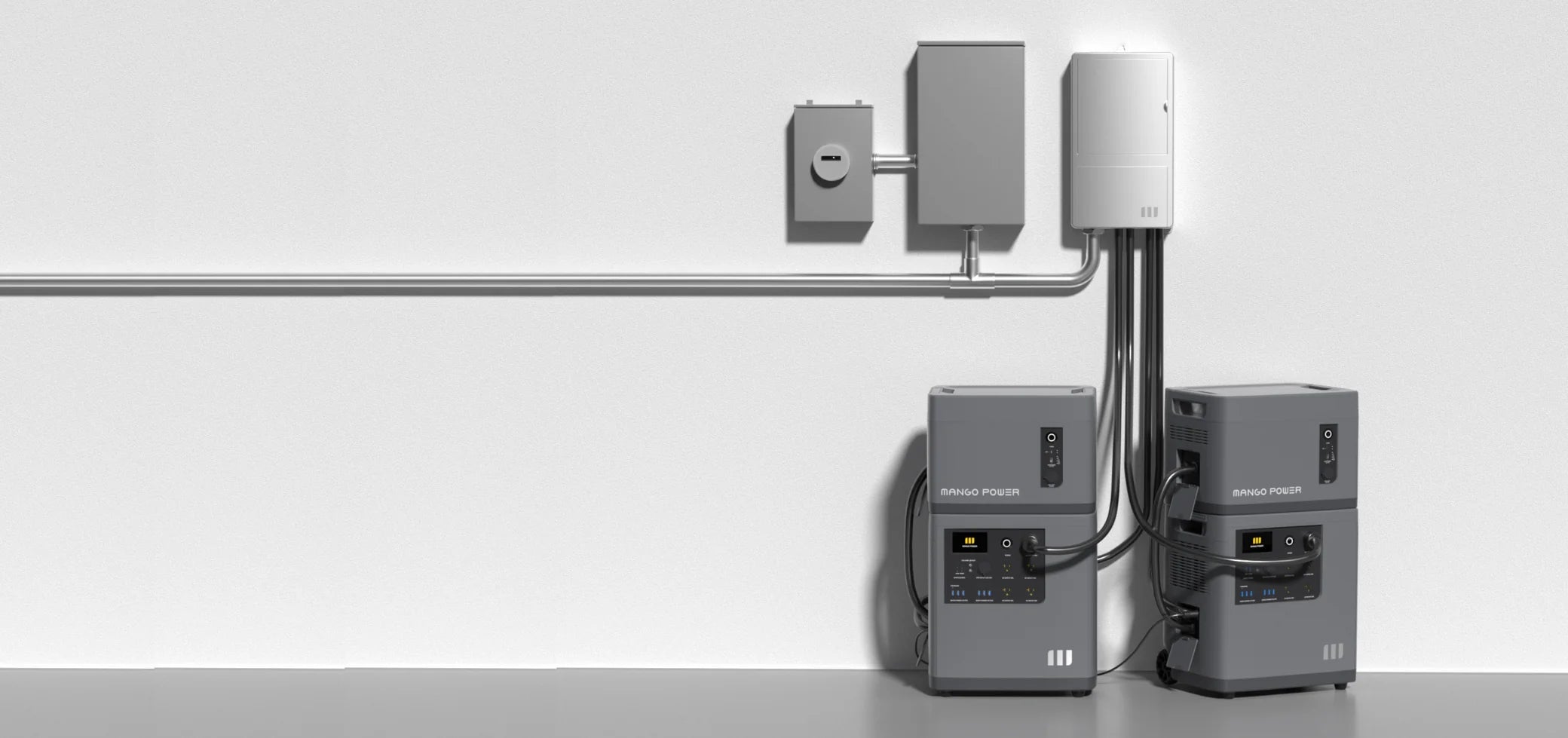

By integrating Mango Power’s ecosystem into your home circuit*, you guarantee that at the moment a blackout strikes, you enjoy power security and grid independence with a seamless, uninterrupted flow of electricity powering your lights, refrigerators, computers, and any other essential devices you have plugged in. *Home circuit backup requires the mPanel accessory, sold separately.

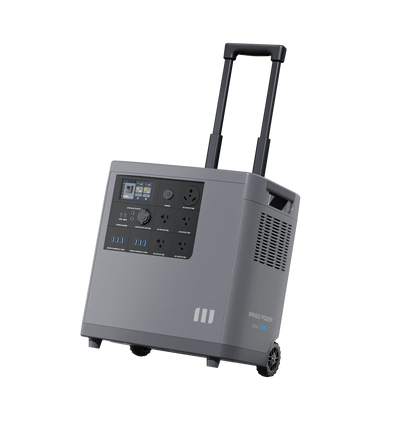

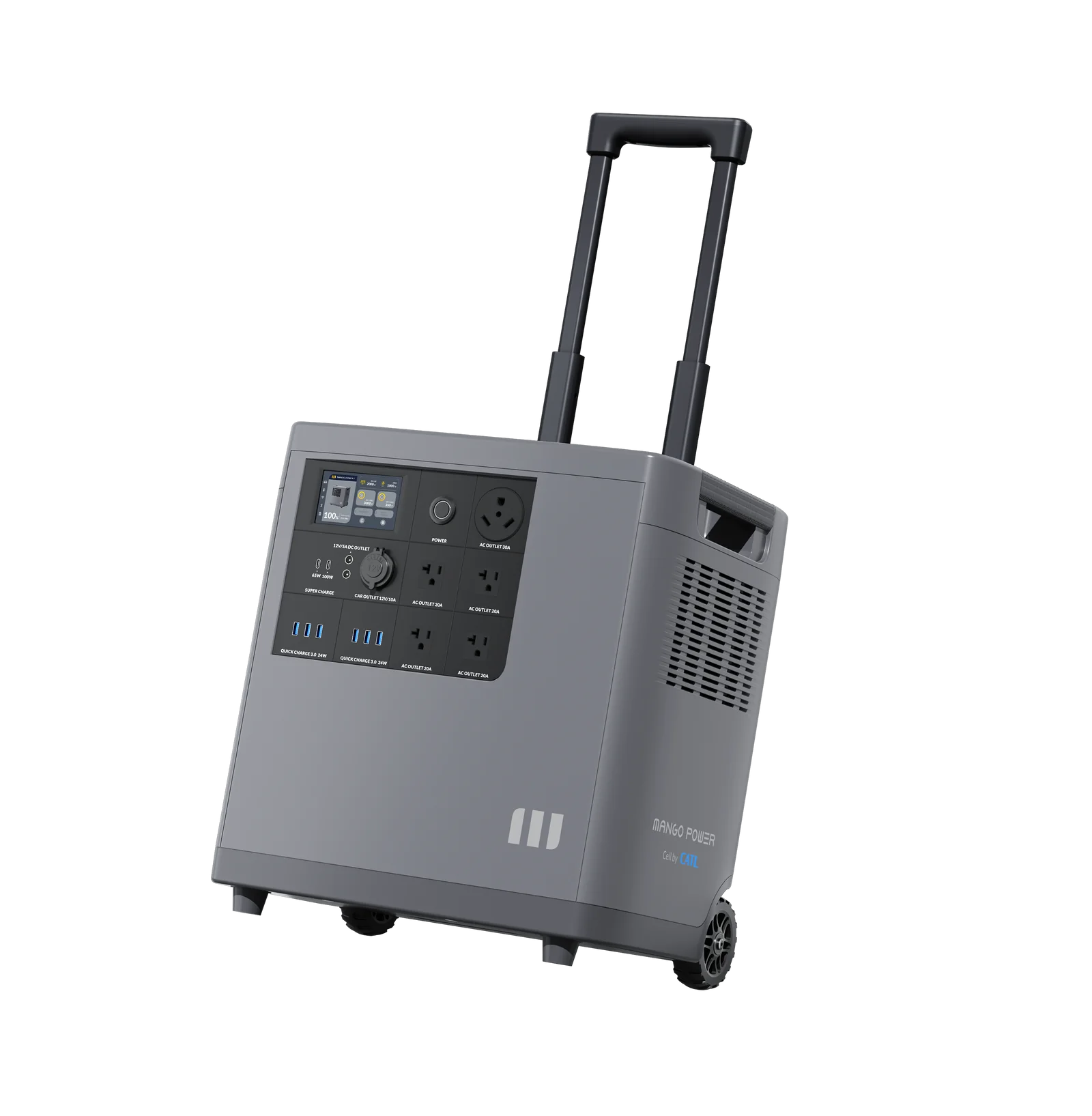

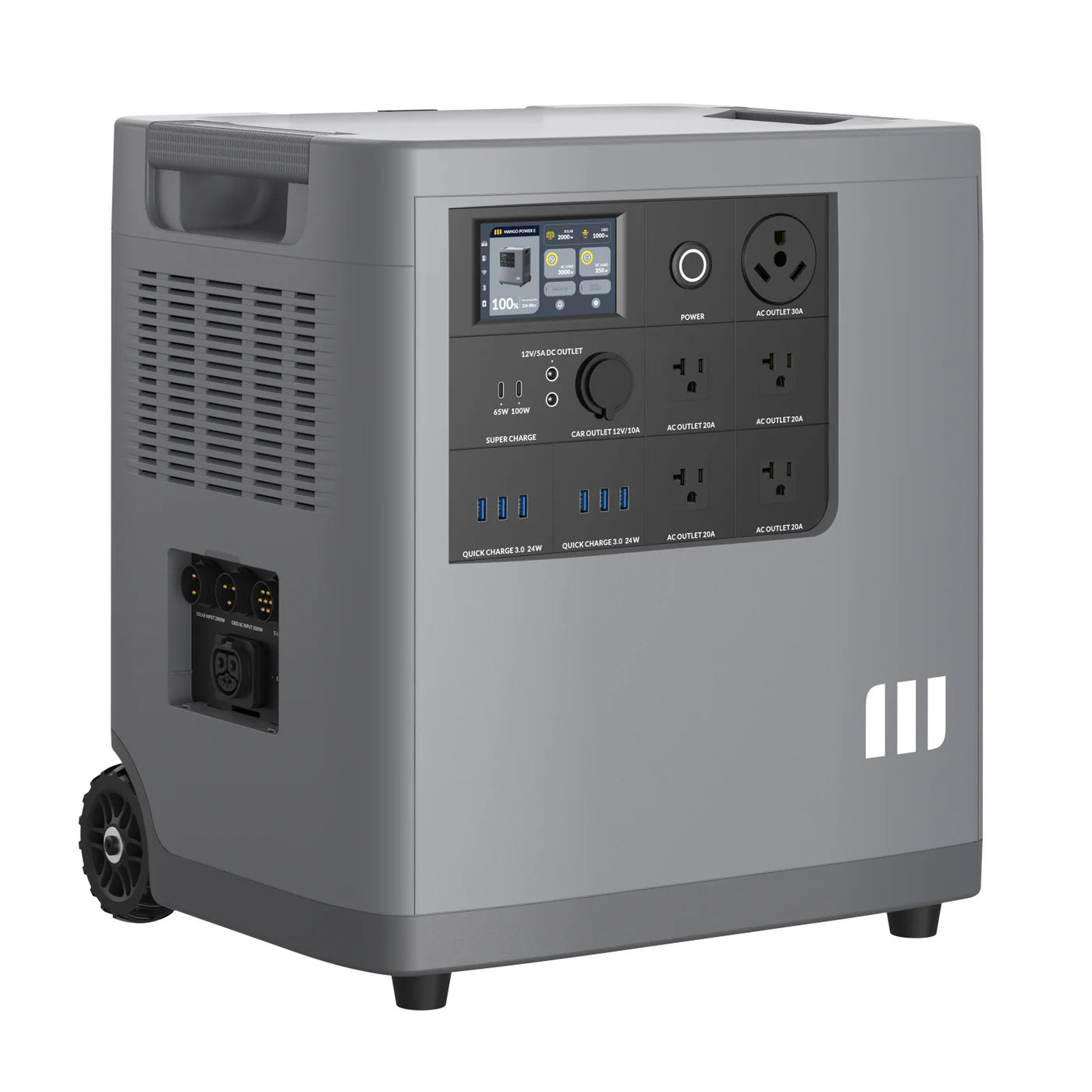

Product | Mango Power E | Mango Power E Battery |
Net weight | 100 lbs (45.4kg) | 73 lbs (33.18kg) |
Size | 17.8×13.6×19.4 inches (452x345x494 mm) | 17.8×13.6×12.5 inches (452x345x318 mm) |
Working temperature | Charging: -20°C~60°C, discharging: -30°C~60°C | Charging: -20°C~60°C, discharging: -30°C~60°C |
Warranty | 5 years | 5 years |
Certificates | Meets US and international safety and EMI standards | Meets US and international safety and EMI standards |
Quick charge | Recharge to 80% in 1 hour, 100% in 1.5 hours | |
Running noise | <40dB under no-load, <51dB under full-load | |
IP level | IP21 | IP21 |
Capacity expansion | Can expand capacity by one E battery to 7.06kWh | |
Power expansion | Can expand power by two to 6kW | |
240V split phase | With mSocket Pro or mPanel (sold separately), can output 240V split phase, 6000W | |
Home backup | Support (needs mPanel) | |
Battery |
||
Battery capacity | 3.53 kWh | 3.53 kWh |
Cell chemistry | CATL LFP | CATL LFP |
Life span | Capacity retention >70% after 6000 cycles (@25℃, +0.5C/-0.5C) | Capacity retention >70% after 6000 cycles (@25℃, +0.5C/-0.5C) |
Battery management systems | Over voltage, overload, over temperature, short circuit, low temp, low voltage, overcurrent protection | Over voltage, overload, over temperature, short circuit, low temp, low voltage, overcurrent protection |
Max charging rate | Up to 1.1C | Up to 1.1C |
Input |
||
Charging method | AC wall outlet, solar panel, EV charger, generator | AC wall outlet, AC adapter |
AC charging | Max 3000W | Max 3000W (connected to MPE) / AC adapter |
Solar charging | Max 2000W (60V-150V) | |
EV AC charging spot | Adapter needed | |
Generator | ||
Inverter |
||
Rated AC output power | 3000W, 120V AC, 60Hz | |
Power of over-load | 3150W<load≤3750W, 5min; 3750W<load≤4500W, 60s; 4500W<load≤4800W, 10s; 4800W<load, <40ms | |
MPPT trackers | 1x, supports roof and portable panels | |
Inverter efficiency | Up to 88% | |
Output |
||

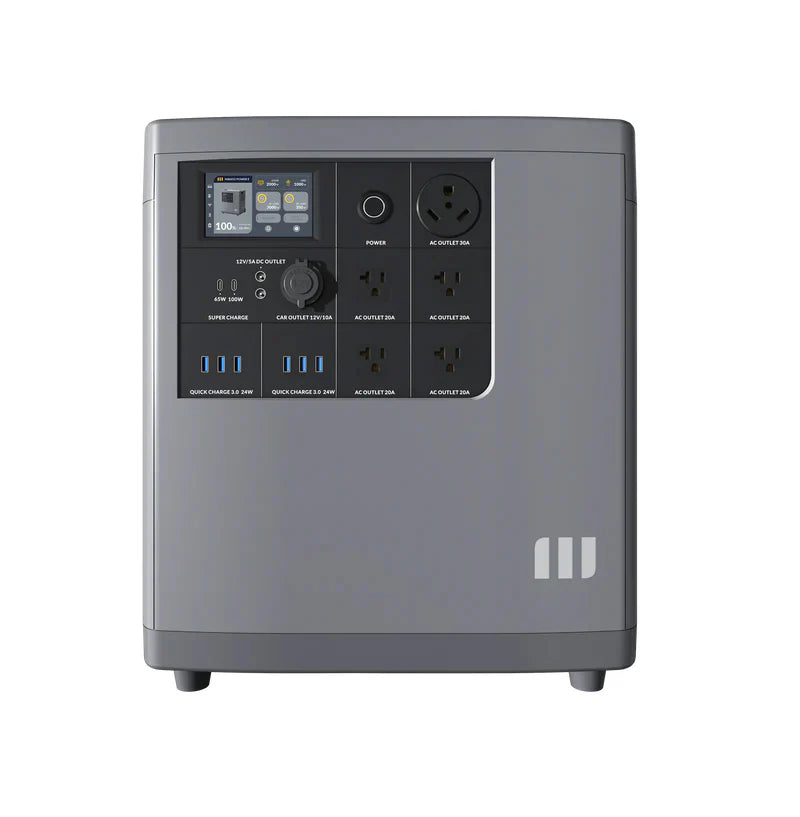

Output ports | 16 | 3 |
AC output | 4 x 20A | |
USB-A | 6 x QC 3.0 27W | 1 x QC 3.0 27W |
USB-C | 1 x PD 65W + 1 x PD 100W | 1 x PD 100W |
Car power output | 12V / 10A | 12V / 10A |
DC5521 output | 2 x 12V / 5A | |
AC RV port | 30A | |
Smart Control |
||
Connection | Bluetooth and Wi-Fi | |
App remote control | Yes | |
OTA upgrade | Yes | |
USB firmware update | Yes | |
Customized mode | Backup / economical / time-based control mode | |
Smart measurement | Yes | |
Energy and carbon report | Yes | |
Smart notifications | Yes | |
Screen |
||
Size | 4.3 inches | |
Touch screen | Yes | |
Resolution | 480 x 800 | |
Colors | 16.7M | |
Safety |
||
Smart self-check system | Yes |
